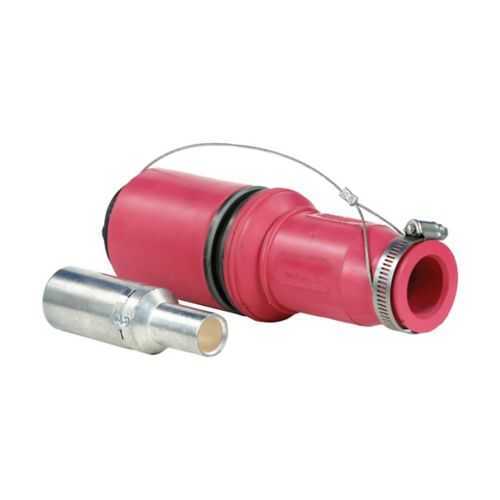

Eaton Crouse-Hinds E1049X-89 Plug - Zone 2 rated
Part Number: E1049X-89
Quick Summary
E1049X-89 is a rugged plug designed for high-amperage power distribution in hazardous locations. Engineers often struggle with connectors that fail safety tests, withstand harsh environments, and complicate maintenance schedules. This Roughneck plug delivers Zone 2 classification under IECEx/ATEX and NEC/CEC, along with IP54 protection and a NEMA 3R rating, enabling safe operation across global sites. Its 313 kcmil cable compatibility, 1000 Vac/dc rating, and copper contacts ensure low contact resistance and durable performance. The rubber housing adds chemical resistance and field reliability, while hexagon crimp or solder connections simplify installation for facilities seeking reliable, compliant, and cost-effective power connections. Typical users include plant engineers, panel builders, and service teams aiming to reduce downtime through proven rugged hardware.
Product Information
Extended Description
E1049X-89 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 636A continuous, 313 kcmil, Gray, Hexagon crimp or solder, Copper contacts, Female, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-89
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
5.5 lb
UPC
662275962294
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
313 kcmil
Amperage Rating
Up to 636A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Gray
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Feature: Up to 636A continuous rating with 313 kcmil cable compatibility. Business Impact: Supports high-power loads without paralleling connectors, reducing footprint and installation time. Application: Heavy equipment in chemical plants and refineries. Feature: Zone 2 rated, IP54, and NEMA 3R protection. Business Impact: Enhances safety and reliability in hazardous environments, lowering risk of environmental ingress and equipment exposure. Application: Global sites with variable weather and chemical exposure. Feature: Copper contacts with hexagon crimp or solder connection. Business Impact: Low contact resistance and durable, vibration-resistant connections that minimize downtime. Application: Critical power feeds to motors and drives. Feature: Rubber enclosure with robust mechanical integrity. Business Impact: Superior chemical resistance and ruggedness, extending service intervals and reducing maintenance costs. Application: Outdoor or wash-down areas in plant floors. Feature: Clear compatibility with Roughneck connectors and 313 kcmil cabling. Business Impact: Streamlines procurement and spares planning, improving installation consistency. Application: System integrators and maintenance teams deploying high-amperage networks.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-89
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-89?
Enquire Now
FAQs
The E1049X-89 supports up to 636A continuous and accommodates 313 kcmil conductors, making it suitable for high-current feeders in Zone 2. It uses copper contacts and a rubber housing to maintain performance under vibration and chemical exposure, ensuring voltage integrity up to 1000 Vac/dc. This combination helps reduce thermal stress and prevents premature connector failure in demanding environments.
Yes. The E1049X-89 is designed for both hexagon crimp and solder connections, offering flexible field installation. Copper contacts ensure low resistance, while the rugged rubber body provides protection in hazardous settings. This dual compatibility simplifies lifecycle maintenance and supports standardized installation practices across diverse projects.
The plug carries Zone 2 compliance under IECEx/ATEX, NEC/CEC hazardous area ratings, and IP54 ingress protection, along with a NEMA 3R enclosure rating. These certifications support safe operation in hazardous and classified locations and align with global standards for electrical equipment used in industrial facilities.
When installing the E1049X-89 in hazardous locations, ensure proper crimping or soldering of the copper contacts, select the correct 313 kcmil cable, and verify 1000 Vac/dc ratings are suitable for the circuit. Use the Zone 2 rated hardware in well-ventilated areas to minimize risk, and follow standard lockout/tagout procedures during maintenance to sustain safety and compliance.
The Roughneck E1049X-89 delivers higher amperage capability, robust IP54/NEMA 3R protection, and Zone 2 certification, which together reduce unplanned downtime and maintenance interventions in hazardous areas. Copper contacts and reliable connection methods lower resistance and heat buildup, extending service life, lowering replacement costs, and improving overall equipment availability and safety.
