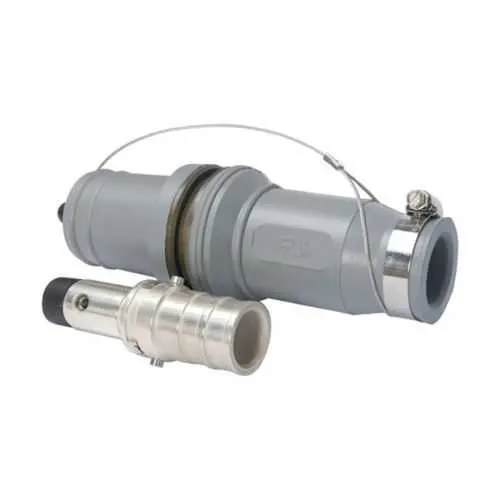

Eaton Crouse-Hinds E1049X-9 Roughneck plug - Zone 2
Part Number: E1049X-9
Quick Summary
Eaton Crouse-Hinds Roughneck E1049 plug is a rugged, high-amperage connector designed for heavy electrical installations in hazardous locations. In demanding environments, maintenance windows are tight and terminations must endure harsh conditions without frequent service. Key certifications drive safety and compliance: Zone 2 hazardous rating, IP54 ingress protection, and NEC/CEC IECEx/ATEX standards. Designed for 535 kcmil conductors and up to 898 A continuous, it streamlines sourcing and reduces the number of distinct parts across projects. This translates to safer installations, faster field work, and lower lifecycle costs while supporting reliable uptime in critical industrial operations.
Product Information
Extended Description
E1049X-9 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 898A continuous, 535 kcmil, Purple, Hexagon crimp or solder, Copper contacts, Male, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-9
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
1 lb
UPC
662275964595
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
535 kcmil
Amperage Rating
Up to 898A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Purple
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
Feature: High amperage capability up to 898 A continuous. Business Impact: Enables direct connection of large motors and feeders without stacking multiple connectors, reducing assembly complexity and potential failure points. Application: Power distribution in mining, chemical plants, and heavy equipment where reliability matters. Feature: 535 kcmil cable size compatibility. Business Impact: Minimizes the need for adapter kits and extra terminations, cutting part variety and inventory costs. Application: Cable assemblies in harsh industrial environments with large conductors. Feature: Zone 2 rated and NEC/CEC IECEx/ATEX compliant. Business Impact: Provides regulatory assurance and safer operation in hazardous locations, lowering risk of noncompliance penalties. Application: Safe integration in Class I, Division 2 and Zone 2 facilities. Feature: IP54 ingress protection. Business Impact: Protects against dust ingress and water splashes, extending service life in outdoor or semi-enclosed settings. Application: Outdoor enclosures, warehouse yards, and damp production floors. Feature: Hexagon crimp or solder termination with copper contacts in a rubber housing. Business Impact: Flexible field installation and durable electrical connections that resist vibration and corrosion. Application: Quick, reliable terminations in demanding environments. Feature: NEMA 3R compatibility and rugged housing. Business Impact: Weatherproof performance and rugged durability reduce maintenance cycles. Application: Outdoor installations and exposed equipment. Feature: Precise dimensions (8.5 in length, 2.16 in × 2.16 in) and weight (1 lb). Business Impact: Predictable fit and easy handling during installation or retrofit projects. Application: Panel mounting and service exchanges in constrained spaces.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-9
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-9?
Enquire Now
FAQs
The E1049X-9 is ideal for Zone 2 hazardous locations requiring high current capacity and robust environmental protection. It supports 535 kcmil conductors with hex crimp or solder terminations for up to 898 A continuous, making it suitable for large feeder connections and heavy machinery in chemical plants, refineries, and mining operations.
This plug meets NEC/CEC and IECEx/ATEX standards with Zone 2 hazardous ratings, IP54 ingress protection, and a NEMA 3R enclosure rating. Area classification is Hazardous/Classified Locations, backing safe operation and regulatory alignment for equipment deployed in restricted zones.
The connector is designed for 535 kcmil cables and uses copper contacts with hexagon crimp or solder termination. This combination provides a secure, low-impedance connection suitable for high-current applications while offering field-installation flexibility.
Yes. With IP54 protection and a NEMA 3R-rated rubber housing, the E1049X-9 is engineered for durability in outdoor or damp environments, helping to resist dust and water exposure during harsh operating conditions.
Comprehensive installation and maintenance resources are available, including IF 1778 instruction sheets and literature on Roughneck plugs and connectors. These documents support correct crimping or soldering procedures, proper sealing, and safe termination practices to minimize downtime.
