E17 Condulet Form 7 Outlet Body - NEMA 12 rating

Part Number: E17
E17
Manufacturer
Eaton Crouse-Hinds
Part number
E17
Category

Quick Summary

E17 Condulet Form 7 conduit outlet body provides reliable 1/2 inch wiring for control panels and enclosures. This solution reduces installation delays by delivering secure wiring access and consistent pull paths in crowded spaces. NEC/CEC compliance and a NEMA 12 rating ensure safe, durable performance in ordinary locations, while the Feraloy iron alloy construction supports long service life. By leveraging this Eaton Condulet, engineers gain predictable wiring layouts, reduced rework, and lower total cost of ownership. The design also aligns with common conduit systems and widely available installation literature, facilitating faster procurement and simpler maintenance.

Product Information

Extended Description

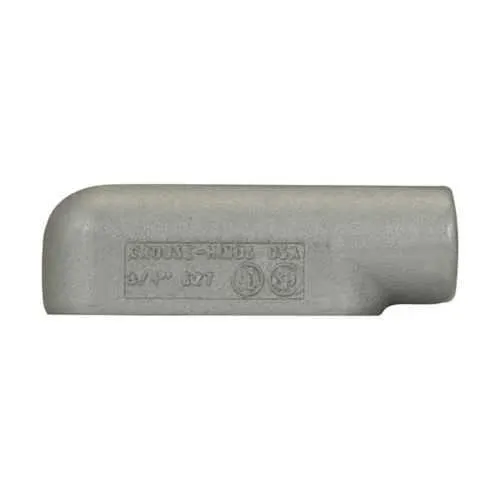

E17 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, E shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
E17
Product Length/Depth
4.56 in
Product Height
1.38 in
Product Width
1.38 in
Product Weight
0.78 lb
UPC
782274246307
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
E
Trade size
1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page Condulet Form 7 Conduit Outlet Bodies and Covers UL certification Condulet Form 7 Conduit Outlet Bodies and Covers UL certification IF 863 - Conduit Body Wire Pulling IF 863 - Conduit Body Wire Pulling Condulet Form 7 Industrial Grade Conduit Bodies Condulet Form 7 Industrial Grade Conduit Bodies Industrial Fittings Bend Radius and Cubic Capacity Chart Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Feraloy iron alloy construction provides robust mechanical strength and enhanced corrosion resistance. Business Impact: Lower maintenance costs and fewer field replacements in harsh or damp environments. Application: Ideal for industrial control panels and switchgear enclosures where durability is critical. Feature: Form 7 E-shaped conduit body with 1/2" trade size simplifies routing and wiring. Business Impact: Quicker wire pulls and reduced installation time, improving panel build efficiency. Application: Common in machine automation assemblies and panel doors that require accessible wiring entries. Feature: NEMA 12 rating and NEC/CEC compliance offer reliable protection for indoor, ordinary locations. Business Impact: Meets code requirements, reduces compliance risk, and supports safer, longer-lasting installations. Application: Enclosures in manufacturing and process facilities with standard environmental demands. Feature: Precise dimensions — 4.56 in length, 1.38 in height, 1.38 in width, and 0.78 lb weight — enabling compact, predictable fits. Business Impact: Optimized space planning and easier handling during installation. Application: Retrofit projects and new builds where panel depth is constrained. Feature: Rich documentation and compatibility with Form 7 accessories — catalogs, installation sheets, and spec guides. Business Impact: Accelerates design validation and procurement, minimizes ambiguity in sourcing. Application: Engineering design reviews and procurement cycles in automation projects. Feature: Broad compatibility with standard conduit runs and existing Eaton/Crouse-Hinds ecosystem. Business Impact: Reduces stocking complexity and simplifies maintenance planning. Application: Ongoing support for service teams across plants using Condulet Form 7 components.

Get a Quick Quote for a Eaton Crouse-Hinds E17

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds E17? Enquire Now

FAQs

E17 is designed for Form 7 assemblies with a 1/2" trade size. It supports standard Condulet accessories and follows IF 863 guidelines for wire pulling. Ensure proper mating covers and bushings are used, and reference the Form 7 catalog page for compatible accessories to minimize rework during panel builds.
The E17 uses a Feraloy iron alloy housing, offering strong durability and corrosion resistance. It carries a NEMA 12 rating and NEC/CEC standards compliance, suitable for ordinary locations in indoor environments where dust and moisture control are important.
Form 7 conduit bodies like E17 are common in industrial automation, control panels, switchgear enclosures, and machine assemblies. They are well-suited for indoor plant environments requiring reliable wire routing, easy maintenance, and compliance with standard electrical codes.
The E17 is referenced against NEC/CEC standards and UL-certified components for Form 7 assemblies. It carries a NEMA 12 rating and is documented in Eaton’s Form 7 catalogs and datasheets, plus installation notes such as IF 863 for wire pulling and related guidance.
The E17’s durable material and straightforward Form 7 design reduce field maintenance and rework, shortening panel build times and improving uptime. Its compatibility with existing accessories simplifies stocking and service, contributing to lower lifecycle costs and faster maintenance cycles for automation projects.
