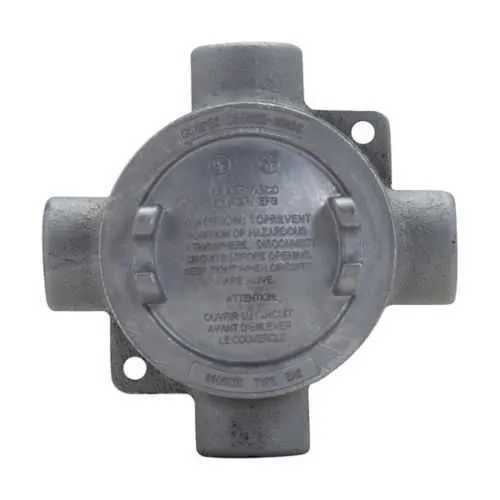

Eaton Crouse-Hinds EABY16 Conduit Outlet Box - Hazardous
Part Number: EABY16
Quick Summary
Condulet EABY16 conduit outlet box by Eaton Crouse-Hinds protects electrical terminations in hazardous locations. In hazardous environments, inadequate sealing and noncompliant enclosures drive maintenance costs and downtime. This model meets NEC/CEC compliance, and offers NEMA ratings of 3, 4, 7, 9 along with Class I, II, and III hazard classifications. With a robust Feraloy iron alloy body and a 3 in cover opening, it fits standard conduit runs while simplifying installation. Designed for reliability in rugged plants, it supports efficient wiring, faster inspections, and long-term compliance in industrial facilities. Its rugged industrial enclosure design makes it suitable for explosion-proof, hazardous-area equipment installations.
Product Information
Extended Description
EABY16 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet EAB conduit outlet box with cover, 3" cover opening diameter, Feraloy iron alloy, Y shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet EAB conduit outlet box with cover
Catalog Number
EABY16
Product Length/Depth
5.31 in
Product Height
4.53 in
Product Width
2.53 in
Product Weight
4.6 lb
UPC
782274248905
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Shape
Y
Trade size
1/2"
Cover opening diameter
3"
Material
Feraloy iron alloy
Crouse-Hinds series EAB and EAB ATEX Conduit Outlet Boxes catalog page
Condulet EAB and EAJ Explosionproof Conduit Outlet Boxes Canadian certification (EAB)
Condulet EAB and EAJ Explosionproof Conduit Outlet Boxes Canadian certification (EAB)
IF 1472 - EAB Condulet Conduit Outlet Bodies
IF 1472 - EAB Condulet Conduit Outlet Bodies
Eaton Specification Sheet - EABY16
Industrial Fittings Bend Radius and Cubic Capacity Chart
Material and construction: The EABY16 uses a Feraloy iron alloy body molded in a Y-shaped configuration, delivering superior impact resistance and ferrous durability in harsh environments. Business impact: Reduced maintenance frequency and lower replacement costs due to rugged materials that withstand temperature swings, moisture ingress, and chemical exposure. Application: Ideal for chemical plants, oil and gas facilities, and mining sites where enclosure integrity is critical for safety and reliability. Size and fit: Overall dimensions (5.31 in L x 4.53 in H x 2.53 in W) and a 4.6 lb weight strike a balance between compact footprint and robust protection. Application: Fits space-constrained control panels while maintaining wiring clearance for straightforward installs. Cover geometry: 3 in cover opening diameter accommodates standard conduit terminations; 1/2 in trade size supports common wiring sizes. Business impact: Faster wiring and inspection cycles reduce project timelines and field labor costs. Application: Useful for a wide range of conduit routing scenarios in hazardous locations. Certifications and compliance: NEC/CEC standards; NEMA ratings 3, 4, 7, 9; hazard classifications Class I, II, III. Business impact: Ensures regulatory alignment and reduces risk during audits. Application: Suitable for code-compliant installations in regulated facilities. Compatibility and installation support: Catalog pages and installation sheets (IF 1472) accompany the product to ease field setup. Business impact: Improves first-time fitment and reduces commissioning delays. Application: Ideal for integrators seeking reliable, documented installation guidance.
Get a Quick Quote for a Eaton Crouse-Hinds EABY16
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EABY16?
Enquire Now
FAQs
EABY16 supports standard conduit runs with a 1/2 in trade size and a 3 in cover opening. Its Y-shaped body is designed for easy mounting in tight electrical bays, using common mounting holes and hardware. Installation sheets IF 1472 and the Eaton specification pages provide step-by-step guidance to ensure proper sealing, grounding, and ingress protection in hazardous areas.
EABY16 is NEC/CEC compliant and carries NEMA ratings 3, 4, 7, 9, along with Class I, II, and III hazardous-location ratings. This combination supports safe terminations in Class I/II/III environments, guarding against dust, water, and explosive atmospheres while maintaining reliable operation under temperature and pressure variations typical in industrial plants.
Yes. The EABY16 is purpose-built for hazardous/classified locations, making it suitable for oil and gas, chemical processing, and mining environments. Its Feraloy iron alloy construction, coupled with multiple NEMA ratings, provides robust protection for field wiring, reducing compliance risk and enabling safer maintenance in demanding sites.
The EABY16 conforms to NEC/CEC standards and is rated NEMA 3, 4, 7, and 9. It features hazardous-location classifications (Class I, II, III), ensuring code-compliant installation. Canadian and other regional certifications are supported by UL reports linked in the product documentation for traceability.
The EABY16’s durable Feraloy iron alloy construction minimizes corrosion and wear, reducing replacement frequency and maintenance downtime. Its documented installation guides and compatibility with standard conduit sizes streamline field servicing, delivering lower total cost of ownership and faster return on investment for hazardous-location projects.
