Eaton Crouse-Hinds EABY26 conduit outlet box - Hazardous
Part Number: EABY26
Quick Summary
Eaton Crouse-Hinds EABY26 conduit outlet box protects wiring in hazardous locations for industrial control panels. Engineers often struggle with durable enclosures that meet safety codes while keeping installation fast and predictable. This Condulet EAB provides NEC/CEC compliance and robust NEMA ratings for Class I, II, and III environments, along with clear area-classification guidance for Hazardous/Classified Locations. By combining rugged Feraloy iron alloy with a compact footprint, it reduces field rework and procurement complexity, delivering safer, compliant installations and streamlined maintenance for industrial facilities.
Product Information
Extended Description

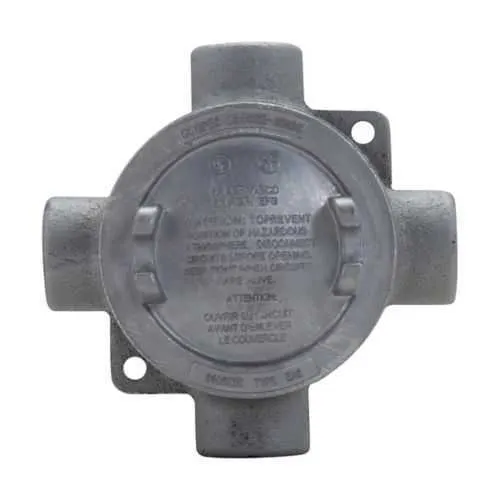

EABY26 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet EAB conduit outlet box with cover, 3" cover opening diameter, Feraloy iron alloy, Y shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet EAB conduit outlet box with cover
Catalog Number
EABY26
Product Length/Depth
5.56 in
Product Height
4.66 in
Product Width
2.78 in
Product Weight
4.12 lb
UPC
782274249001
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Shape
Y
Trade size
3/4"
Cover opening diameter
3"
Material
Feraloy iron alloy
Crouse-Hinds series EAB and EAB ATEX Conduit Outlet Boxes catalog page
Condulet EAB and EAJ Explosionproof Conduit Outlet Boxes Canadian certification (EAB)
Condulet EAB and EAJ Explosionproof Conduit Outlet Boxes Canadian certification (EAB)
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
Eaton Specification Sheet - EABY26
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Shape and size. The EABY26 is a Y-shaped Condulet with a 3/4" trade size and a 3" cover opening. Business impact: Enables tidy conduit routing and straightforward wiring access, reducing installation time and error rates in panel assemblies. Application: Ideal for compact conduit runs in control panels and hazardous-location cabinets. Feature: Material and durability. Constructed from Feraloy iron alloy for high strength and corrosion resistance. Business impact: Extends service life in demanding environments, lowering maintenance costs and downtime. Application: Chemical plants, oil and gas facilities, and mining operations where toughness matters. Feature: Certifications and ratings. NEC/CEC compliance with Hazardous/Classified Locations and NEMA ratings 3, 4, 7, 9. Business impact: Ensures code-driven safety and regulatory peace of mind for compliant system design. Application: Projects requiring strict regulatory adherence and safe enclosure performance. Feature: Dimensions and weight. Product length/depth 5.56 in, height 4.66 in, width 2.78 in, and weight 4.12 lb. Business impact: Predictable mounting footprint and manageable handling during installation and shipping. Application: Field retrofits and new builds with constrained space. Feature: Compatibility and documentation. Compatible with Condulet EAB/EAJ families; installation instructions IF 1730 available with datasheets. Business impact: Accelerates procurement and on-site wiring through familiar components and clear guidance. Application: Integrates seamlessly into Eaton Condulet ecosystems for faster project delivery.
Get a Quick Quote for a Eaton Crouse-Hinds EABY26
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EABY26?
Enquire Now
FAQs
The EABY26 is designed for Condulet installations in hazardous environments and complies with NEC/CEC standards. It supports 3/4 in trade-size conduits, a 3 in cover opening, and is suitable for Class I, II, and III locations. Use the IF 1730 installation sheets for step-by-step mounting and wiring guidance to ensure a compliant, fast installation.
EABY26 features a 3/4 in trade size, a 3 in cover opening, and overall dimensions of approximately 5.56 in length, 4.66 in height, and 2.78 in width. It weighs about 4.12 lb and is constructed from Feraloy iron alloy for durability in harsh environments.
Yes. The EABY26 supports NEC/CEC hazardous-location ratings and Class I, Division 1/2, along with Class II and III, making it appropriate for Class I Division 1 environments. It also offers the corresponding NEMA ratings (3, 4, 7, 9) to cover a wide range of hazardous-area requirements.
EABY26 is certified for Hazardous/Classified Locations with NEC/CEC compliance and NEMA ratings of 3, 4, 7, and 9. These certifications support safe operation in hazardous industrial settings and align with U.S. and Canadian safety requirements for conduit outlet boxes.
The rugged Feraloy iron alloy construction provides long service life with resistance to corrosion and physical damage, reducing maintenance and replacement costs. Its compatibility with the Condulet EAB/EAJ family and clear installation docs shorten commissioning time, delivering lower total cost of ownership in hazardous-location projects.
