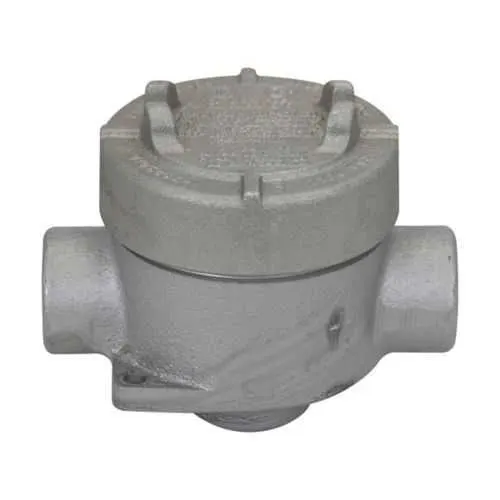

Eaton Crouse-Hinds EAJD16 Conduit Outlet Box - HazLoc
Part Number: EAJD16
Quick Summary
Eaton Crouse-Hinds EAJD16 Conduit Outlet Box is designed to protect conduits and outlets in hazardous environments. In real-world facilities, mis-rated enclosures and sealing gaps frequently cause downtime and safety concerns. This model carries NEC/CEC compliance and hazardous-location ratings, including Class I Division 1 and 2, Class II, and Class III, plus a robust NEMA 3, 4, 7, and 9 rating. Built from Feraloy iron alloy with a D-shaped body and a 1/2 inch trade size, it offers rugged protection while remaining installation-friendly. For engineers and procurement teams, this Condulet box delivers code compliance, mechanical strength, and seamless integration with standard conduits and covers, supporting reliable performance in demanding industries.
Product Information
Extended Description
EAJD16 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet EAJ conduit outlet box with cover, 3-3/16" cover opening diameter, Feraloy iron alloy, D shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet EAJ conduit outlet box with cover
Catalog Number
EAJD16
Product Length/Depth
5.31 in
Product Height
3.75 in
Product Width
3.31 in
Product Weight
3.8 lb
UPC
782274943800
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Shape
D
Trade size
1/2"
Cover opening diameter
3-3/16"
Material
Feraloy iron alloy
Crouse-Hinds series EAJ Conduit Outlet Boxes catalog page
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
Eaton Specification Sheet - EAJD16
Industrial Fittings Bend Radius and Cubic Capacity Chart
Material and construction: The EAJD16 uses Feraloy iron alloy to deliver strong mechanical protection against impact, corrosion, and abuse in harsh environments. Business impact: reduces field damage, minimizes downtime, and extends service life in chemical plants, oil and gas facilities, and heavy processing sites. Application: ideal for hazardous locations where robust enclosure integrity is a must. Shape and fit: The D-shaped body and a 3-3/16" cover opening diameter enable compact, accessible mounting in tight spaces and ease of gasketed sealing. Business impact: faster installations and fewer field modifications, lowering labor costs. Application: suitable for retrofit projects and new builds requiring reliable cover retention with standard conduits. Trade size and dimensions: With a 1/2" trade size and dimensions of 5.31 in (L) × 3.75 in (H) × 3.31 in (W) and a weight of 3.8 lb, the EAJD16 fits common conduits while remaining portable on-site. Business impact: predictable enclosure planning and reduced shipping/handling overhead. Application: preferred for compact control panels and small enclosure configurations. Certifications and compliance: NEC/CEC standards, Hazardous/Classified Locations area ratings, and NEMA ratings 3, 4, 7, 9 provide comprehensive protection. Business impact: simplifies code compliance audits and procurement by consolidating requirements into a single enclosure. Application: meets industry mandates for safety and reliability in power and process systems. Installation readiness: Includes access to installation resources such as IF 1730 instruction sheets and official datasheets, enabling faster field commissioning and consistent workmanship. Business impact: reduces commissioning time and minimizes field errors. Application: beneficial for field technicians and engineering teams coordinating large-scale installations.
Get a Quick Quote for a Eaton Crouse-Hinds EAJD16
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EAJD16?
Enquire Now
FAQs
The EAJD16 is designed for NEC/CEC compliant installations in Hazardous/Classified Locations (Class I Division 1 & 2; Class II; Class III) and carries NEMA ratings 3, 4, 7, 9. Begin with correct sealing and mounting to a compatible enclosure or surface, then connect conduits using standard fittings. Refer to IF 1730 installation sheets for step-by-step guidance and to ensure proper grounding, gasket integrity, and cover retention for ongoing safety.
EAJD16 carries NEC/CEC standards compliance and Hazardous Location ratings including Class I Division 1 and 2, Class II Division 1 and 2, and Class III. It also has NEMA ratings 3, 4, 7, and 9, and is intended for use in Hazardous/Classified Locations. These certifications support compliance with global electrical codes and reduce audit risk in hazardous-area projects.
The EAJD16 measures 5.31 inches in length, 3.75 inches in height, and 3.31 inches in width, with a body weight of 3.8 pounds. It accommodates a 1/2 inch trade size and features a 3-3/16 inch cover opening diameter, all in a compact D-shaped form factor suitable for tight installations.
Yes. The EAJD16 is designed as part of the Condulet family, featuring a 1/2 inch trade size and a 3-3/16 inch cover opening to work with standard conduit fittings and covers. Its Feraloy iron alloy construction and D-shaped body provide robust protection while offering straightforward field integration and gasket-sealed enclosure performance in hazardous areas.
Official resources include the IF 1730 instruction sheets for GUA/EAB/EAJ Condulet Outlet Boxes and the Eaton specification sheet for EAJD16. Additional catalog pages and technical bulletins, such as bend radius and cubic capacity charts, are available to streamline design reviews and on-site commissioning. Accessing these PDFs supports accurate sizing, mounting, and compliance checks.
