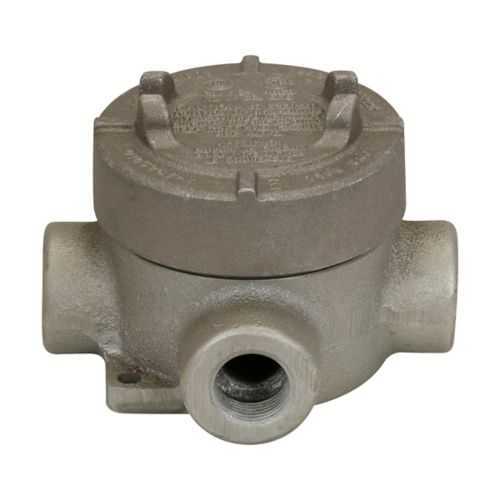

Eaton Crouse-Hinds EAJX26 Conduit Outlet Box - Hazardous Locations
Part Number: EAJX26
Quick Summary
The Eaton Crouse-Hinds EAJX26 conduit outlet box provides rugged enclosure for hazardous locations. In real-world installations, it minimizes downtime by safeguarding terminations against dust, moisture, and chemical exposure. It is certified for NEC/CEC compliance with NEC hazardous ratings including Class I Division 1 and 2, Class II Division 1 and 2, and Class III, along with NEMA ratings 3, 4, 7, and 9. For project teams, its Condulet compatibility and 3/4" trade size fittings simplify site wiring and installation planning, while the comprehensive datasheets support procurement, safety reviews, and maintenance planning. This combination of rugged build and certified performance translates to predictable commissioning timelines, improved compliance reporting, and lower total cost of ownership in process industries and hazardous plant environments.
Product Information
Extended Description
EAJX26 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet EAJ conduit outlet box with cover, 3-3/16" cover opening diameter, Feraloy iron alloy, X shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet EAJ conduit outlet box with cover
Catalog Number
EAJX26
Product Length/Depth
5.56 in
Product Height
5.56 in
Product Width
2.78 in
Product Weight
5.95 lb
UPC
782274943732
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Shape
X
Trade size
3/4"
Cover opening diameter
3-3/16"
Material
Feraloy iron alloy
Crouse-Hinds series EAJ Conduit Outlet Boxes catalog page
IF 1730 - GUA/EAB/EAJ Condulet Outlet Boxes
Eaton Specification Sheet - EAJX26
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Feraloy iron alloy enclosure provides rugged durability and chemical resistance. Business Impact: Enhances equipment protection, reduces maintenance cycles, and extends service life in harsh environments. Application: Chemical plants, oil and gas facilities, and mining operations where enclosure integrity is critical. Feature: X-shaped Condulet design and 3/4" trade size with a 3-3/16" cover opening. Business Impact: Enables compact yet compliant installations with straightforward conduit routing and reliable cover seating. Application: Control panels and field wiring in constrained spaces. Feature: NEC/CEC compliance with Class I Division 1 and 2, Class II Division 1 and 2, Class III ratings; NEMA 3, 4, 7, 9. Business Impact: Reduces regulatory risk, speeds approval processes, and supports standardization across sites. Application: Hazardous-location facilities requiring verified hazardous-area enclosures. Feature: Dimensions and weight profile (5.56 in L, 5.56 in H, 2.78 in W; 5.95 lb). Business Impact: Predictable shipping, easy handling, and documented fit for rack, panel, or surface mounting. Application: New installations and retrofit projects where space planning matters. Feature: Condulet ecosystem compatibility and installation documentation (IF 1730, datasheets). Business Impact: Streamlines procurement, enables safer field installation, and minimizes change orders. Application: System integrators and maintenance teams deploying Condulet outlet boxes across distributed assets.
Get a Quick Quote for a Eaton Crouse-Hinds EAJX26
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EAJX26?
Enquire Now
FAQs
Refer to IF 1730 installation instructions and use the 3/4" trade size fittings with the 3-3/16" cover opening. Follow Condulet mounting guidelines, ensure proper gasket seating, and secure with appropriate fasteners for Class I/II/III environments.
It carries NEC/CEC standards, NEC hazardous ratings for Class I Division 1 and 2, Class II Division 1 and 2, Class III, and NEMA ratings 3, 4, 7, 9, ensuring suitability for hazardous/classified locations.
The enclosure is made from Feraloy iron alloy, with trade size 3/4", cover opening diameter 3-3/16", and overall dimensions approximately 5.56 in length and height by 2.78 in width, weighing about 5.95 lb.
Yes, the EAJX26 is designed for Condulet series compatibility, enabling streamlined integration with existing Condulet outlets and standard conduit fittings.
It offers proven reliability in hazardous environments, reduces field rework through documented specs, shortens commissioning timelines, and supports compliance reporting with NEC/CEC and NEMA standards.
