Eaton Crouse-Hinds EBMX1D-F030 Disconnect Switch - Hazardous Locations
Part Number: EBMX1D-F030
Quick Summary
EBMX1D-F030 is a high-capacity explosionproof disconnect switch designed for hazardous locations. Facilities struggle with safe power isolation, compliant wiring, and downtime due to equipment faults. This device aligns with NEC/CEC requirements and NEMA ratings, supporting Class I/II hazardous locations and Zone classifications. By combining a copper-free aluminum body with a fused switch, it delivers robust protection in tough environments and simplifies installation in Size 1 enclosures. The result is improved reliability, lower lifecycle costs, and faster ROI for plant operators. This solution also aligns with standard control architectures, enabling smoother integration into existing electrical layouts.
Product Information
Extended Description

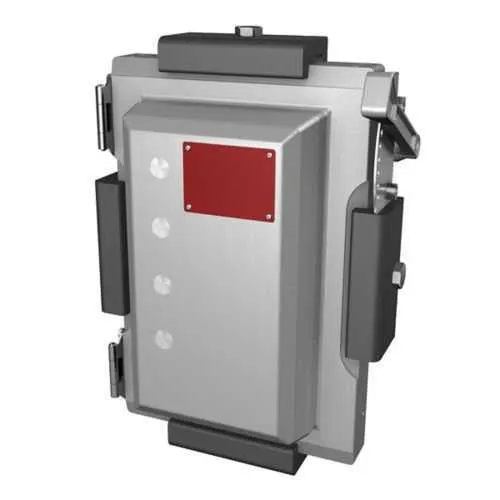

EBMX1D-F030 Eaton Crouse-Hinds: Eaton Crouse-Hinds series clamped EBMXD disconnect switch, 30A, Size 1 enclosure, With switch, Fused, Copper-free aluminum
Product Name
Eaton Crouse-Hinds series clamped EBMXD disconnect switch
Catalog Number
EBMX1D-F030
Product Length/Depth
22.11 in
Product Height
12.86 in
Product Width
15.98 in
Product Weight
80 lb
UPC
662276605978
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
3R 4X 7 9
Enclosure size
Size 1
Fusing
Fused
Enclosure type
With switch
Amperage Rating
30A
Material
Copper-free aluminum
SP3D Design Package - Clamped EBMXD Explosionproof Disconnect Switches
EBMX Replacement Parts List
EBMX Replacement Parts List
Clamped EBMXD Series Explosionproof Disconnect Switches catalog page
Clamped EBMXD Explosionproof Disconnect Switches Canadian certification
Clamped EBMXD Explosionproof Disconnect Switches Canadian certification
IF 1794 - Clamped EBMX Motor Control Series
IF 1794 - Clamped EBMX Motor Control Series
IF 1794 - Clamped EBMX Motor Control Series
Eaton Specification Sheet - EBMX1D-F030
Feature: 30A Amperage Rating → Business Impact: Enables reliable handling of typical control and motor loads with robust short-circuit protection, reducing nuisance trips and equipment wear → Application: Medium-load feeders and motor control circuits in hazardous environments. Feature: Copper-free aluminum Construction → Business Impact: Provides corrosion resistance with lighter weight, lowering lifecycle costs and simplifying field handling → Application: Outdoor and damp installations where enclosure integrity matters. Feature: Size 1 Enclosure → Business Impact: Compact footprint saves panel space and simplifies retrofit projects without sacrificing performance → Application: Tight-control panels and space-constrained installations. Feature: Fused Disconnection → Business Impact: Primary protection against overcurrent helps safeguard downstream equipment and wiring → Application: Safe isolation in process lines and critical power feeds. Feature: Enclosure Type With Switch → Business Impact: Integrated switching reduces component count and installation time, lowering labor costs → Application: Quick deployment in new builds or upgrades. Feature: NEC/CEC Compliance and NEMA Ratings → Business Impact: Regulatory alignment minimizes compliance risk and accelerates approvals for regulated industries → Application: Oil & gas, chemical processing, mining, and other hazardous-location facilities. Feature: 3R 4X 7 9 NEMA Durability → Business Impact: Rugged weather and impact resistance extend service life in outdoor or harsh environments → Application: Outdoor substations, wash-down areas, and rugged plant floors.
Get a Quick Quote for a Eaton Crouse-Hinds EBMX1D-F030
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EBMX1D-F030?
Enquire Now
FAQs
The EBMX1D-F030 is designed for Size 1 enclosures and uses a clamped EBMXD architecture, facilitating straightforward mounting in compact control panels. Follow IF 1794 guidance and installation sheets to ensure proper sealing, fuse placement, and wiring within restricted hazardous-area clearances. This reduces field modification time and supports rapid commissioning.
EBMX1D-F030 carries NEC/CEC compliance, Class I Division 1 and 2, Zone 1 and 2, and Class II/III hazardous location ratings, along with NEMA 3R 4X 7 9 durability. Canadian certifications are available via UL-listed documentation, and design references include catalog pages and specification sheets to support regulatory submissions.
This switch is ideal for oil and gas, chemical processing, and mining environments where reliable power isolation in hazardous locations is required. Its fused 30A rating, copper-free aluminum enclosure, and Size 1 footprint make it suitable for mid-scale control panels and outdoor installations that demand rugged isolation and short-circuit protection.
The copper-free aluminum construction resists corrosion, extending service life in harsh settings and reducing replacement costs. Integrated fuse protection minimizes component counts and downtime, while the compact enclosure simplifies installation. Accessory packs and replacement parts (EBMX replacement parts list) are available to streamline upkeep and ensure ongoing reliability.
Key resources include SP3D design packages, installation sheets IF 1794 for the EBMX motor control series, and the Clamped EBMX catalog page. Specific PDFs and CAD resources are hosted by Eaton, including the EBMX1D-F030 specification sheet and Canadian/UL certification references for regulatory submittals.
