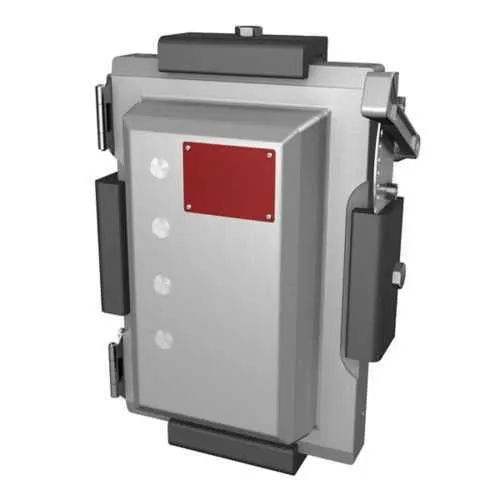

Eaton Crouse-Hinds EBMX1D-F060 Explosionproof Disconnect Switch - 60A, Size 1, Fused
Part Number: EBMX1D-F060
Quick Summary
Eaton Crouse-Hinds EBMX1D-F060 disconnect switch provides explosionproof isolation for hazardous-location motor control and power distribution. In hazardous environments, downtime and compliance risk serious costs, so reliable, code-ready isolation is essential. It carries NEC/CEC hazardous-location certifications with Class I Division 1 and Zone 1 ratings, plus Class II Division 1 and Zone 2, and NEMA ratings. Coupled with a copper-free aluminum enclosure and a compact Size 1 footprint, it delivers safer maintenance and lower total installed cost in industrial electrical systems.
Product Information
Extended Description
EBMX1D-F060 Eaton Crouse-Hinds: Eaton Crouse-Hinds series clamped EBMXD disconnect switch, 60A, Size 1 enclosure, With switch, Fused, Copper-free aluminum
Product Name
Eaton Crouse-Hinds series clamped EBMXD disconnect switch
Catalog Number
EBMX1D-F060
Product Length/Depth
22.11 in
Product Height
12.86 in
Product Width
15.98 in
Product Weight
80 lb
UPC
662276605985
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
3R 4X 7 9
Enclosure size
Size 1
Fusing
Fused
Enclosure type
With switch
Amperage Rating
60A
Material
Copper-free aluminum
SP3D Design Package - Clamped EBMXD Explosionproof Disconnect Switches
Clamped EBMX Series Explosionproof Combination Motor Starters Brochure
Clamped EBMX Series Explosionproof Combination Motor Starters Brochure
Clamped EBMXD Series Explosionproof Disconnect Switches catalog page
Clamped EBMXD Explosionproof Disconnect Switches Canadian certification
Clamped EBMXD Explosionproof Disconnect Switches Canadian certification
IF 1616 - Flange Gasket Replacement Kit
IF 1616 - Flange Gasket Replacement Kit
IF 1616 - Flange Gasket Replacement Kit
Eaton Specification Sheet - EBMX1D-F060
The EBMX1D-F060 uses a clamped EBMXD explosionproof design to deliver rugged performance in hazardous locations, enabling safe isolation and reducing arc faults, which translates to improved personnel safety and reduced downtime on difficult sites. With a 60A amperage rating and a fused, with-switch enclosure, it supports typical motor-control loads while maintaining corrosion resistance thanks to its copper-free aluminum construction, lowering maintenance costs over the life of the installation. The Size 1 enclosure (22.11 in L, 12.86 in H, 15.98 in W) provides a compact footprint suited for tight spaces, while still offering robust protection and easy wiring access for field service. Certifications and ratings—NEC/CEC, Class I Div 1/Zone 1, Class II Div 1/Zone 2, and NEMA 3R 4X 7 9—help streamline code compliance for industrial projects. Documentation and design resources such as SP3D packages, brochures, and installation sheets simplify procurement and integration into new builds or retrofits.
Get a Quick Quote for a Eaton Crouse-Hinds EBMX1D-F060
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EBMX1D-F060?
Enquire Now
FAQs
EBMX1D-F060 uses a Size 1 enclosure with overall dimensions of 22.11 in L, 12.86 in H, and 15.98 in W, weighing 80 lb. It is designed for surface or panel mounting in hazardous locations and features a fused, with-switch enclosure for straightforward wiring. For installation guidance, reference the SP3D design package and installation sheets listed in the product downloads.
The switch is rated for 60A and is a fused disconnect with an explosionproof clamped EBMXD design. It meets NEC/CEC standards for hazardous locations, including Class I Division 1 and Zone 1, Class II Division 1 and Zone 2 certifications, and carries corresponding NEMA ratings (3R, 4X, 7, 9) for rugged outdoor and industrial use.
Yes. EBMX1D-F060 is designed for Hazardous/Classified Locations and carries NEC hazardous ratings that cover Class I Division 1 and Zone 1 (as well as Division 2/Zone 2) scenarios, making it appropriate for chemical processing, refineries, and similar environments where hazardous atmospheres require certified isolation devices.
This model complies with NEC/CEC for hazardous locations, offers Class I Division 1 and Zone 1 safety ratings, Class II Division 1 and Zone 2, along with NEMA ratings 3R 4X 7 9, ensuring broad regulatory acceptance and installation flexibility across North American projects.
Eaton provides installation instructions and parts lists, including IF 1616 gasket replacement kits and replacement components. You can access SP3D design packages, brochures, and a replacement-parts list to simplify upgrades, service scheduling, and long-term lifecycle management, reducing unexpected downtime and extending service intervals.
