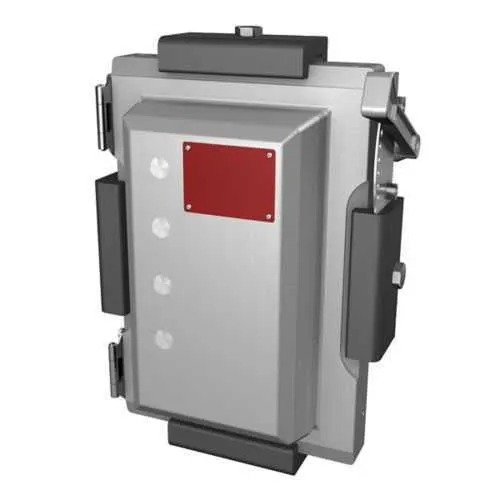

Eaton Crouse-Hinds EBMX1D-N030 Explosionproof Disconnect
Part Number: EBMX1D-N030
Quick Summary
EBMX1D-N030 is an explosionproof disconnect switch designed for isolating power circuits in hazardous locations. This solution addresses common pain points around safe isolation, regulatory compliance, and maintenance access in Class I Division 1 and Zone 1 environments. It carries NEC/CEC compliance and UL certification, with NEMA ratings of 3R, 4X, 7 and 9 for rugged industrial service. The copper-free aluminum enclosure and with-switch configuration offer a compact footprint without sacrificing durability. This combination delivers reliable control in industrial enclosures, reduces maintenance downtime, and supports safe lockout/tagout procedures across chemical plants, oil refineries, mining sites, and other hazardous facilities. Secondary benefits include easier sourcing of replacement parts and streamlined installation in new or retrofit projects.
Product Information
Extended Description
EBMX1D-N030 Eaton Crouse-Hinds: Eaton Crouse-Hinds series clamped EBMXD disconnect switch, 30A, Size 1 enclosure, With switch, Non-fused, Copper-free aluminum
Product Name
Eaton Crouse-Hinds series clamped EBMXD disconnect switch
Catalog Number
EBMX1D-N030
Product Length/Depth
22.11 in
Product Height
12.86 in
Product Width
15.98 in
Product Weight
80 lb
UPC
662276606012
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
3R 4X 7 9
Enclosure size
Size 1
Fusing
Non-fused
Enclosure type
With switch
Amperage Rating
30A
Material
Copper-free aluminum
SP3D Design Package - Clamped EBMXD Explosionproof Disconnect Switches
EBMX Replacement Parts List
EBMX Replacement Parts List
Clamped EBMXD Series Explosionproof Disconnect Switches catalog page
Clamped EBMXD Explosionproof Disconnect Switches UL certification
Clamped EBMXD Explosionproof Disconnect Switches UL certification
IF 1149 - Wiring
IF 1149 - Wiring
IF 1149 - Wiring
Eaton Specification Sheet - EBMX1D-N030
Feature: Explosionproof clamped EBMXD design provides a robust isolation point in hazardous locations → Business Impact: Improves safety and regulatory compliance for power distribution → Application: Chemical, oil & gas, mining facilities that require Class I/Zone 1 protection. Feature: 30A amperage rating supports typical feeder and control circuits without excessive cabinet size → Business Impact: Reduces wiring complexity and equipment costs while maintaining safety → Application: Panelboards and distribution blocks in harsh environments. Feature: Size 1 enclosure with switch and non-fused configuration simplifies integration and maintenance → Business Impact: Faster install, easier replacements, lower spare parts inventory → Application: Retrofits and new builds in constrained spaces. Feature: Copper-free aluminum construction improves corrosion resistance and reduces weight → Business Impact: Longer service life and easier handling during installation → Application: Offshore, chemical processing, and outdoor installations. Feature: NEC/CEC compliance, UL certification, and diverse NEMA ratings (3R 4X 7 9) ensure regulatory alignment and performance in hazardous locations → Business Impact: Lowers risk of non-compliance penalties and unplanned downtime → Application: Global projects requiring hazardous-locations approvals.
Get a Quick Quote for a Eaton Crouse-Hinds EBMX1D-N030
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EBMX1D-N030?
Enquire Now
FAQs
When installing EBMX1D-N030, ensure mounting on a suitable surface within a compliant enclosure and maintain required clearances per NEC/CEC. Use correct wiring method, torque specs, and sealants suitable for hazardous locations, and follow lockout/tagout procedures during maintenance.
The EBMX1D-N030 meets NEC/CEC standards, is rated for Hazardous/Classified Locations with Class I Division 1 and Zone 1, and Class I Division 2 and Zone 2, with NEMA ratings 3R 4X 7 9 and UL certifications for US and Canada.
Yes, EBMX1D-N030 is designed as part of the Clamped EBMXD family with a Size 1 enclosure and non-fused switch. It supports standard low-voltage cabling appropriate for 30A circuits; consult the SP3D design package for wiring layouts and accessory compatibility.
The unit features a Size 1 enclosure, 22.11 in length, 12.86 in height, and 15.98 in width, with a copper-free aluminum body and a 30A rating. It’s intended for hazardous locations and outdoor/industrial environments per NEMA 3R 4X 7 9, ensuring reliable operation.
The explosionproof design reduces risk, minimizes downtime through safe isolation and easy access for maintenance, and lowers long-term maintenance costs by using a durable copper-free enclosure and modular EBMXD components that align with replacement parts lists and installation docs.
