Eaton Crouse-Hinds EBMX1D-N100 Disconnect Switch - Hazardous Locations
Part Number: EBMX1D-N100
Quick Summary
The EBMX1D-N100 disconnect switch is an Eaton Crouse-Hinds clamped unit that provides safe electrical isolation for hazardous-location equipment. This design addresses the common challenge of finding rugged, code-compliant isolation gear that fits tight spaces and withstands demanding maintenance cycles. It carries NEC/CEC compliance with Class I Division 1 and Zone 1 ratings, plus additional protection for Class I Division 2, Zone 2, Class II Division 1, and Class III environments, along with NEMA ratings 3R, 4X, 7, and 9. Its Size 1 enclosure, non-fused format, and copper-free aluminum construction deliver reliable, install-ready performance with long service life, reducing downtime and total cost of ownership for industrial facilities.
Product Information
Extended Description

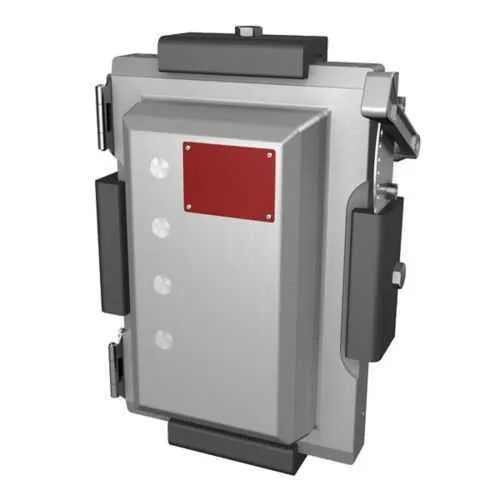

EBMX1D-N100 Eaton Crouse-Hinds: Eaton Crouse-Hinds series clamped EBMXD disconnect switch, 100A, Size 1 enclosure, With switch, Non-fused, Copper-free aluminum
Product Name
Eaton Crouse-Hinds series clamped EBMXD disconnect switch
Catalog Number
EBMX1D-N100
Product Length/Depth
22.11 in
Product Height
12.86 in
Product Width
15.98 in
Product Weight
80 lb
UPC
662276606036
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
3R 4X 7 9
Enclosure size
Size 1
Fusing
Non-fused
Enclosure type
With switch
Amperage Rating
100A
Material
Copper-free aluminum
SP3D Design Package - Clamped EBMXD Explosionproof Disconnect Switches
EBMX Replacement Parts List
EBMX Replacement Parts List
Clamped EBMXD Series Explosionproof Disconnect Switches catalog page
Clamped EBMXD Explosionproof Disconnect Switches Canadian certification
Clamped EBMXD Explosionproof Disconnect Switches Canadian certification
IF 1616 - Flange Gasket Replacement Kit
IF 1616 - Flange Gasket Replacement Kit
IF 1616 - Flange Gasket Replacement Kit
Eaton Specification Sheet - EBMX1D-N100
Feature 1: 100A Amperage Rating paired with a non-fused design. Business Impact: simplifies maintenance checks and minimizes disruption during isolation while meeting safety standards. Application: suitable for medium-load hazardous-location circuits in chemical plants, oil refineries, and mining operations. Feature 2: Size 1 enclosure with a clamped EBMXD configuration. Business Impact: compact footprint enables installation in tight cabinet spaces without compromising enclosure integrity. Application: retrofit or new-build control panels where space is at a premium. Feature 3: Copper-free aluminum construction. Business Impact: improved corrosion resistance and lighter weight, lowering installation labor and long-term maintenance costs. Application: outdoor or harsh chemical environments common in petrochemical facilities. Feature 4: With switch, non-fused. Business Impact: reduces risk during routine maintenance and offers immediate manual isolation capability. Application: emergency and routine shutdowns across process lines. Feature 5: NEC/CEC compliance and hazardous location ratings (Class I Division 1/Zone 1, Division 2/Zone 2; Class II Division 1; Class III). Business Impact: ensures the solution meets multiple global safety codes, easing regulatory approvals. Application: industries requiring strict hazardous-location containment and certification traceability. Feature 6: NEMA ratings 3R 4X 7 9. Business Impact: rugged enclosure protection for varying industrial environments. Application: indoor/outdoor installations with demanding exposure conditions.
