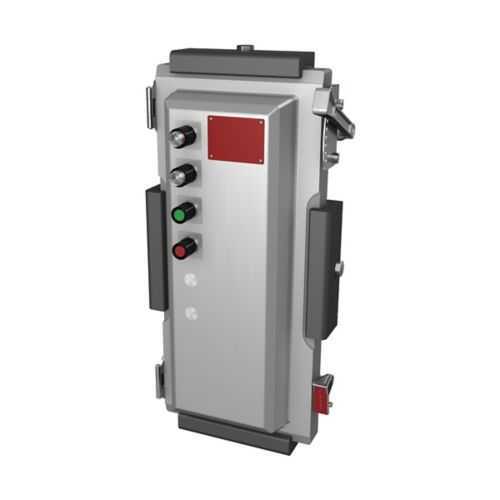

Eaton EBMX2C-F2W4-050 Explosionproof Motor Starter
Part Number: EBMX2C-F2W4-050
Quick Summary
Eaton EBMX2C-F2W4-050 explosionproof motor starter is a compact clamped EBMXC unit that provides full-voltage, non-reversing control for hazardous-location motors. Maintenance teams often struggle with safe, code-compliant installations in demanding environments, where rugged enclosures and integrated protection reduce downtime. This model carries NEC/CEC compliance with Hazardous/Classified Locations ratings, including Class I Division 1 and Zone 1, plus a NEMA 4X enclosure for durable protection in harsh conditions. For buyers, the 50 A, 480 Vac rating and 120 V coil support straightforward panel integration, predictable lifecycle costs, and minimized field wiring, delivering reliable performance in oil & gas, chemical processing, and other high-risk applications.
Product Information
Extended Description
EBMX2C-F2W4-050 Eaton Crouse-Hinds: Eaton Crouse-Hinds series clamped EBMXC combination motor starter, 50A, Size 2 enclosure, With starter, Full voltage, non-reversing starter, 120V coil, breaker, with CPT, Eaton starter, Copper-free aluminum, NEMA size 2, 480 Vac
Product Name
Eaton Crouse-Hinds series clamped EBMXC combination motor starter
Catalog Number
EBMX2C-F2W4-050
Product Length/Depth
32.4 in
Product Height
13.56 in
Product Width
6.18 in
Product Weight
126 lb
UPC
662276676565
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
4X 7 9
Enclosure
With starter
Enclosure size
Size 2
Functions
Full voltage, non-reversing starter, 120V coil, breaker, with CPT
NEMA size
2
Manufacturer
Eaton
Voltage rating
480 Vac
Amperage Rating
50 A
Material
Copper-free aluminum
SP3D Design Package - Clamped EBMXC Explosionproof Combination Motor Starters
Clamped EBMX Series Explosionproof Combination Motor Starters Brochure
Clamped EBMX Series Explosionproof Combination Motor Starters Brochure
Clamped EBMXC Series Explosionproof Combination Motor Starters catalog page
Clamped EBMXC Explosionproof Combination Motor Starters UL certification
Clamped EBMXC Explosionproof Combination Motor Starters UL certification
IF 1616 - Flange Gasket Replacement Kit
IF 1616 - Flange Gasket Replacement Kit
IF 1616 - Flange Gasket Replacement Kit
Eaton Specification Sheet - EBMX2C-F2W4-050
Feature: Explosionproof clamped EBMXC design for hazardous locations → Benefit: Enables safe, compliant operation in Class I, Division 1/Zone 1 areas with reduced risk and downtime → Application: Chemical plants, oil & gas sites, and mining environments. Feature: 50 A at 480 Vac with a 120 V coil and full-voltage, non-reversing operation, breaker, and CPT → Benefit: Simplified control circuitry, robust motor starting for demanding loads, and integrated protection → Application: Large-horsepower motors and continuous-duty drives in hazardous zones. Feature: Size 2 enclosure with NEMA 4X protection → Benefit: Rugged, weather-resistant housing that withstands dust, water, and corrosive atmospheres → Application: Outdoor or harsh indoor locations where contamination is likely. Feature: Copper-free aluminum construction → Benefit: Reduced weight, improved corrosion resistance, and easier lifecycle management → Application: Sealed or corrosive environments common in process industries. Feature: Integrated CPT and protective breaker options → Benefit: Faster installation, easier maintenance, and enhanced on-site safety → Application: Systems requiring reliable fault isolation and control power protection. Insight: The EBMXC family is widely adopted for hazardous-location starters where quick field installation and long service life are essential, making it a trusted choice for OEMs and end users alike.
Get a Quick Quote for a Eaton Crouse-Hinds EBMX2C-F2W4-050
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EBMX2C-F2W4-050?
Enquire Now
FAQs
This model supports Hazardous/Classified Locations per NEC/CEC and is rated for Class I Division 1/2 and Zone 1/2, with a NEMA 4X enclosure. Its Size 2 housing and integrated starter simplify retrofit and new installations in plants such as chemical processing, oil & gas, and mining, helping ensure code compliance and safe operation.
Key specs include a 50 A amperage rating, 480 Vac voltage rating, and a 120 V coil for the control circuit. The unit is a full-voltage, non-reversing starter with a built-in breaker and CPT option, enabling compact wiring and reliable start/stop control in hazardous environments.
Yes. The clamped EBMXC design and Size 2 enclosure provide a compact footprint compatible with many standard panels. Its integrated protection and straightforward wiring reduce retrofit complexity, while the copper-free aluminum enclosure helps lower weight and simplify maintenance in challenging locations.
The starter features NEC/CEC compliance for hazardous locations, including Class I Div 1/2 and Zone 1/2 ratings, plus NEMA 4X enclosure protection. This combination supports safe operation in demanding environments and aligns with industry safety requirements and UL certifications listed in Eaton documentation.
Copper-free aluminum construction provides excellent corrosion resistance, contributing to longer service life in harsh environments. The integrated breaker and CPT options streamline maintenance and fault isolation, reducing downtime and overall lifecycle costs while maintaining reliable motor control in hazardous locations.
