Eaton EBMX2D-F100 Disconnect Switch - Hazardous
Part Number: EBMX2D-F100
Quick Summary
EBMX2D-F100 is an explosionproof disconnect switch designed for hazardous locations in industrial environments. In harsh facilities, downtime, noncompliant enclosures, and difficult maintenance drive safety risk and increased costs. It offers NEC/CEC compliance and hazardous location ratings (Class I, Division 1; Zone 1) plus NEMA 3R, 4X, 7, 9 protection. Copper-free aluminum enclosure and fused design deliver durable performance in corrosive or hot environments, while a Size 2 footprint supports compact installation in limited spaces. From installation to ongoing maintenance, this solution helps reduce total cost of ownership through proven reliability, standardized wiring practices, and vendor-backed spare parts and support, with dedicated technical assistance.
Product Information
Extended Description

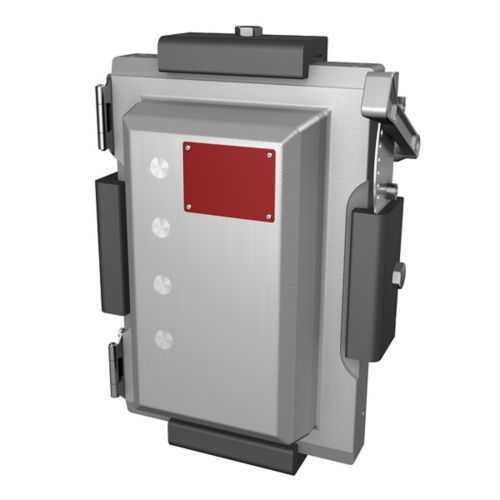

EBMX2D-F100 Eaton Crouse-Hinds: Eaton Crouse-Hinds series clamped EBMXD disconnect switch, 100A, Size 2 enclosure, With switch, Fused, Copper-free aluminum
Product Name
Eaton Crouse-Hinds series clamped EBMXD disconnect switch
Catalog Number
EBMX2D-F100
Product Length/Depth
32.4 in
Product Height
13.56 in
Product Width
16.28 in
Product Weight
126 lb
UPC
662276605992
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
3R 4X 7 9
Enclosure size
Size 2
Fusing
Fused
Enclosure type
With switch
Amperage Rating
100A
Material
Copper-free aluminum
SP3D Design Package - Clamped EBMXD Explosionproof Disconnect Switches
EBMX Replacement Parts List
EBMX Replacement Parts List
Clamped EBMXD Series Explosionproof Disconnect Switches catalog page
Clamped EBMXD Explosionproof Disconnect Switches Canadian certification
Clamped EBMXD Explosionproof Disconnect Switches Canadian certification
IF 1616 - Flange Gasket Replacement Kit
IF 1616 - Flange Gasket Replacement Kit
IF 1616 - Flange Gasket Replacement Kit
Eaton Specification Sheet - EBMX2D-F100
Explosionproof construction and copper-free aluminum enclosure deliver reliable protection in hazardous environments. This feature reduces corrosion risk and simplifies long-term maintenance. It is well suited for oil and gas, chemical processing, and other plants where combustible atmospheres exist. 100A amperage rating with fused protection provides intrinsic overcurrent protection and safer startup sequencing. This reduces nuisance trips and ensures coordination with feeders in harsh locations. The Size 2 enclosure with a switch offers a compact, integrated solution that fits in tighter electrical closets and equipment rooms. It simplifies wiring and minimizes installation time, enabling quicker upgrades in legacy systems. NEC/CEC compliance and hazardous location ratings (Class I Division 1; Zone 1) streamline regulatory approval and safety documentation. This reduces engineering effort and accelerates project timelines. NEMA ratings 3R 4X 7 9 provide robust protection against moisture, corrosion, and impact. The result is extended service life in outdoor weather, washdown, and chemical exposure conditions. The 32.4 in length, 13.56 in height, and 16.28 in width create a practical balance between capacity and space. At 126 lb, the unit remains rigid under vibration and seismic events. Planning and installation benefit from a clearly defined footprint and compatibility with clamped EBMXD family components.
