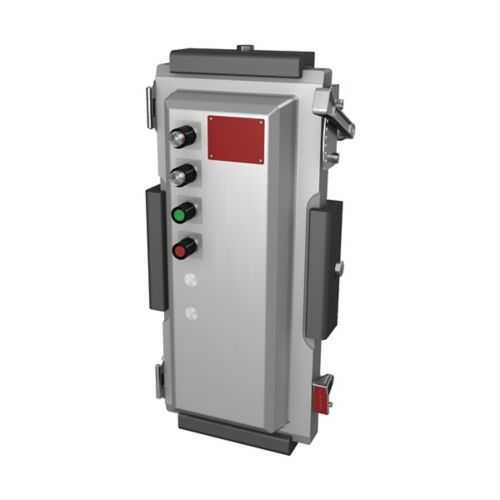

Eaton EBMX3C-F3W4-100 Explosionproof Motor Starter - NEMA 4X
Part Number: EBMX3C-F3W4-100
Quick Summary
The Eaton EBMX3C-F3W4-100 is a clamped EBMXC combination motor starter for hazardous-location motor control. Designers often wrestle with safe enclosure fit, wiring complexity, and regulatory compliance in harsh environments. This unit delivers NEC/CEC compliance with UL hazard-location certifications and a NEMA 4X enclosure, providing certified protection. With a 480 Vac rating, 100 A capacity, and a 120 V coil with built-in breaker and CPT, it streamlines installation and reduces panel clutter. Copper-free aluminum construction and a Size 3 enclosure keep weight down while standing up to demanding service, delivering reliable operation and lower lifecycle costs for plant-wide motor control. This makes it a practical choice for retrofits and new builds in mining, chemical, and oil & gas facilities.
Product Information
Extended Description
EBMX3C-F3W4-100 Eaton Crouse-Hinds: Eaton Crouse-Hinds series clamped EBMXC combination motor starter, 100A, Size 3 enclosure, With starter, Full voltage, non-reversing starter, 120V coil, breaker, with CPT, Eaton starter, Copper-free aluminum, NEMA size 3, 480 Vac
Product Name
Eaton Crouse-Hinds series clamped EBMXC combination motor starter
Catalog Number
EBMX3C-F3W4-100
Product Length/Depth
42.28 in
Product Height
13.85 in
Product Width
6.18 in
Product Weight
211 lb
UPC
662276676572
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
4X 7 9
Enclosure
With starter
Enclosure size
Size 3
Functions
Full voltage, non-reversing starter, 120V coil, breaker, with CPT
NEMA size
3
Manufacturer
Eaton
Voltage rating
480 Vac
Amperage Rating
100 A
Material
Copper-free aluminum
SP3D Design Package - Clamped EBMXC Explosionproof Combination Motor Starters
EBMX Replacement Parts List
EBMX Replacement Parts List
Clamped EBMXC Series Explosionproof Combination Motor Starters catalog page
Clamped EBMXC Explosionproof Combination Motor Starters UL certification
Clamped EBMXC Explosionproof Combination Motor Starters UL certification
IF 1616 - Flange Gasket Replacement Kit
IF 1616 - Flange Gasket Replacement Kit
IF 1616 - Flange Gasket Replacement Kit
Eaton Specification Sheet - EBMX3C-F3W4-100
Feature: Explosionproof clamped EBMXC combination motor starter rated at 100 A and 480 Vac with a NEMA 4X enclosure. Impact: Provides rugged protection in hazardous locations, reducing unplanned downtime and boosting safe motor control in oil & gas, chemical processing, and mining environments. Application: Ideal for size-3 control panels where reliable full-voltage starting is required and field service access is limited. Feature: 120 V coil, built-in breaker, and CPT. Impact: Simplifies control wiring, improves protection coordination, and lowers wiring errors during commissioning. Application: Suitable for integrated starter circuits in hazardous facilities, enabling quick replacements and compliant operation. Feature: Copper-free aluminum enclosure and a compact size 3 footprint. Impact: Reduces weight and corrosion risk while preserving strength, easing installation and maintenance in tight spaces. Application: Retrofit projects and new builds with limited panel space. Feature: Includes 3D SP3D design package, replacement parts list, and extensive Eaton documentation. Impact: Accelerates design, speeds procurement, and minimizes downtime during maintenance. Application: Engineering and maintenance planning for hazardous-area installations. Feature: NEC/CEC compliance, UL hazard-location certifications, and NEMA 4X rating. Impact: Streamlines regulatory approvals, enhances safety, and extends service life in demanding industrial settings. Application: Petrochemical plants, refineries, and heavy industries requiring compliant, durable motor starters.
