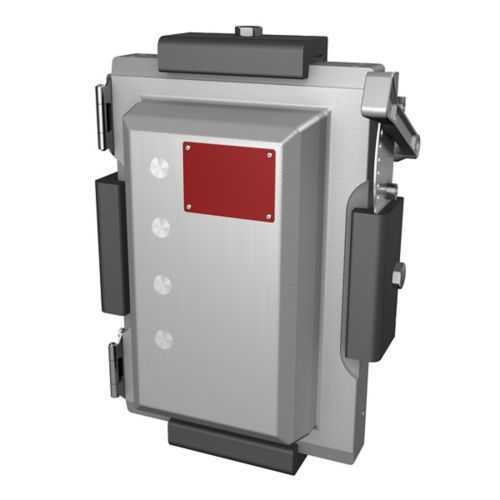

Eaton EBMX3D-F200 Disconnect Switch - Explosionproof
Part Number: EBMX3D-F200
Quick Summary
Eaton EBMX3D-F200 disconnect switch provides safe, fused isolation for 200A circuits in hazardous-location electrical enclosures. In challenging environments, maintenance and compliance worries can cause costly downtime. The unit carries NEC/CEC hazardous-location ratings including Class I Division 1 and Zone 1, plus Class I Division 2 and Zone 2, along with a rugged NEMA 3R 4X 7 9 enclosure. Designed for heavy industry, it pairs with standard EBMXD accessories and a copper-free aluminum body to reduce weight and simplify installation, while meeting strict safety and regulatory requirements. This combination supports reliable control of power distribution in chemical plants, oil and gas facilities, and mining operations, delivering safety, durability, and a clear path to compliance.
Product Information
Extended Description
EBMX3D-F200 Eaton Crouse-Hinds: Eaton Crouse-Hinds series clamped EBMXD disconnect switch, 200A, Size 3 enclosure, With switch, Fused, Copper-free aluminum
Product Name
Eaton Crouse-Hinds series clamped EBMXD disconnect switch
Catalog Number
EBMX3D-F200
Product Length/Depth
42.28 in
Product Height
13.85 in
Product Width
17.93 in
Product Weight
211 lb
UPC
662276606005
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
3R 4X 7 9
Enclosure size
Size 3
Fusing
Fused
Enclosure type
With switch
Amperage Rating
200A
Material
Copper-free aluminum
SP3D Design Package - Clamped EBMXD Explosionproof Disconnect Switches
EBMX Replacement Parts List
EBMX Replacement Parts List
Clamped EBMXD Series Explosionproof Disconnect Switches catalog page
Clamped EBMXD Explosionproof Disconnect Switches Canadian certification
Clamped EBMXD Explosionproof Disconnect Switches Canadian certification
IF 1616 - Flange Gasket Replacement Kit
IF 1616 - Flange Gasket Replacement Kit
IF 1616 - Flange Gasket Replacement Kit
Eaton Specification Sheet - EBMX3D-F200
200A fused EBMXD configuration delivers reliable isolation for high-current circuits, reducing arc-flash risk and preventing nuisance fuse failures. Business impact: improved equipment protection and uptime in hazardous environments. Application: feeder breakers, motor control centers, and process lines in chemical and petrochemical plants. Enclosure Size 3 with a switch enables compact, integrated control solutions, reducing panel footprint and enabling faster installation in constrained spaces. Business impact: lower installation costs and simplified wiring, with quicker commissioning in the field. Application: industrial automation panels and remote control stations in hazardous locations. Hazardous-location ratings and NEC/CEC compliance provide certified operation in Class I Division 1/ Zone 1 and related environments, with additional Class II Division 1 and Class III coverage. Business impact: regulatory compliance, safer operation, and reduced risk of noncompliance penalties. Application: oil & gas, chemical processing, mining, and other extreme environments. Copper-free aluminum construction delivers corrosion resistance with lighter weight for easier handling and installation in outdoor or offshore applications. Business impact: lower total cost of ownership and easier maintenance. Application: outdoor switchgear housings and marine facilities. NEMA ratings 3R 4X 7 9 offer rugged protection against weather, shock, and corrosion. Business impact: durable performance in harsh environments, improving uptime and asset longevity. Application: outdoor substations, welding stations, and industrial yards. SP3D design package and available installation literature streamline engineering and field setup, reducing design cycles and misconfiguration risk. Business impact: accelerated project timelines and fewer field adjustments. Application: system integrators and OEMs deploying EBMXD solutions.
Get a Quick Quote for a Eaton Crouse-Hinds EBMX3D-F200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EBMX3D-F200?
Enquire Now
FAQs
Follow Eaton's EBMXD installation guidelines for hazardous locations, and use the IF1616 flange gasket kit to seal entries. Ensure the enclosure is Class I Division 1/Zone 1 rated, torque fasteners to spec, and confirm fuse status after installation. For layout and mounting details, reference the SP3D design package and installation sheets from Eaton.
The EBMX3D-F200 supports NEC/CEC hazardous-location classifications, including Class I Division 1 and Zone 1, Class I Division 2 and Zone 2, Class II Division 1, and Class III. It carries rugged NEMA ratings of 3R, 4X, 7, and 9, ensuring protection in hazardous areas and severe conditions.
Yes. EBMX3D-F200 is part of the clamped EBMXD family and is compatible with replacement parts and catalogs provided by Eaton. Refer to the EBMX Replacement Parts List and EBMXD brochure for parts compatibility and kit recommendations to maintain performance and safety over time.
Enclosure size is 3. The product measures 42.28 inches in length, 13.85 inches in height, and 17.93 inches in width, with a weight of 211 pounds. It is rated for 200A and is fused with a copper-free aluminum enclosure that includes a switch.
Deploying EBMX3D-F200 improves uptime by delivering reliable, code-compliant isolation in hazardous locations, reducing maintenance and fault-related downtime. Coupled with SP3D design support and readily available replacement parts, it shortens project timelines and lowers field modification costs, delivering measurable safety and productivity gains in oil & gas, chemical, and mining operations.
