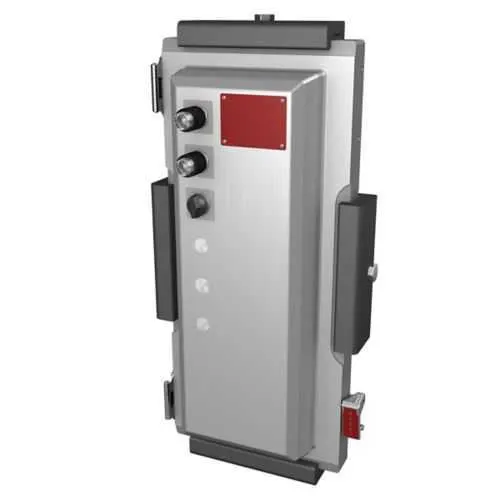

Eaton EBMX3S Motor Starter Enclosure - Hazardous Locations
Part Number: EBMX3S
Quick Summary
EBMX3S motor starter enclosure shields explosion-proof starters in hazardous locations for reliable motor control. In harsh environments, installing and maintaining equipment while meeting multiple certifications can slow projects and drive downtime. This enclosure carries NEC/CEC compliance and hazard-area ratings including Class I Division 1 and Zone 1, as well as NEMA 4X protection, helping plants meet strict safety and reliability targets. Designed in copper-free aluminum and sized for compact installations, the EBMX3S without starter supports modular expansion with existing clamped EBMXS components, reducing lead times and enabling easier field upgrades. For procurement teams, the combination of rugged build, regulatory alignment, and compatibility with standard installation practices translates to lower total cost of ownership and faster uptime.
Product Information
Extended Description
EBMX3S Eaton Crouse-Hinds: Eaton Crouse-Hinds series clamped EBMXS motor starter enclosure, Size 3, Without starter, Copper-free aluminum
Product Name
Eaton Crouse-Hinds series clamped EBMXS motor starter enclosure
Catalog Number
EBMX3S
Product Length/Depth
42.28 in
Product Height
13.85 in
Product Width
17.93 in
Product Weight
211 lb
UPC
662276606128
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
4X 7 9
Enclosure size
Size 3
Enclosure
Without starter
Material
Copper-free aluminum
SP3D Design Package - Clamped EBMXS Explosionproof Motor Starters
EBMX Replacement Parts List
EBMX Replacement Parts List
Clamped EBMXS Series Explosionproof Motor Starters catalog page
Clamped EBMXS Explosionproof Motor Starters Canadian certification
Clamped EBMXS Explosionproof Motor Starters Canadian certification
IF 1149 - Wiring
IF 1149 - Wiring
IF 1149 - Wiring
Eaton Specification Sheet - EBMX3S
Copper-free aluminum construction delivers corrosion resistance and weight efficiency, improving long-term durability in chemical and outdoor environments while sustaining enclosure integrity for critical motor control. This translates to lower maintenance cycles and reduced replacement costs during plant life cycles, particularly in hazardous locations where material compatibility matters. The Size 3 clamped EBMXS enclosure without starter enables modular, scalable installations; it supports rapid field upgrades by allowing standard starter components to be added later without reworking the enclosure, ultimately shortening project timelines. Compatibility with the clamped EBMXS system simplifies retrofits and new builds, reducing engineering time and ensuring consistent performance across assets in harsh conditions. NEC/CEC compliance and Hazardous/Classified Location ratings, paired with NEMA 4X protection, provide regulatory certainty and robust environmental defense against dust, moisture, and chemical exposure, which lowers commissioning risk and unplanned downtime. The copper-free aluminum enclosure, with its proven seal and gasket design, helps manage operating costs by minimizing corrosion-related leakage paths and maintenance overhead in demanding industries such as oil & gas and chemical processing.
Get a Quick Quote for a Eaton Crouse-Hinds EBMX3S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EBMX3S?
Enquire Now
FAQs
EBMX3S is a Size 3 clamped EBMXS enclosure designed to be used without a starter, enabling easy integration with existing clamped EBMXS components. Its copper-free aluminum construction supports field upgrades and retrofit projects, while maintaining consistent fit with standard EBMXS equipment for explosion-proof motor control in hazardous locations.
The EBMX3S carries NEC/CEC compliance and Hazardous/Classified Locations ratings, including Class I Division 1 and Zone 1, as well as Class II Division 1 and Class III. It also features NEMA protection ratings of 4X, 7, and 9, offering broad regulatory acceptance and enhanced environmental resistance.
Installation assumes a starter is added separately due to the 'Without starter' configuration. With dimensions of 42.28 in L, 13.85 in H, 17.93 in W and a weight of 211 lb, plan for suitable lifting equipment and mounting space. The copper-free aluminum design simplifies field handling and long-term maintenance in hazardous environments.
Yes. The EBMX3S is designed for hazardous and classified locations with NEC/CEC compliance, including Class I Division 1 Zone 1, making it suitable for chemical processing, oil and gas, and other demanding industries that require explosion-proof motor starter enclosures.
The robust copper-free aluminum enclosure reduces corrosion-related maintenance and extends service life in harsh environments, lowering total cost of ownership. Its modular compatibility with existing EBMXS systems accelerates installation, cuts downtime during upgrades, and supports regulatory compliance, contributing to faster project completion and improved uptime.
