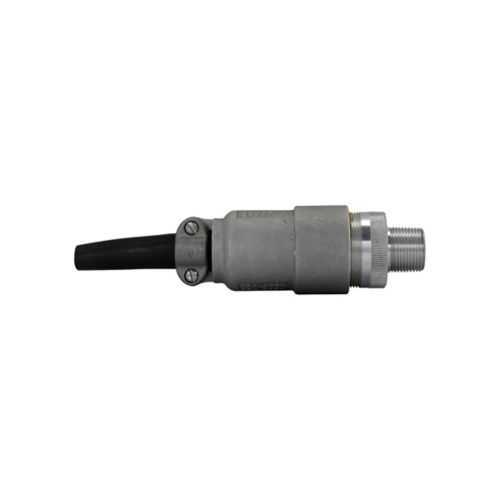

Eaton EBY26102 Portable Cord Connector - Explosion-proof
Part Number: EBY26102
Quick Summary
EBY26102 portable cord connector from Eaton powers safe, sealed cord connections in hazardous locations. Engineers often struggle with installation delays and unreliable seals when wiring equipment in Class I/II environments. This unit delivers NEC/CEC compliance with Class I, Division 1 and Class II, Division 1 ratings, plus explosion-proof protection for dependable operation. With non-armoured tray cable compatibility and a 3/4 in NPT gland, it reduces field install time while supporting scalable, compliant wiring across industrial facilities. This combination of rugged performance and ease of use translates into tangible uptime and lower total cost of ownership.
Product Information
Extended Description
EBY26102 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EBY portable cord connector, Non-armoured and tray cable, Aluminum, Outer sheath min/max: 0.500-0.625", Explosionproof, 3/4" NPT
Product Name
Eaton Crouse-Hinds series EBY portable cord connector
Catalog Number
EBY26102
Product Length/Depth
6.25 in
Product Height
2.06 in
Product Width
2.06 in
Product Weight
0.85 lb
UPC
782274249704
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1
Protection type
Explosion-proof
Cable type
Non-armoured Tray cable
Gland type
Portable cord connector
Thread Size
3/4"
Thread type
NPT
Outer sheath (min/max)
0.500-0.625"
Material
Aluminum
Crouse-Hinds series EBY catalog page
CGBS and EBY Explosionproof Portable Cord Connectors Canadian certification (EBY)
CGBS and EBY Explosionproof Portable Cord Connectors Canadian certification (EBY)
IF 389 - EBY Portable Cord Connector
Eaton Specification Sheet - EBY26102
Feature: Explosion-proof aluminum housing provides rugged protection in hazardous locations. Business Impact: Minimizes the risk of ignition, reduces maintenance cycles, and extends service life in demanding environments. Application: Suitable for chemical plants and oil & gas facilities where safety and compliance are paramount. Feature: Non-armoured tray cable compatibility with a 0.500–0.625 inch outer sheath and a 3/4 in NPT gland. Business Impact: Simplifies sourcing and installation, lowers part count, and accelerates wiring runs. Application: Ideal for machinery and conveyors using tray cables in constrained spaces. Feature: NEC/CEC compliance with Class I, Division 1 and Class II, Division 1 ratings. Business Impact: Improves regulatory acceptance, reduces commissioning risk, and supports multi-location deployments. Application: Critical for cross-site hazardous-location projects across petrochemical, mining, and metal-processing sectors. Feature: Lightweight aluminum construction and compact footprint (6.25 in L, 2.06 in W, 2.06 in H; 0.85 lb). Business Impact: Easier handling, faster field installs, and lower freight costs. Application: Field-replaceable connectors on portable cord assemblies in tight installations. Feature: Gland type portable cord connector with 3/4 in NPT threads. Business Impact: Ensures secure, leak-tight connections and straightforward installation with standard tools. Application: Ready for rapid deployment on equipment with portable cord wiring in hazardous zones. Feature: Compatibility with non-armoured and tray cable types supports broad installation scenarios. Business Impact: Reduces inventory diversity, simplifies maintenance, and enhances uptime across plant retrofit projects. Application: Retrofit projects and new builds in industrial plants needing flexible wiring options.
Get a Quick Quote for a Eaton Crouse-Hinds EBY26102
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EBY26102?
Enquire Now
FAQs
To install EBY26102, prepare the tray cable to the required sheath diameter (0.500–0.625 in), thread the gland into a compatible enclosure, and tighten to the manufacturer’s torque spec. Use appropriate gaskets and sealants for hazardous locations, then perform a pull-test and continuity check. This approach minimizes leakage risk and ensures a proper seal.
EBY26102 is rated for Hazardous/Classified Locations with NEC/CEC compliance, including Class I, Division 1 and Class II, Division 1 approvals. It is explosion-proof, designed for environments where flammable gases or vapors may be present, and supports safe operation under strict regulatory requirements.
Yes. The EBY26102 is specifically engineered for hazardous locations common in oil and gas and chemical processing. Its explosion-proof construction, 3/4 in NPT gland, and compatibility with tray cables help meet stringent safety standards while maintaining reliable performance in demanding service conditions.
The connector adheres to NEC/CEC standards and features Class I, Division 1 and Class II, Division 1 hazardous-location ratings. Its explosion-proof protection type further validates its suitability for critical safety environments in manufacturing, mining, and chemical processing.
The EBY26102 reduces downtime through robust sealing and straightforward field installation. Its aluminum body resists corrosion, while compatibility with standard 3/4 in NPT fittings and tray cables lowers inventory and maintenance costs, delivering a favorable return on investment for ongoing industrial wiring projects.
