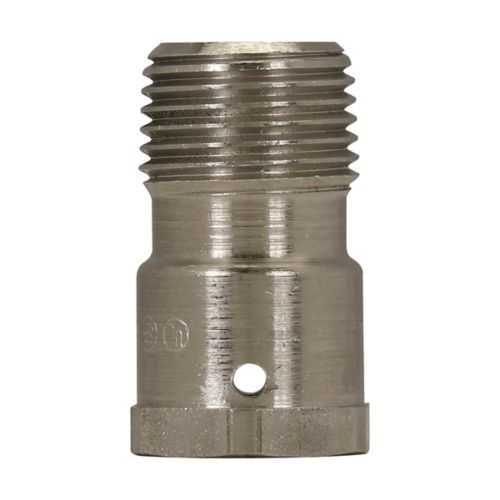

Eaton Crouse-Hinds ECD15 Breather/Drain - IECEx/ATEX
Part Number: ECD15
Quick Summary
ECD15 breather/drain protects enclosures in hazardous locations by venting moisture and preventing water ingress. Operators contend with condensate buildup, corrosion, and unplanned downtime, especially in offshore, chemical, and mining applications. It carries NEC/CEC and IECEx/ATEX certifications, with Class I, II and III division ratings and UL component approvals. Crafted in stainless steel, it offers durable venting and drainage with minimal maintenance requirements. For procurement teams, the ECD15 helps ensure compliance, simplify spares management, and reduce unexpected equipment failures across global facilities. Its compact 1/2 inch trade size suits standard conduit and cabinet vents while maintaining rugged performance. The universal design simplifies stocking and procurement, reducing part variation across facilities.
Product Information
Extended Description
ECD15 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ECD universal breather/drain, Stainless steel, 1/2"
Product Name
Eaton Crouse-Hinds series ECD universal breather/drain
Catalog Number
ECD15
Product Length/Depth
0.88 in
Product Height
1.53 in
Product Width
1.02 in
Product Weight
0.17 lb
UPC
782274250205
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Material
Stainless steel
Trade size
1/2"
Crouse-Hinds series ECD Explosionproof Breathers and Drains catalog page
ECD Explosionproof Breathers and Drains UL certification (Component)
ECD Explosionproof Breathers and Drains UL certification (Component)
ECD Explosionproof Breathers and Drains UL certification (Component)
IF 843 - ECD Breathers and Drains
Eaton Specification Sheet - ECD15
The ECD15 uses a stainless steel construction to resist corrosion in harsh environments, delivering reliable venting and drainage in a compact 1/2 inch size. Feature → Business Impact → Application: This combination extends enclosure life and reduces maintenance cycles, lowering total cost of ownership for automation panels in hazardous plants and marine installations. Application: Suitable for use in chemical processing, oil and gas, and offshore facilities where condensate control is critical to safety and uptime. Feature → Business Impact → Application: The unit’s certified ratings (NEC/CEC, IECEx/ATEX, UL component) simplify multi-region compliance and procurement, enabling faster project approvals and fewer supplier audits. Application: Ideal for explosion-proof enclosures in EXP zones, with straightforward installation alongside standard conduit fittings. Feature → Business Impact → Application: Stainless steel, 0.88 in depth and 0.17 lb weight enable easy retrofit and minimal enclosure footprint, reducing installation time and inventory complexity. Application: Works with existing ECD family components for scalable protection across panels and cabinets. Feature → Business Impact → Application: The universal breather/drain design minimizes spare part variety, enabling lean maintenance budgets and predictable service intervals in large facilities.
Get a Quick Quote for a Eaton Crouse-Hinds ECD15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ECD15?
Enquire Now
FAQs
To install the ECD15, ensure the power is de-energized and the enclosure is accessible for vent/drain insertion. Remove the existing breather/drain if applicable, then thread the ECD15 into the designated port using standard conduit hardware. Tighten to manufacturer torque specifications and verify enclosure integrity and IP rating after installation. Use appropriate gaskets and mounting hardware if required by your enclosure design. Routine inspection should confirm unobstructed vents and any condensate drainage path.
ECD15 features a 1/2 inch trade size, stainless steel body, and compact dimensions: 0.88 in depth, 1.53 in height, and 1.02 in width, with a weight of 0.17 lb. It carries UPC 782274250205. Certifications include NEC/CEC, IECEx/ATEX, and UL component approvals, with hazardous-location ratings covering Class I, II, and III divisions. These specs ensure compatibility with standard enclosures and compliance across regions.
Yes. ECD15 is designed for hazardous locations and carries NEC/CEC and IECEx/ATEX certifications, including Class I Division 1 and Division 2 ratings, plus other classes as noted. This makes it suitable for chemical plants where venting condensate and draining moisture from electrical enclosures is essential to safety and reliability, while meeting regulatory requirements and supporting safe operation.
ECD15 holds NEC/CEC, IECEx/ATEX, and UL component certifications, plus area-classification ratings for hazardous locations. These credentials streamline cross-border procurement, simplify compliance documentation, and reduce the need for multiple, region-specific parts. The certification set supports safer installation in explosion-protective enclosures and aligns with global industrial standards.
ECD15 reduces maintenance frequency by efficiently venting moisture and draining condensate, which minimizes corrosion risk and enclosure wear. The stainless-steel build extends service life in harsh environments, lowering replacement costs. Its compact form and universal compatibility also simplify spares stocking, improving project ROI and reducing downtime across facilities.
