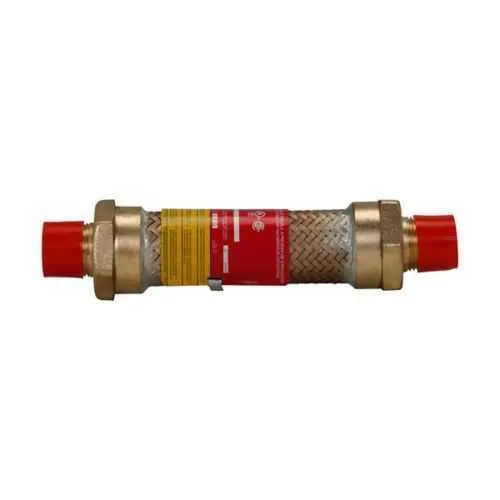

Eaton ECGJH116 coupling - 16-inch Hazardous/Classified NEC/CEC
Part Number: ECGJH116
Quick Summary
The Eaton ECGJH116 coupling is a 16-inch flexible conduit connection for hazardous-location installations. It addresses common pain points like restricted access, cable strain, and difficult maintenance in tight spaces found in refineries, chemical plants, and offshore platforms. This connector carries NEC/CEC compliance with Class I, Division 1 ratings and UL certification, plus an area-classification for hazardous locations, ensuring reliable protection and traceable conformity across inspections. The forged-brass construction and dual-end male connections simplify field assembly, while the 1/2-inch trade size matches standard conduit fittings. By combining rugged durability with installation flexibility, ECGJH116 helps reduce downtime, improve safety, and streamline procurement for plant engineers and maintenance crews.
Product Information
Extended Description
ECGJH116 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ECGJH coupling, 16" flexible length, Male connections both ends, Forged brass, 1/2" trade size
Product Name
Eaton Crouse-Hinds series ECGJH coupling
Catalog Number
ECGJH116
Product Length/Depth
19.75 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
2.25 lb
UPC
782274994246
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
Gender
Male connections both ends
Flexible length
16"
Trade size
1/2"
Material
Forged brass
Crouse-Hinds series EC Explosionproof Couplings catalog page
EC Explosionproof Couplings UL certification
EC Explosionproof Couplings UL certification
EC Explosionproof Couplings UL certification
IF 1618 - ECGJH Flexible Couplings
Eaton Specification Sheet - ECGJH116
Feature: 16-inch flexible length enables flexible routing and fewer adapters. Business Impact: reduces installation time and material costs, improving project margins. Application: congested equipment rooms and hazardous-area installations where space is limited. Feature: Forged brass construction offers rugged durability and corrosion resistance. Business Impact: lowers maintenance cycles and replacement costs in tough environments. Application: offshore platforms, chemical plants, and refineries where exposure to corrosive agents is common. Feature: Male connections on both ends simplify quick field assembly. Business Impact: minimizes labor and training requirements, accelerating commissioning. Application: conduit-to-fittings transitions during plant expansion or retrofits. Feature: 1/2 inch trade size ensures compatibility with standard fittings. Business Impact: reduces need for adapters, supporting faster sourcing and inventory management. Application: typical electrical installations across industrial facilities. Feature: NEC/CEC compliance with hazardous-location ratings and UL certification provides risk reduction. Business Impact: supports regulatory audits, insurance requirements, and safer operating conditions. Application: new builds and retrofits in hazardous environments. Feature: Dimensions and weight (19.75 in length, 1.5 in height/width, 2.25 lb) enable accurate planning and shipping. Business Impact: simplifies procurement, warehousing, and on-site handling. Application: logistics planning for large-scale industrial installs.
Get a Quick Quote for a Eaton Crouse-Hinds ECGJH116
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ECGJH116?
Enquire Now
FAQs
ECGJH116 requires coupling with standard 1/2" trade-size conduit fittings and adherence to installation sheets such as IF 1618. Use proper torque and sealing guidelines per the datasheet to maintain explosion protection and area-classification compliance.
ECGJH116 is designed for NEC Class I, Division 1 hazardous locations with UL certification for explosion-proof conduit fittings, and it is compatible with CEC standards for Canada, ensuring regulatory compliance during audits and inspections.
Yes. ECGJH116 belongs to the ECGJH family with male connections at both ends, designed for straightforward mating with compatible EC explosionproof couplings and standard conduit components.
ECGJH116 provides 16 inches of flexible length, a 1/2 inch trade size, overall length of 19.75 inches, and dimensions around 1.5 inches in height and width, with a weight of approximately 2.25 pounds.
Consult the IF 1618 installation sheet, the Crouse-Hinds EC catalog page, UL certification pages for US/Canada, and the EU Declaration of Conformity to ensure full compliance with your project’s regulatory requirements.
