Eaton ECGJH16 Explosionproof Coupling - Class I, Div 1
Part Number: ECGJH16
Quick Summary
ECGJH16 is an explosionproof coupling used to join conduit systems in hazardous areas. For engineers dealing with vibration, tight spaces, and chemical exposure, secure, quick-install connections are essential. The device meets NEC/CEC standards and is rated Class I, Division 1 for hazardous locations, with area-classification documentation and Canadian certification references. By using forged brass and a compact 1/2 in trade size, it delivers reliable performance with minimal downtime across industrial facilities, from chemical plants to offshore operations.
Product Information
Extended Description

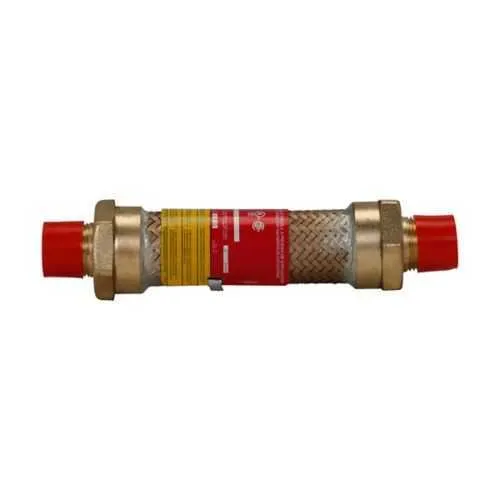

ECGJH16 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ECGJH coupling, 6" flexible length, Male connections both ends, Forged brass, 1/2" trade size
Product Name
Eaton Crouse-Hinds series ECGJH coupling
Catalog Number
ECGJH16
Product Length/Depth
9.75 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
1.25 lb
UPC
782274252001
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
Gender
Male connections both ends
Flexible length
6"
Trade size
1/2"
Material
Forged brass
Crouse-Hinds series EC Explosionproof Couplings catalog page
EC Explosionproof Couplings Canadian certification
EC Explosionproof Couplings Canadian certification
EC Explosionproof Couplings Canadian certification
IF 1618 - ECGJH Flexible Couplings
Eaton Specification Sheet - ECGJH16
Feature: 6" flexible length combined with a 9.75" overall length provides adaptability in constrained layouts and long runs. Business Impact: reduces field rework, accelerates installation, and minimizes vibration-related loosening in demanding environments. Application: ideal for hazardous area conduit runs where movement must be accommodated without compromising safety. Feature: Male connections at both ends simplify in-line splicing and reduce the number of required adapters. Business Impact: lowers hardware inventory, speeds maintenance, and improves system integrity. Application: suitable for retrofit projects and new builds in process plants with tight corridors. Feature: Forged brass construction delivers corrosion resistance and durability in chemically aggressive settings. Business Impact: extends equipment lifespan, lowers replacement costs, and improves uptime. Application: offshore platforms, chemical plants, and mining facilities. Feature: 1/2" trade size enables compact, standardized connections with common conduit fittings. Business Impact: improves compatibility and inventory management, reducing installation time. Application: integrates with prevalent conduit systems using 1/2" couplings. Certification/Compliance Context: NEC/CEC alignment and Hazardous/Classified Locations ratings ensure regulatory readiness and safer operations across global facilities.
Get a Quick Quote for a Eaton Crouse-Hinds ECGJH16
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ECGJH16?
Enquire Now
FAQs
ECGJH16 uses male connections at both ends and a 1/2 inch trade size, enabling straightforward in-line connections with standard conduit fittings. When installing in Class I, Division 1 locations, follow the IF 1618 installation instructions, ensure proper sealing and grounding, and verify compatibility with your existing conduit system to maintain hazardous location ratings.
Key features include forged brass construction for corrosion resistance, a 6" flexible length for movement accommodation, and a 9.75" overall length for secure mounting. The dual-ended male connections simplify assembly, while the 1/2" trade size aligns with common fittings. Together, these aspects deliver vibration resistance, quick field installation, and long-term reliability in demanding applications.
Industries with stringent hazardous location requirements such as chemical processing, oil and gas, mining, and offshore energy gain from ECGJH16. Its NEC/CEC compliance and Class I Division 1 rating ensure safe operation in hazardous/classified locations, while its robust brass construction withstands demanding plant environments and reduces maintenance frequency.
ECGJH16 is documented for Hazardous/Classified Locations and NEC/CEC standards, with a Class I Division 1 rating. Canadian certification references and EU conformity documents are available, supporting global deployment. Users can reference UL Canada and EC documentation for regulatory assurance and project approvals.
By combining a reliable 1/2" trade size with a durable forged brass build and a 6" flexible length, ECGJH16 reduces installation time and field rework, lowers inventory needs, and minimizes leak or loosening risks in vibration-prone runs. The result is improved uptime, safer operations, and lower lifecycle costs for hazardous-area conduit systems.
