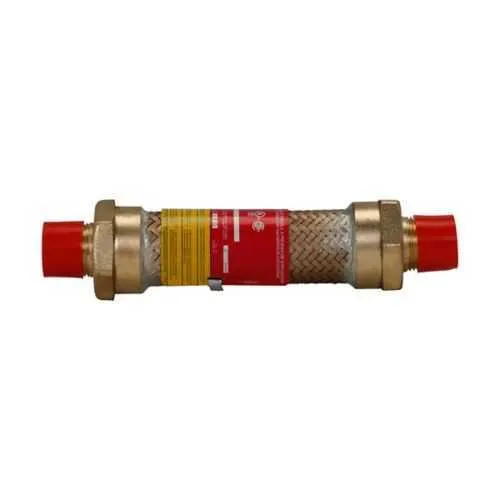

Eaton ECGJH24 Explosionproof Coupling - Class I Division 1
Part Number: ECGJH24
Quick Summary
Eaton ECGJH24 is an explosionproof conduit coupling used to join flexible conduits in hazardous locations. Field installations often struggle to preserve safety ratings during rework, and mismatched fittings can introduce leaks or arcing; this coupling’s forged brass construction and precise threading help maintain integrity and compliance. It is NEC/CEC certified for Class I, Division 1 (and Class II, Division 1) hazardous areas, supported by UL Declaration of Conformity and EU/Canada certification documentation, ensuring global coverage. Designed for durable, dependable installation, it complements 4 in flexible length and 3/4 in trade size fittings, delivering reliable performance for industrial plants, refineries, and offshore equipment.
Product Information
Extended Description
ECGJH24 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ECGJH coupling, 4" flexible length, Male connections both ends, Forged brass, 3/4" trade size
Product Name
Eaton Crouse-Hinds series ECGJH coupling
Catalog Number
ECGJH24
Product Length/Depth
8.13 in
Product Height
1.88 in
Product Width
1.88 in
Product Weight
2.05 lb
UPC
782274252209
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
Gender
Male connections both ends
Flexible length
4"
Trade size
3/4"
Material
Forged brass
Crouse-Hinds series EC Explosionproof Couplings catalog page
ECGJH Declaration of Conformity
ECGJH Declaration of Conformity
ECGJH Declaration of Conformity
IF 1618 - ECGJH Flexible Couplings
Eaton Specification Sheet - ECGJH24
Feature: Explosionproof forged brass construction provides superior mechanical integrity and corrosion resistance in harsh environments. Benefit: Reduces the risk of conduit damage, arcing, and leaks, extending service life in chemical plants, refineries, and marine installations. Application: Ideal for hazardous area wiring where reliability and longevity are critical. Feature: Male connections on both ends simplify field assembly and alignment during retrofit projects. Benefit: Speeds up installations, reduces labor time, and lowers total installed cost. Application: Useful in expansions or rewirings in compact electrical rooms and equipment skids. Feature: 4 in flexible length and 3/4 in trade size align with common industry standards. Benefit: Improves compatibility with existing conduits and reduces stocking of bespoke parts. Application: Fits standard ECGJH umbrella fittings on pathways with tight bends and limited space. Feature: NEC/CEC compliance with Class I Division 1, Class II Division 1 ratings plus UL/EU/Canada conformity documentation. Benefit: Supports global project compliance, minimizes regulatory risk, and simplifies audits. Application: Essential for multinational plants, offshore platforms, and cross-border procurement. Feature: Compact dimensions (8.13 in length, 1.88 in height and width) with a manageable weight of 2.05 lb. Benefit: Easier handling, faster installations, and reduced installation fatigue in crowded equipment cabinets. Application: Industrial control panels, switchgear enclosures, and open-frame conduit runs.
Get a Quick Quote for a Eaton Crouse-Hinds ECGJH24
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ECGJH24?
Enquire Now
FAQs
ECGJH24 uses male connections on both ends and a 4 in flexible length with a 3/4 in trade size, designed for plug-and-play compatibility with standard Crouse-Hinds EC fittings. Its forged brass body resists corrosion in corrosive atmospheres, while the compact 8.13 in length helps in tight spaces. Ensure proper sealing and bonding per installation sheets IF 1618 for reliable performance.
ECGJH24 is rated for NEC/CEC hazardous locations with Class I, Division 1 and Class II, Division 1. It aligns with UL Declaration of Conformity and EU/Canada certification documents, reflecting compliance for cross-border projects. This coverage helps meet regulatory requirements in chemical plants, refineries, and offshore facilities.
Yes. The ECGJH24 is designed for hazardous locations and offers the robustness of forged brass, with explosionproof ratings that suit offshore platforms and marine environments. Its 4 in flexible length and 3/4 in trade size support standard conduit configurations found in marine electrical installations, while formal DoCs and CE/Canadian certifications support marine regulatory needs.
Documentation includes the ECGJH Declaration of Conformity, EU/Canada certification references, and UL DoC. Eaton provides installation sheets such as IF 1618 for flexible couplings, a Crouse-Hinds EC catalog page, and the ECGJH24 datasheet to support inspections and audits in hazardous-area projects.
Choosing ECGJH24 delivers reduced maintenance due to forged brass durability and secure, reliable connections that resist vibration and environmental exposure. The standardized 4 in length and 3/4 in trade size minimize inventory complexity, while NEC/CEC compliance minimizes regulatory risk, translating to lower downtime and a favorable return on investment over the system’s life.
