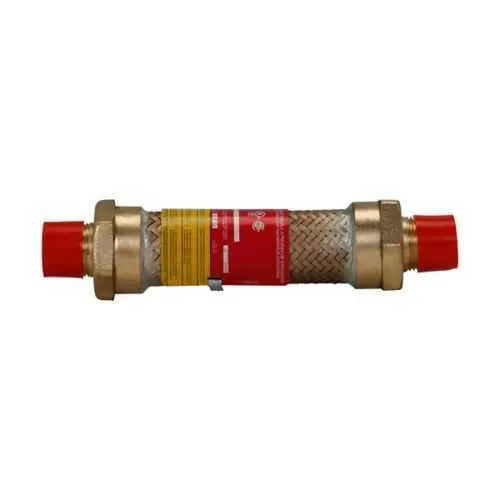

Eaton ECGJH242 Coupling - Hazardous Area NEC/CEC
Part Number: ECGJH242
Quick Summary
ECGJH242 coupling by Eaton is a flexible braided conduit connector for hazardous-area installations. It addresses maintenance headaches in harsh environments where corrosion, vibration, and tight routing threaten uptime. Certified for NEC/CEC hazardous ratings, including Class I Division 1, Class II Division 1, and Class III, it supports compliant, safe operation. The 42-inch flexible length and 3/4-inch trade size add installation flexibility, while forged brass construction delivers durability in demanding facilities, reducing replacement cycles and overall lifecycle costs. Designed for compatibility with Eaton Crouse-Hinds EC explosion-proof fittings, ECGJH242 streamlines panel and conduit planning.
Product Information
Extended Description
ECGJH242 Eaton Crouse-Hinds: FLEXIBLE BRAIDED COUPLING MALE ENDS
Product Name
Eaton Crouse-Hinds series ECGJH coupling
Catalog Number
ECGJH242
Product Length/Depth
46.13 in
Product Height
1.88 in
Product Width
1.88 in
Product Weight
6.5 lb
UPC
782274876955
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
Gender
Male connections both ends
Flexible length
42"
Trade size
3/4"
Material
Forged brass
Crouse-Hinds series EC Explosionproof Couplings catalog page
ECGJH Declaration of Conformity
ECGJH Declaration of Conformity
ECGJH Declaration of Conformity
IF 1618 - ECGJH Flexible Couplings
Eaton Specification Sheet - ECGJH242
Feature: Flexible braided coupling with male-to-male ends provides routing freedom and vibration tolerance. Business impact: reduces conductor stress, lowers field-fabrication costs, and speeds panel installation in harsh environments. Application: ideal for hazardous-area installations near pumps, fans, and motors where conduit routing is constrained and downtime must be minimized. Feature: 42-inch flexible braid length with 46.13-inch overall length and 1.88-inch width/height. Business impact: enables routing around tight equipment footprints, reducing the need for additional elbows and fittings. Application: plant floor integrations and equipment enclosures where space is at a premium. Feature: Forged brass material. Business impact: superior corrosion resistance and mechanical durability in chemical, marine, and industrial settings. Application: long-term service in demanding hazardous locations with frequent thermal cycling. Feature: NEC/CEC certifications with Class I Division 1, Class II Division 1, and Class III ratings. Business impact: simplifies design approval and field compliance, supporting faster audits and safer implementation. Application: engineered systems for refineries, petrochemical plants, and offshore facilities. Feature: Comprehensive documentation and installation support. Business impact: reduces commissioning time and error rates through validated instructions and DoC references. Application: procurement, installation teams, and commissioning engineers seeking documented best practices.
Get a Quick Quote for a Eaton Crouse-Hinds ECGJH242
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ECGJH242?
Enquire Now
FAQs
ECGJH242 is a male-ended flexible braided coupling designed for hazardous/classified locations. It accepts 3/4" trade size conduits, supports NEC/CEC Class I Division 1, II Division 1, and III, and uses forged brass construction for durability. It pairs with Eaton Crouse-Hinds EC explosion-proof fittings and matches the 42" flexible length to accommodate routing with limited straight runs.
Key specs include a 46.13 in overall length, 1.88 in height and width, 6.5 lb weight, 3/4" trade size, and 42" flexible length. It features male-to-male connections, forged brass material, and is rated for hazardous locations under NEC/CEC standards. The catalog number is ECGJH242 and it is documented with UL and DoC references.
Yes. ECGJH242 is rated for NEC hazardous locations Class I Division 1, Class II Division 1, and Class III, aligning with NEC/CEC standards and area classifications for hazardous locations. DoC and UL documentation support cross-border compliance, making it suitable for global deployments in compliant equipment designs.
The 42" flexible length and male-to-male ends simplify routing around equipment, reducing field assembly time. Forged brass offers corrosion resistance and durability, lowering replacement costs. Installation sheets such as IF1618 provide torque and sealing guidance to prevent leaks, and DoC documents streamline audits and QA processes during commissioning.
Access Eaton Crouse-Hinds resources including the Crouse-Hinds EC catalog page, ECGJH declarations of conformity, UL compliance pages, IF1618 installation instructions, and the official Eaton specification sheet. Useful links include the catalog page (pdf), DoC (eu and can), UL pages, IF1618 sheet, and the ECGJH242 specification sheet.
