Eaton ECGJH518 coupling - Hazardous Locations
Part Number: ECGJH518
Quick Summary
ECGJH518 coupling is a flexible conduit connector designed for hazardous-location installations in chemical plants and refineries. Users often struggle with finding durable, code-compliant joins that fit long, winding routes without rework. This ECGJH518 meets NEC/CEC standards and Class I, Division 1 ratings, with Canadian certification documentation supporting cross-border projects. As a robust brass coupling with 1-1/2-inch trade size, it integrates smoothly with industrial conduit fittings and explosion-proof connections. Choosing ECGJH518 translates into quicker installs, reduced maintenance, and improved lifecycle cost for mission-critical facilities. Engineering teams appreciate the documented installation instructions and catalog references that support compliance audits. Overall, this connector delivers reliability in demanding environments while aligning with procurement goals for standardization and safety.
Product Information
Extended Description

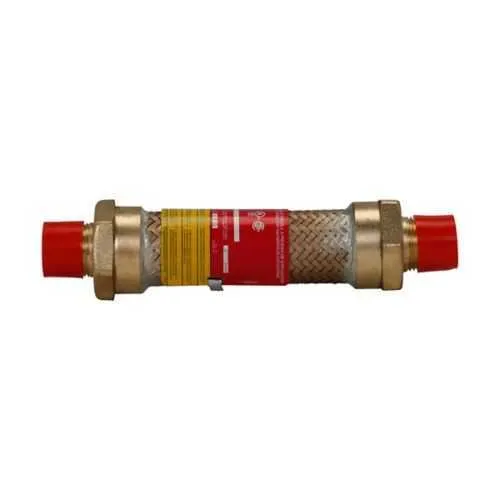

ECGJH518 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ECGJH coupling, 18" flexible length, Male connections both ends, Forged brass, 1-1/2" trade size
Product Name
Eaton Crouse-Hinds series ECGJH coupling
Catalog Number
ECGJH518
Product Length/Depth
24.63 in
Product Height
3.5 in
Product Width
3.5 in
Product Weight
13.2 lb
UPC
782274256108
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
Gender
Male connections both ends
Flexible length
18"
Trade size
1-1/2"
Material
Forged brass
Crouse-Hinds series EC Explosionproof Couplings catalog page
EC Explosionproof Couplings Canadian certification
EC Explosionproof Couplings Canadian certification
EC Explosionproof Couplings Canadian certification
IF 1618 - ECGJH Flexible Couplings
Eaton Specification Sheet - ECGJH518
Feature: 18-inch flexible length with male connections on both ends; Business Impact: simplifies field routing, reduces the need for additional splices, and lowers installation time. Application: ideal for long, winding conduit runs in hazardous areas. Feature: Forged brass construction; Business Impact: delivers outstanding mechanical strength and corrosion resistance in harsh chemicals and damp environments. Application: chemical plants and offshore facilities. Feature: 1-1/2 inch trade size; Business Impact: standardizes compatibility with common conduits and fittings. Application: integrates with existing EC explosion-proof families. Feature: Overall length 24.63 inches and weight 13.2 lb; Business Impact: manageable size and weight for field crews, reducing handling risk. Application: on-site installations with limited support. Feature: NEC/CEC compliance and hazardous-location rating; Business Impact: ensures regulatory compliance and safer installations. Application: essential for audits and approvals. Resource support: installation instructions IF 1618, catalog pages, and certification documents streamline procurement and QA processes. Application: faster approvals and fewer delays in project schedules.
Get a Quick Quote for a Eaton Crouse-Hinds ECGJH518
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ECGJH518?
Enquire Now
FAQs
Begin by verifying the Class I, Division 1 rating and the conduit compatibility. Align the male ends, connect to 1-1/2 inch conduit, and follow installation instructions from IF 1618. Ensure proper torque and sealant or gaskets as required, then perform a functional and leak test. Adhere to safety best practices for hazardous environments.
ECGJH518 features an 18-inch flexible length with a total length of 24.63 inches, and a 1-1/2 inch trade size. It has male connections on both ends and forged brass construction, weighing about 13.2 pounds. It is designed for hazardous locations under NEC/CEC standards with Class I, Division 1 ratings and supports Canadian certification documentation.
Yes. ECGJH518 is rated for hazardous locations including Class I, Division 1, and is designed to meet NEC/CEC requirements. This rating ensures safe operation in explosive atmospheres and supports cross-border projects with Canadian certification documentation for compliance verification.
Documentation includes the Crouse-Hinds EC explosion-proof couplings catalog page, installation sheets IF 1618, and the ECGJH518 specification sheet. Canadian certification pages and UL/IEC-related certification references are available to support audits, cross-border use, and regulatory compliance in hazardous locations.
Using ECGJH518 delivers faster installation due to the 18-inch flexible length and dual-end male connections, reduces spares and maintenance with forged brass durability, and ensures NEC/CEC compliance for hazardous-area builds. It supports standardized conduit fittings, minimizes downtime, and improves lifecycle cost across industrial facilities.
