Eaton ECGJH536 Coupling - Class I, Division 1
Part Number: ECGJH536
Quick Summary

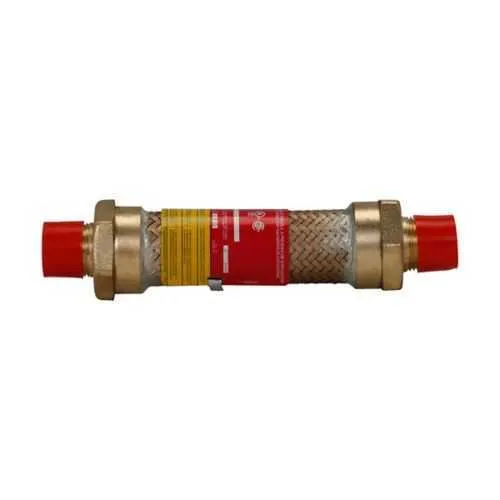

ECGJH536 coupling from Eaton Crouse-Hinds is a rugged, 36-inch flexible conduit coupling designed for hazardous locations. It enables secure male-to-male connections in explosion-proof systems, reducing installation time and field rework in demanding industrial environments. The product carries NEC/CEC compliance with hazardous location ratings—Class I, Division 1, Class II Division 1, and Class III—backed by Canadian certification and Eaton's installation literature. With forged brass construction, a 1-1/2 inch trade size, and an overall length of 42.63 inches, it tolerates harsh service while remaining serviceable in the field. The combination of robustness and documented approvals helps maintenance teams minimize downtime, ensure regulatory compliance, and speed up commissioning on new builds or retrofits in hazardous-area projects.
Product Information
Extended Description
ECGJH536 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ECGJH coupling, 36" flexible length, Male connections both ends, Forged brass, 1-1/2" trade size
Product Name
Eaton Crouse-Hinds series ECGJH coupling
Catalog Number
ECGJH536
Product Length/Depth
42.63 in
Product Height
3.5 in
Product Width
3.5 in
Product Weight
16.69 lb
UPC
782274256504
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
Gender
Male connections both ends
Flexible length
36"
Trade size
1-1/2"
Material
Forged brass
Crouse-Hinds series EC Explosionproof Couplings catalog page
EC Explosionproof Couplings Canadian certification
EC Explosionproof Couplings Canadian certification
EC Explosionproof Couplings Canadian certification
IF 1618 - ECGJH Flexible Couplings
Eaton Specification Sheet - ECGJH536
Feature: Forged brass construction provides excellent corrosion resistance and mechanical durability in demanding environments. Business impact: longer service life and fewer field failures translate to lower maintenance costs and safer operations. Application: suitable for hazardous-area conduit connections where material integrity matters. Feature: 36-inch flexible length enables easier routing through constrained spaces, reducing installation complexity. Business impact: faster assemblies and reduced labor hours. Application: conduit runs in industrial plants with limited clearance and multiple bends.Feature: Two male-end connections and 1-1/2 inch trade size ensure straightforward compatibility with standard conduit systems. Business impact: minimizes part variants and simplifies spares management. Application: retrofit and new-install projects requiring reliable, modular couplings.Feature: Overall length of 42.63 inches and tested weight of 16.69 lb balance robustness with manageable handling. Business impact: safer handling for technicians and predictable field performance. Application: field installations where support and reach are critical.Feature: NEC/CEC compliance and Class I, II, III hazardous-location ratings with Canadian certification guarantee regulatory alignment. Business impact: reduces compliance risk and accelerates approvals for regulated facilities. Application: equipment in hazardous-area electrical installations where safety classifications matter.
Get a Quick Quote for a Eaton Crouse-Hinds ECGJH536
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ECGJH536?
Enquire Now
FAQs
ECGJH536 is designed for Class I, II, III hazardous environments under NEC/CEC. For installation, verify the 42.63-inch overall length and the 36-inch flexible segment to route the conduit properly. Use appropriate seals and tools per IF 1618 instructions to maintain enclosure integrity and ensure a secure, compliant field joint between male-end connectors.
Key specs include forged brass construction for corrosion resistance, two male ends for quick assembly, and a 1-1/2 inch trade size that matches standard conduits. The 36-inch flexible length provides routing ease, while the 42.63-inch overall length supports serviceability. These features collectively reduce downtime and risk of leaks in hazardous areas.
Yes. ECGJH536 is part of the Crouse-Hinds EC explosionproof coupling family. For detailed compatibility, consult Eaton’s EC series catalogs and the ECGJH536 specification sheet, which align the product with standard conduit fittings, installation sheets, and dimensional data for proper pairing with matching components.
ECGJH536 carries NEC/CEC compliance and hazardous-location ratings: Class I, Division 1, Class II Division 1, and Class III, plus area classification as Hazardous/Classified Locations. Canadian certification documents reinforce regulatory acceptance. These certifications simplify regulatory approvals, risk management, and audits for facilities operating in hazardous environments.
ROI comes from reduced downtime, fewer field errors, and longer service life due to robust forged-brass construction. The pre-assembled, two-end design speeds installation, while the certified ratings minimize compliance-related delays. In hazardous-area retrofits, this translates to faster commissioning and lower total cost of ownership.
