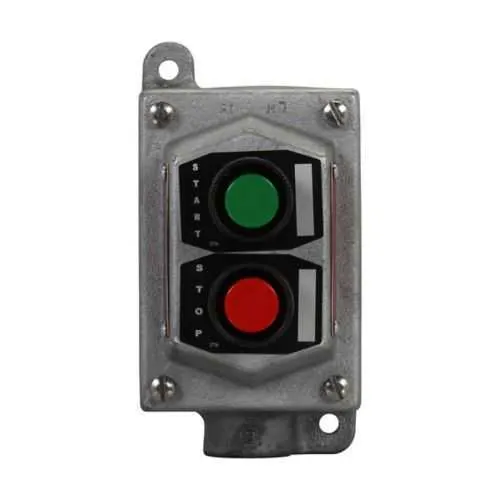

Eaton EDS115 Control Station - Hazardous Locations
Part Number: EDS115
Quick Summary
EDS115 pushbutton control station provides rugged, explosionproof control points for hazardous locations in industrial facilities. Operators and maintenance teams often struggle with safe button access and reliable protection in harsh environments. This device delivers NEC/CEC compliance with Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III, plus NEMA 3, 7, and 9 ratings for credible, field-proven safety. Designed for 600 Vac control circuits and two-button operation in a single-gang enclosure, it reduces wiring complexity, minimizes downtime, and eases procurement across global sites without compromising performance.
Product Information
Extended Description
EDS115 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Two circuit, 2, Single-gang, 2, Dead end, 1/2", 600 Vac
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDS115
Product Length/Depth
3.5 in
Product Height
5.91 in
Product Width
5.81 in
Product Weight
8.7 lb
UPC
782274763507
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit
Style
Dead end
Trade size
1/2"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EDS/EDSX Hazardous Area Control Stations catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
Eaton Specification Sheet - EDS115
Rugged, explosionproof enclosure made from Feraloy iron alloy delivers sustained performance in harsh environments, directly lowering maintenance frequency and extending service life in oil & gas, chemical processing, and mining facilities. Business impact: reduced downtime, lower lifecycle costs, and safer operation. Application: hazardous-area control stations inside refineries and chemical plants. The EDS115 meets NEC/CEC requirements and carries NEC hazardous ratings for Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III, plus a robust NEMA 3/7/9 enclosure. Business impact: streamlined compliance across regions and simplified procurement. Application: installation in outdoor or harsh indoor environments demanding reliable protection. Electrical specifications include 600 Vac rating with two devices and two pushbuttons in a single-gang body. Business impact: compatibility with standard motor control circuits and reduced panel space. Application: retrofit or new-build control panels. Dimensions (3.5 in depth, 5.91 in height, 5.81 in width) and a weight of 8.7 lb enable a compact footprint with easy handling. Business impact: faster installation and easier field servicing. Documentation and downloads such as SP3D design packages, catalog pages, and installation sheets accelerate engineering, procurement, and commissioning tasks. Application: engineering design, spares planning, and commissioning workflows.
Get a Quick Quote for a Eaton Crouse-Hinds EDS115
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDS115?
Enquire Now
FAQs
EDS115 is designed for a single-gang enclosure and uses a 1/2 inch trade size. It accommodates two pushbuttons and two devices in a compact 3.5 inch depth, with overall dimensions suitable for retrofit into standard hazardous-area panels. For proper integration, refer to IF328/IF899/IF372 installation sheets and Eaton catalogs to ensure mounting and gasket compatibility.
The EDS115 carries NEC/CEC standards with hazard classifications Class I Division 1 and 2, Class II Division 1 and 2, and Class III. It is rated for NEMA 3, 7, and 9 enclosures, and is intended for Hazardous/Classified Locations. These certifications support compliance across multiple jurisdictions and simplify cross-site installations in risky environments.
Yes, the EDS115 is rated for 600 Vac. It features two pushbuttons and supports two devices within a single-gang, two-circuit configuration. This setup is ideal for control stations that require two separate control actions while maintaining a compact footprint in hazardous locations.
Ideal applications include oil and gas processing, chemical plants, mining, and other operations in hazardous environments needing explosionproof controls. The unit’s Class I/II/III ratings, along with NEMA 3/7/9 protection, make it suitable for installation on equipment rooms, battery rooms, and outdoor substations where reliable operation and compliance are critical.
Comprehensive resources include SP3D design packages, EDS/EDSX control stations catalog pages, Canadian certification documents, installation sheets (IF 328 and related sheets), and the Eaton specification sheet for EDS115. These assets support design validation, procurement, installation, and ongoing maintenance, reducing project risk and accelerating timelines.
