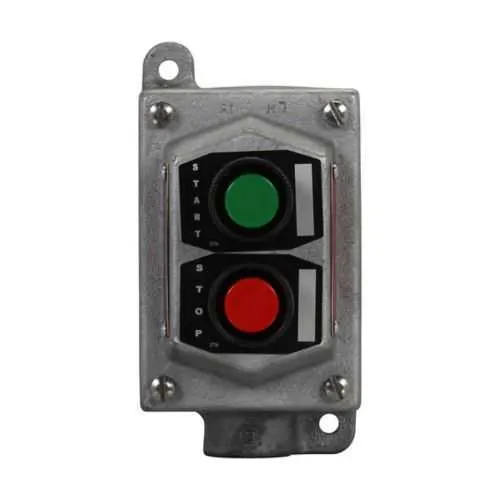

Eaton EDS1155 Pushbutton Control Station - NEC/CEC

Part Number: EDS1155
EDS1155
Manufacturer
Eaton Crouse-Hinds
Part number
EDS1155
Category

Quick Summary

EDS1155 pushbutton control station enables reliable start/stop control in hazardous locations. In many facilities, operators struggle with control devices that fail under harsh atmospheres or fail to meet regulatory expectations. This unit integrates NEC/CEC-compliant ratings with hazardous-location approvals, including Class I Division 1 and 2, Class II Division 1 and 2, and Class III, plus NEMA 3, 7, 9. The combination of rugged Feraloy iron alloy construction and a 600 Vac rating delivers proven safety and durability. For facilities seeking compliant, long-life control devices, the EDS1155 supports single-gang installation with two pushbuttons and a 1/2" trade size, aligning with Eaton’s EDS/EDSX family for streamlined maintenance and procurement.

Product Information

Extended Description

EDS1155 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Two circuit, 2, Single-gang, 2, Dead end, 1/2"
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDS1155
Product Length/Depth
3.5 in
Product Height
5.91 in
Product Width
5.81 in
Product Weight
8.8 lb
UPC
782274763651
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit
Style
Dead end
Trade size
1/2"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations EDS/EDSX Hazardous Area Control Stations catalog page EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies Eaton Specification Sheet - EDS1155
Explosion-proof, Feraloy iron alloy enclosure provides enhanced protection in hazardous locations, reducing the risk of ignition and equipment downtime in oil and gas or chemical processing environments. This translates to fewer maintenance cycles and lower total cost of ownership while meeting stringent industry standards. The 600 Vac rating supports common industrial power requirements, enabling reliable control circuits without mid-cycle voltage drops or nuisance trips. With two pushbuttons and two devices in a single-gang, 1/2" trade size, you can simplify panel layouts and wiring, improving installation efficiency and reducing cabinet space requirements. Compatibility with standard EDS/E DSX catalog components and installation sheets (IF328 family) minimizes custom hardware needs and accelerates commissioning. The unit’s compact footprint plus NEMA 3, 7, 9 ratings boost reliability in rugged environments and support easier field service.

Get a Quick Quote for a Eaton Crouse-Hinds EDS1155

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EDS1155? Enquire Now

FAQs

The EDS1155 is designed for single-gang device bodies and uses a 1/2 inch trade size, housing two pushbuttons that operate two devices. For installation, follow the IF328 instruction sheets for EDS, EFS, EDSC and EFSC single- and two-gang bodies. Verify enclosure suitability for hazardous areas and secure with standard mounting hardware to ensure compliant, reliable operation.
The EDS1155 carries NEC/CEC compliance with hazardous-location ratings including Class I Division 1 and 2, Class II Division 1 and 2, and Class III. It also has a NEMA rating of 3, 7, 9 and is approved for Hazardous/Classified Locations, supporting safe operation in oil, gas, chemical, and mining environments.
EDS1155 is rated for 600 Vac operation and contains two pushbuttons across two devices, enabling two circuits in a single-gang enclosure. This arrangement supports compact control schemes while maintaining safety and reliability in demanding environments. The unit weighs 8.8 lb and uses a 1/2" trade size, helping fit standard panel configurations.
Industries such as oil and gas, chemical processing, mining, and other hazardous facilities benefit from the EDS1155. Its explosion-proof Feraloy housing, 600 Vac rating, dual pushbuttons, and multiple hazard-location certifications support safe start/stop control in areas with aggressive atmospheres and stringent regulatory requirements.
The EDS1155 is part of Eaton’s EDS/EDSX hazardous-area control-station family. It is supported by downloadable resources including catalog pages, 3D design packages, installation sheets, and certification documents. Access guides such as IF328 instruction sheets for single- and two-gang bodies and the Eaton Specification Sheet ensures accurate sizing, compatibility, and rapid commissioning.
