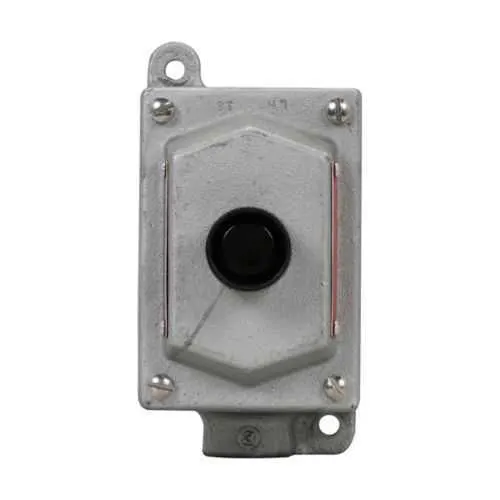

Eaton Crouse-Hinds EDS1184SA Pushbutton Station - NEMA 7-3-9
Part Number: EDS1184SA
Quick Summary
EDS1184SA pushbutton control station is a rugged solution for local control in hazardous locations. Facilities struggle with enclosure integrity, corrosion, and compliance gaps when deploying control points in explosive atmospheres. It meets NEC/CEC standards and carries NEMA 7/3/9 ratings for Hazardous/Classified Locations, strengthening safety and regulatory adherence. Copper-free aluminum construction, 1/2 inch trade size, and single-gang design simplify installation, reduce maintenance, and extend service life. For engineers and buyers, the combination delivers faster sourcing, lower total cost of ownership, and dependable operation in harsh environments.
Product Information
Extended Description
EDS1184SA Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Copper-free aluminum, Single circuit universal, 1, Single-gang, 1, Dead end, 1/2", 600 Vac
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDS1184SA
Product Length/Depth
3.5 in
Product Height
5.91 in
Product Width
5.81 in
Product Weight
4 lb
UPC
662276931848
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class III Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2
NEMA Rating
7 3 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
1
Number of devices
1
Normal position
Single circuit universal
Style
Dead end
Trade size
1/2"
Material
Copper-free aluminum
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EDS/EDSX Hazardous Area Control Stations catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
Eaton Specification Sheet - EDS1184SA
Hazardous-location enclosure is copper-free aluminum, delivering a rugged, corrosion-resistant housing that reduces maintenance and lifecycle costs in harsh environments. This design supports long service intervals in chemical plants, oil and gas facilities, and mining operations where exposure to dust, chemicals, and moisture is common. Single-gang, 1/2 in trade size form factor simplifies panel layouts and wiring, enabling faster installation and easier future upgrades. With a 3.5 in depth, 5.81 in width, and a 4 lb weight, the EDS1184SA offers a compact footprint without compromising ruggedness. Operating at 600 Vac and rated for 1 device and 1 pushbutton, this pushbutton control station integrates with standard industrial controls and motor circuits. The 'With pushbuttons' enclosure type ensures ready-to-wire assembly and field reliability in hazardous locations. NEC/CEC compliance paired with NEMA ratings of 7, 3, 9 provides is a strong regulatory and environmental guarantee for hazardous and classified locations. Area classification shows suitability for Hazardous/Classified Locations, making it a dependable choice for environments with ignition hazards. Additionally, Eaton offers installation and design resources, including SP3D design packages, catalogs, and IF instruction sheets, to shorten engineering cycles. UL certifications and compatibility with catalog pages help ensure quick approvals and predictable maintenance planning, contributing to lower overall project risk and longer asset uptime.
Get a Quick Quote for a Eaton Crouse-Hinds EDS1184SA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDS1184SA?
Enquire Now
FAQs
The EDS1184SA is a hazardous-location control station featuring a copper-free aluminum enclosure, single-gang housing, 1/2 inch trade size, and 1 pushbutton on 1 device. It supports 600 Vac and has a compact 3.5 in depth, 5.81 in width, and 5.91 in height, making it ideal for space-constrained panels in harsh environments.
Yes. It is designed for Hazardous/Classified Locations and carries NEC/CEC compliance with NEMA 7/3/9 ratings. The product is specified for Class I, Division 1 and Division 2, Class II, Division 1 and 2, and Class III hazardous environments, aligning with installation and audit requirements in industrial facilities.
The EDS1184SA uses a single-gang, 1/2 inch trade size footprint for streamlined mounting and wiring. Its copper-free aluminum enclosure reduces corrosion concerns, while the 3.5 inch depth keeps panel budgets in check. Installation resources include IF instruction sheets and design packages to accelerate engineering and ensure reliable field wiring.
Ideal for hazardous-area control points in chemical plants, oil and gas facilities, and mining operations, the EDS1184SA provides reliable local control at 600 Vac. Its NEMA 7-3-9 ratings and Hazardous/Classified Locations designation make it suitable for ignition-risk zones where durability and compliance are essential.
The copper-free aluminum enclosure and robust hazardous-location certifications reduce maintenance frequency and replacement costs, while ensuring regulatory compliance. The compact form factor simplifies installation, accelerating project timelines. Access to SP3D models, catalogs, and installation instructions further lowers engineering risk and supports predictable long-term asset performance.
