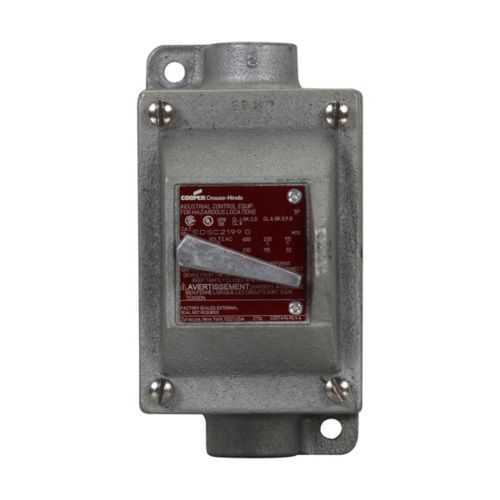

Eaton EDS21100SA Motor Starter - Hazardous Locations
Part Number: EDS21100SA
Quick Summary
EDS21100SA motor starter is a rugged control station designed to safely start and stop motors in hazardous environments. Many buyers struggle with safe, code-compliant motor control in Class I/II environments, risking nonconformance and downtime. This unit carries NEC/CEC compliance, UL certification visibility, and harsh-location ratings (Class I, Division 1 & 2; Class II/III), plus NEMA 7/9/3. Its copper-free aluminum enclosure and single-gang, 3/4 hub design streamline installation and reduce total cost of ownership, while enabling reliable remote control in automation systems.
Product Information
Extended Description
EDS21100SA Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS manual motor starter control station, Two-pole, With switch, 1 HP, With one 3/4" hub, Copper-free aluminum, Single-gang, Dead end, 3/4"
Product Name
Eaton Crouse-Hinds series EDS manual motor starter control station
Catalog Number
EDS21100SA
Product Length/Depth
3.5 in
Product Height
5.91 in
Product Width
5.06 in
Product Weight
3.83 lb
UPC
662276931985
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
7 9 3
Enclosure type
With switch
Number of gangs
Single-gang
Configuration
Two-pole
Style
Dead end
Trade size
3/4"
Horsepower
1 hp
Hub style
With one 3/4" hub
Material
Copper-free aluminum
EDS Series Explosionproof Motor Starter Control Stations catalog page
EDS Explosionproof Motor Starter Control Stations UL certification
EDS Explosionproof Motor Starter Control Stations UL certification
IF 372 - EDS Notice
IF 372 - EDS Notice
IF 372 - EDS Notice
Eaton Specification Sheet - EDS21100SA
Feature: Two-pole configuration with an integrated switch housed in a copper-free aluminum enclosure. Business Impact: Delivers compact, maintenance-friendly control that resists corrosion and reduces replacement costs in hostile environments. Application: Ideal for small-motor starts in Class I/ Division 1 and Class II locations, where safety and reliability are critical. Feature: Single-gang enclosure, 5.06 in wide x 5.91 in high, with 3.5 in depth and a 3/4-inch hub. Business Impact: Simplifies mounting and wiring, reduces panel space, and speeds installation in control panels. Application: Fits standard electrical boxes and supports straightforward wiring in automated lines. Feature: 1 HP rating and dead-end configuration. Business Impact: Aligns with common small-motor loads while preserving thermal margin and reducing drive sizing. Application: Suitable for fans, pumps, and conveyors in hazardous environments. Feature: NEMA 7/9/3 compatibility and NEC/CEC compliance. Business Impact: Ensures broad regulatory acceptance and long-term lifecycle in demanding facilities. Application: Trusted in chemical processing, oil & gas, and manufacturing plants requiring explosion-proof motor control.
Get a Quick Quote for a Eaton Crouse-Hinds EDS21100SA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDS21100SA?
Enquire Now
FAQs
The EDS21100SA uses a two-pole design with a built-in switch inside a copper-free aluminum enclosure, mounted in a single-gang enclosure with a 3/4 inch hub. Ensure Class I/Division 1 or 2 or Class II/III area classification per NEC/CEC, and follow local wiring practices for explosion-proof devices. The compact 5.06 in by 5.91 in footprint aids panel integration and simplifies conduit routing.
This unit is designed for NEC/CEC compliance and hazardous locations, with Class I Division 1&2, Class II Division 1&2, and Class III ratings, plus NEMA 7/9/3 compatibility. It is documented for UL certification in hazardous locations, and the installation documents cover IF notices and specification sheets to support compliance audits.
Yes. The EDS21100SA is specified for 1 hp, two-pole operation, with a dead-end style and a 3/4 inch hub. This makes it suitable for small motor applications such as pumps, fans, or conveyors in hazardous environments while meeting regulatory requirements.
Copper-free aluminum provides improved corrosion resistance, lighter weight, and better thermal performance in harsh environments. This reduces maintenance intervals, minimizes galvanic corrosion with fasteners and wiring, and enhances long-term reliability in explosion-protected motor control stations.
The unit is a single-gang enclosure with dimensions 5.06 in wide and 5.91 in high, 3.5 in depth, and includes one 3/4" hub. This footprint supports straightforward wiring and integration into standard control panels, with guided installation documentation to help match it to existing Eaton Crouse-Hinds EDS components.
