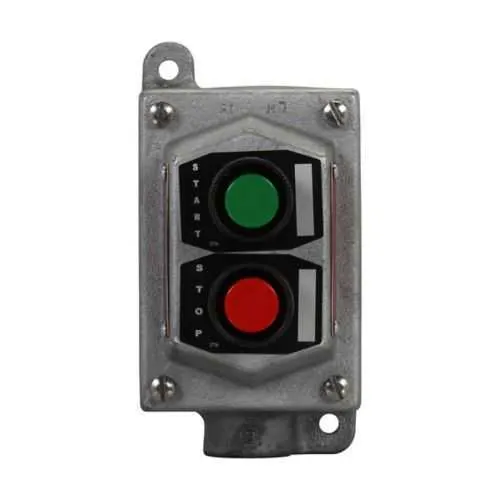

Eaton EDS215 Pushbutton Station - Hazardous Locations

Part Number: EDS215
EDS215
Manufacturer
Eaton Crouse-Hinds
Part number
EDS215
Category

Quick Summary

EDS215 pushbutton station is designed for hazardous locations and heavy-duty control circuits. This rugged unit is built to endure demanding environments and minimize downtime in critical processes. Maintenance teams often struggle with rugged enclosures that meet safety codes while offering straightforward field servicing. The EDS215 delivers NEC/CEC compliance with hazardous ratings including Class I, Division 1 and 2; Class II, Division 1 and 2; and Class III, along with a NEMA 3, 7, 9 enclosure. For installers and operators, the compact single-gang footprint and 600 Vac rating simplify panel design and wiring. Coupled with a Feraloy iron alloy body, it provides reliable protection in oil and gas, chemical processing, mining, and other hazardous-area applications.

Product Information

Extended Description

EDS215 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, 2 circuit, 2, Single-gang, 2, Dead end, 3/4", 600 Vac
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDS215
Product Length/Depth
5.9 in
Product Height
5.81 in
Product Width
3.5 in
Product Weight
8.35 lb
UPC
782274763538
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit
Style
Dead end
Trade size
3/4"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations EDS/EDSX Hazardous Area Control Stations catalog page EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies Eaton Specification Sheet - EDS215
Feature: Feraloy iron alloy enclosure provides rugged, explosion-resistant construction. Business impact: Extends service life in corrosive and high-impact environments, reducing maintenance costs and downtime. Application: Ideal for oil & gas, mining, and chemical processing facilities where reliability matters. Feature: Two pushbuttons and two devices in a single-gang, dead-end enclosure with a 3/4" trade size. Business impact: Streamlines panel design and wiring, saving space and installation time. Application: Compact control stations in crowded electrical panels. Feature: 600 Vac voltage rating supports demanding industrial control circuits. Business impact: Enables safe operation of high-voltage control lines, improving system integrity and safety margins. Application: Hazardous-location control stations in process plants. Feature: NEC/CEC compliance with hazard area ratings (Class I, Division 1&2; Class II, Division 1&2; Class III) and NEMA 3, 7, 9. Business impact: Reduces regulatory risk, speeds approvals, and simplifies procurement. Application: Projects requiring stringent safety and environmental standards. Feature: Compact footprint (5.9 in L, 5.81 in H, 3.5 in W) and 8.35 lb weight. Business impact: Easier installation in tight spaces and quicker commissioning. Application: Retrofit or new installations where space is at a premium.

Get a Quick Quote for a Eaton Crouse-Hinds EDS215

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EDS215? Enquire Now

FAQs

When deploying the EDS215, use the single-gang, dead-end enclosure with a 3/4" trade size and 600 Vac rating. Follow NEC/CEC guidelines and use the proper installation sheets (IF328 family) and catalogs. The unit’s two pushbuttons and two devices fit compact panel spaces, simplifying wiring and reducing field assembly time in hazardous areas.
Yes. The EDS215 is designed to complement Eaton Crouse-Hinds explosion-proof control families. It provides two devices and two pushbuttons in a single-gang body, aligning with EDS/EFS mounting patterns. Compatibility is enhanced by the same mounting footprints, enclosure materials, and hazard-location ratings, enabling modular control station configurations with minimal panel disruption.
The EDS215 carries NEC/CEC compliance with hazardous ratings including Class I Division 1 and 2, Class II Division 1 and 2, and Class III, plus a NEMA 3 7 9 enclosure. These certifications confirm suitability for hazardous environments and provide regulatory confidence, helping to mitigate risk, streamline approvals, and ensure safe operation in oil/gas, mining, and chemical processing facilities.
Key specs include a 600 Vac voltage rating, two pushbuttons, two devices, single-gang enclosure, and a 3/4 inch trade size. The unit is built with Feraloy iron alloy for rugged service and supports 2-circuit normal operation. It is intended for hazardous locations and compatible with standard control circuits in demanding industrial settings.
Resources include SP3D design packages for EDS/EFS explosion-proof stations, installation sheets IF328, and a catalog page for EDS/EDSX control stations. The Eaton specification sheet for EDS215 is available, along with Canadian certification references. These materials help with design validation, procurement, and compliant field installation.
