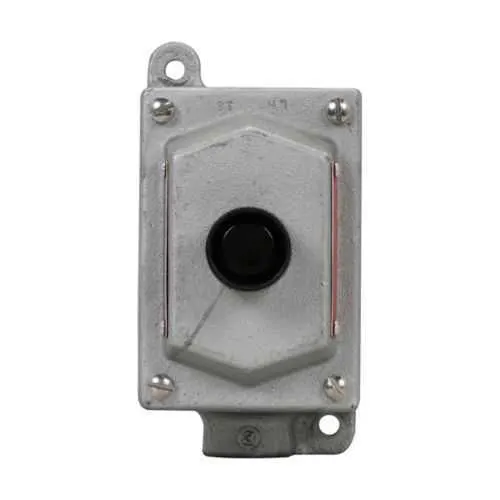

Eaton Crouse-Hinds EDS2184 Pushbutton - Hazardous Locations

Part Number: EDS2184
EDS2184
Manufacturer
Eaton Crouse-Hinds
Part number
EDS2184
Category

Quick Summary

EDS2184 Pushbutton Control Station is a rugged signaling unit for hazardous-location control in industrial facilities. Designed to withstand harsh environments, it helps maintenance teams avoid unscheduled outages by delivering reliable, explosion-protected operation in a compact single-gang footprint. Key certifications support compliance across NEC/CEC requirements and explosion-protection standards, including Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III, with NEMA ratings 3, 7 and 9. From installation efficiency to ongoing safety, this control station supports reliable signaling with a 600 VAC rating and a durable Feraloy iron alloy enclosure, making it a practical fit for hazardous-area controls.

Product Information

Extended Description

EDS2184 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Single circuit universal, 1, Single-gang, 1, Dead end, 3/4",
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDS2184
Product Length/Depth
5.9 in
Product Height
5.81 in
Product Width
3.5 in
Product Weight
8.35 lb
UPC
782274763804
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
1
Number of devices
1
Normal position
Single circuit universal
Style
Dead end
Trade size
3/4"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations EDS/EDSX Hazardous Area Control Stations catalog page EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations Eaton Specification Sheet - EDS2184
Feature: Explosion-protected Feraloy iron alloy enclosure provides rugged durability. Business Impact: Reduces downtime and maintenance costs by withstanding impact, heat, and corrosive environments. Application: Ideal for chemical plants and oil & gas facilities where equipment is exposed to harsh conditions. Feature: 600 VAC voltage rating supports standard industrial control circuits. Business Impact: Enables seamless integration with existing motor starters and safety interlocks, lowering wiring complexity and commissioning time. Application: Control stations in hazardous zones powering pumps, fans, and feeders. Feature: Compact single-gang, 3/4" trade size with one pushbutton. Business Impact: Saves panel space and simplifies retrofits in crowded control rooms, improving overall panel density. Application: Retrofit projects in aging plants with limited enclosure space. Feature: NEC/CEC compliance and hazardous area ratings (Class I, Division 1 & 2; Class II, Division 1 & 2; Class III). Business Impact: Ensures regulatory alignment and risk reduction, easing procurement audits and insurance considerations. Application: Critical safety installations in Process and Chemical sectors. Feature: NEMA ratings 3, 7, 9 deliver weather and explosion protection. Business Impact: Extends service life in outdoor and harsh indoor environments, reducing replacement cycles. Application: Outdoor substations, outdoor equipment rooms, and marine facilities. Feature: Durable construction and documented installation resources (catalog pages, UL certifications, SP3D package). Business Impact: Streamlines sourcing and engineering approval, shortening project timelines. Application: New builds and upgrades requiring certified explosion-protected control stations. Feature: Documentation and compatibility with standard Eaton architectures (IF899 instructions, installation sheets). Business Impact: Eases training, maintenance planning, and cross-compatibility with existing Eaton components. Application: System integrators and maintenance teams implementing Hazardous Area Control Stations across facilities.

Get a Quick Quote for a Eaton Crouse-Hinds EDS2184

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EDS2184? Enquire Now

FAQs

To install the EDS2184, verify the panel is rated for Class I, II, and III hazardous locations and use the single-gang, 3/4" footprint. Mount the unit in a compliant enclosure, wire per the IF899 instructions, and connect to the control circuit using standard field wiring practices. Utilize the SP3D and catalog documentation for precise fit and routing to ensure proper clearances and termination safety.
Key specs include a 600 VAC voltage rating, 1 pushbutton, 1 device, and single-gang construction in a 3/4" trade size. The enclosure uses Feraloy iron alloy for rugged duty, and the unit supports NEC/CEC compliance with hazardous area classifications Class I, Division 1 & 2, Class II, Division 1 & 2, and Class III, along with NEMA 3, 7, 9 protection.
The EDS2184 is well-suited for industries with hazardous locations, including oil and gas, chemical processing, mining, water treatment, and power generation. Its compact single-gang form factor enables retrofits in space-constrained panels, while the explosion-protected design supports reliable operation in harsh environments.
The EDS2184 carries NEC/CEC compliance for hazardous locations with Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III ratings, plus NEMA 3, 7, 9 protection. UL certification and relevant installation instructions are available, ensuring regulatory alignment and safe operation in certified facilities.
By combining explosion-protected reliability with durable materials, the EDS2184 reduces downtime and maintenance frequency in hazardous environments. Availability of SP3D design packs, catalogs, and installation sheets accelerates procurement and commissioning, lowering total cost of ownership through faster projects, fewer spare parts, and streamlined maintenance planning.
