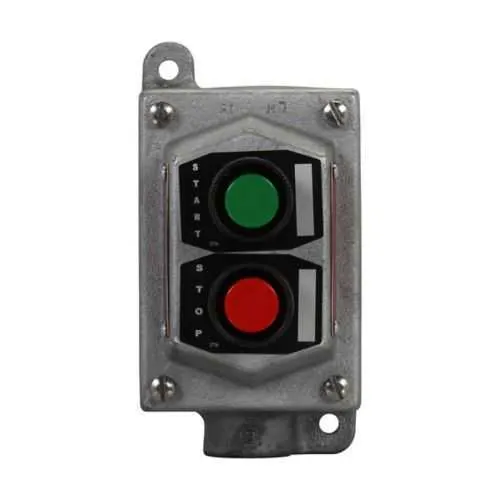

Eaton EDS2192 Pushbutton Control Station - Explosionproof

Part Number: EDS2192
EDS2192
Manufacturer
Eaton Crouse-Hinds
Part number
EDS2192
Category

Quick Summary

EDS2192 pushbutton control station by Eaton provides a rugged, explosionproof interface for hazardous-location motor control and process automation. Users contend with downtime due to non-compliant enclosures and difficult wiring in challenging environments. This unit carries NEC/CEC compliance and hazardous-location ratings such as Class I Division 1, Class II Division 2, and NEMA 3, 7, 9, improving safety and uptime. Combined with a 600 Vac rating, two pushbuttons, and a compact single-gang footprint, it streamlines installation while reducing maintenance costs. In practice, it aligns with industry standards and supports reliable control across oil & gas, chemical processing, and mining facilities.

Product Information

Extended Description

EDS2192 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Two circuit universal, 2, Single-gang, 2, Dead end, 3/4", 600 Vac
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDS2192
Product Length/Depth
3.5 in
Product Height
5.91 in
Product Width
5.81 in
Product Weight
8.14 lb
UPC
782274763828
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit universal
Style
Dead end
Trade size
3/4"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations EDS/EDSX Hazardous Area Control Stations catalog page EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies Eaton Specification Sheet - EDS2192
Feature: Explosionproof construction using a feraloy iron alloy enclosure delivers dependable operation in explosive atmospheres. Business Impact: Reduces ignition risk and extends service life, lowering maintenance costs in hazardous environments. Application: Chemical plants, oil refineries, and mining sites where control stations operate near high-energy equipment. Feature: Two pushbuttons and two devices in a single-gang, 3/4 in trade size enable compact control logic and minimize panel space, speeding installation. Business Impact: Simplifies wiring diagrams and reduces field wiring time, leading to lower labor costs and faster commissioning. Application: Local start/stop control in compact control panels in process industries. Feature: 600 Vac voltage rating supports standard power distribution compatibility while maintaining safety margins. Business Impact: Enables direct integration with common motor starters and distribution gear, reducing adapters. Application: Hazardous-area motor control near distribution panels. Feature: Dead end style with a single-gang footprint enhances accessibility and maintenance. Business Impact: Easier field service and clearer labeling, lowering downtime during replacements. Application: Hazardous locations with tight panel real estate. Feature: Material selection and enclosure type With pushbuttons ensure reliable operation in demanding environments. Business Impact: Superior impact resistance and long service life, lowering total cost of ownership. Application: Oil & gas, chemical processing, and mining control stations. Feature: NEC/CEC compliance, Class I, Division 1 & 2, Class II Division 1 & 2, and Class III ratings, plus NEMA 3, 7, 9 protection. Business Impact: Regulatory alignment reduces risk, fines, and retrofit costs; supports global deployment. Application: Global hazardous-location installations across construction and infrastructure projects. Feature: Ready-to-use installation documentation and compatibility with standard EDS/EDSX devices. Business Impact: Accelerates spec-to-install cycles and minimizes redesign, improving project timelines. Application: New installations and retrofits in hazardous areas.

Get a Quick Quote for a Eaton Crouse-Hinds EDS2192

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EDS2192? Enquire Now

FAQs

The EDS2192 is designed for single-gang installations with two pushbuttons and a 3/4" trade size, compatible with standard EDS/EDSX hazardous-area control station bodies. It fits common wiring schemes, supports 600 Vac circuits, and pairs with typical field devices, simplifying retrofits and new builds in Class I and II environments.
The EDS2192 carries NEC/CEC compliance and hazardous-location ratings, including Class I Division 1 and 2, Class II Division 1 and 2, and Class III, along with NEMA 3, 7, and 9 enclosure protections. These certifications validate safe operation in explosive atmospheres and help meet regulatory requirements for oil, gas, and chemical facilities.
Best-suited for hazardous-area control tasks, the EDS2192 supports local stop/start functions near hazardous equipment, motor control, and process interlocks. Its explosionproof construction, 600 Vac rating, and two-pushbutton configuration suit pump stations, valve actuation, and safety interlocks in oil & gas, chemical processing, and mining operations.
Installers benefit from a compact single-gang footprint, 3/4" trade size, and two-device capability, which simplify conduit runs and wiring. The feraloy iron alloy enclosure provides robust protection, while pre-approved NEC/CEC classifications reduce rework. Accessory documentation and IF 328/ SP3D resources from Eaton further expedite setup and commissioning.
Support materials for the EDS2192 include IF 328 instruction sheets, SP3D design packages, and the Eaton EDS/EDSX catalog pages, along with the Eaton specification sheet for EDS2192. These resources cover mounting, wiring diagrams, and compliance details to facilitate audits and project approvals.
