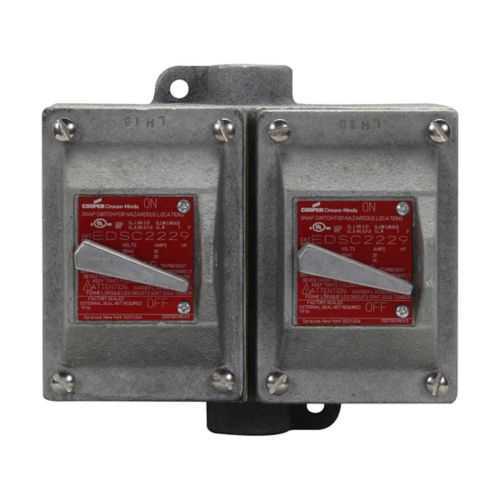

Eaton EDS2229 Snap Switch Station - Hazardous Locations

Part Number: EDS2229
EDS2229
Manufacturer
Eaton Crouse-Hinds
Part number
EDS2229
Category

Quick Summary

EDS2229 snap switch control station provides reliable local control for heavy machinery in hazardous locations. Operators often struggle with downtime and regulatory compliance when equipment isn’t rated for Class I/II environments. This unit is NEC/CEC compliant and rated for Class I Division 1 and 2, Class II Division 1 and 2, and Class III, with a rugged NEMA 3, 7, 9 enclosure for durable protection. Designed for rugged industrial use, it pairs with a 3/4 inch hub and two pushbuttons, enabling smooth integration into electrical protection and circuit control systems while reducing on-site commissioning time and maintenance costs.

Product Information

Extended Description

EDS2229 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS snap switch control station, 20A, With switch, With one 3/4" hub, Feraloy iron alloy, 2, Two-gang, Single-pole, 2, 120-277V, Dead end, Single-pole, 3/4", 120-277 Vac
Product Name
Eaton Crouse-Hinds series EDS snap switch control station
Catalog Number
EDS2229
Product Length/Depth
5.06 in
Product Height
5.875 in
Product Width
7.19 in
Product Weight
17.16 lb
UPC
782274763859
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With switch
Trade size
3/4"
Number Of Poles
Single-pole
Switch function
Single-pole
Number of gangs
Two-gang
Style
Dead end
Voltage rating
120-277 Vac
Amperage Rating
20A
Hub style
With one 3/4" hub
Number of devices
2
Number of pushbuttons
2
Primary voltage range
120-277V
Material
Feraloy iron alloy
EDS and EDSX Fully Assembled Snap Switches catalog page EDS and EFD Explosionproof Snap Switches Canadian certification - snap switches EDS and EFD Explosionproof Snap Switches Canadian certification - snap switches EDS and EFD Explosionproof Snap Switches Canadian certification - snap switches EDS and EFD Explosionproof Snap Switches Canadian certification - snap switches IF 242 - EDS and EDSC Control Stations IF 242 - EDS and EDSC Control Stations Eaton Specification Sheet - EDS2229
Feature: 20A, 120-277V rating. Business Impact: Supports standard motor loads and lighting across a wide voltage band, reducing spare parts and stocking costs. Application: Ideal for stop/start control of conveyors, pumps, and processing equipment in hazardous locations. Feature: Two-gang, two-pushbutton configuration with one 3/4 inch hub. Business Impact: Simplifies wiring, reduces panel depth, and speeds field retrofits by minimizing conduit runs. Application: Suitable for dual-device logic in Class I/Division environments where space is at a premium. Feature: Feraloy iron alloy enclosure. Business Impact: Delivers rugged strength and heat resistance for tough industrial environments. Application: Mining, chemical processing, and heavy manufacturing where impact and abrasion are a concern. Feature: Hazardous/Classified Locations certification, NEC/CEC compliance, and NEMA ratings 3, 7, 9. Business Impact: Helps customers meet stringent safety and compliance requirements, reducing regulatory risk and downtime. Application: Install in areas with Class I/II/III, Division 1/2 classifications and demanding enclosures. Feature: 3/4" hub, dead-end style, with switch; primary voltage 120-277V; two devices. Business Impact: Flexible mounting and straightforward wiring plan; improves reliability and maintenance. Application: Control stations in electrical protection and circuit control systems across industrial automation.

Get a Quick Quote for a Eaton Crouse-Hinds EDS2229

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EDS2229? Enquire Now

FAQs

Yes. The EDS2229 is a two-gang snap switch control station designed to retrofit or integrate into standard hazardous-location panels. It features a single 3/4" hub and a 120-277V, 20A rating, compatible with common conduit wiring practices and EDS/EDSC installations. Its NEC/CEC compliance and two-pushbutton configuration simplify upgrading existing equipment without extensive rewiring.
EDS2229 provides 20A at 120–277 VAC, two devices in a two-gang enclosure, with one 3/4" hub. It operates in hazardous locations with a Feraloy iron alloy enclosure. The unit is rated for single-pole switching, dead-end configuration, and is compatible with 3/4" hub connections, ensuring straightforward wiring and reliable performance in Class I/II/III environments.
Best suited for industries with hazardous/classified locations, including mining, chemical processing, oil and gas, and heavy manufacturing. The rugged Feraloy enclosure, NEC/CEC compliance, and NEMA ratings 3, 7, 9 deliver durable control in harsh environments. The 2-gang, two-pushbutton arrangement supports stop/start control of conveyors, pumps, and other equipment in safety-critical installations.
EDS2229 is certified for Hazardous/Classified Locations with NEC/CEC standards, including Class I Division 1 and 2, Class II Division 1 and 2, and Class III. It carries NEMA ratings 3, 7, and 9, providing protection against dust, moisture, and hazardous atmospheres. These certifications support safe operation, regulatory compliance, and safer maintenance in demanding facilities.
Eaton provides installation sheets IF 242 for EDS and EDSC Control Stations and a dedicated specification sheet. Access the IF 242/instruction sheets and the Eaton datasheet for wiring diagrams, hub details, and mounting guidelines. Using these resources shortens commissioning, reduces wiring errors, and speeds time-to-operational readiness in hazardous locations.
