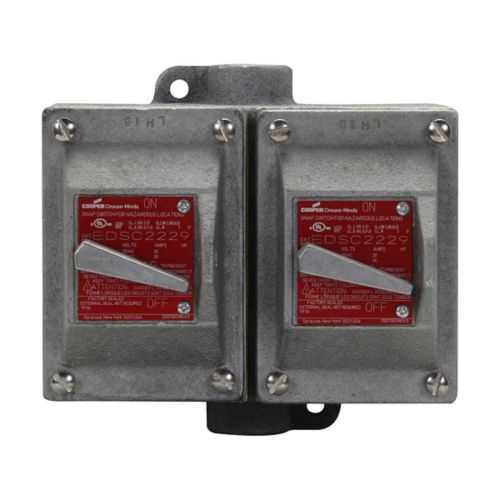

Eaton Crouse-Hinds EDS2230 Snap Switch - Hazardous Locations

Part Number: EDS2230
EDS2230
Manufacturer
Eaton Crouse-Hinds
Part number
EDS2230
Category

Quick Summary

EDS2230 is a snap switch control station designed for reliable two-gang, three-pole control in hazardous environments. In the field, wiring complexity, tight spaces, and safety compliance pressures challenge project timelines and uptime. This unit carries NEC/CEC compliance and hazardous-location ratings (Class I, Division 1 and 2; Class II, Division 1 and 2; Class III) along with a NEMA 3, 7, 9 protection profile, enabling safer operation in tough conditions. For engineers and procurement teams, the 20A, 120–277V rating, with a hub and a rugged Feraloy iron alloy enclosure, translates into faster installations, reduced spares, and dependable performance in industrial control panels.

Product Information

Extended Description

EDS2230 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS snap switch control station, 20A, With switch, With one 3/4" hub, Feraloy iron alloy, 2, Two-gang, Three-pole, 2, 120-277V, Dead end, 3-way, 3/4", 120-277 Vac
Product Name
Eaton Crouse-Hinds series EDS snap switch control station
Catalog Number
EDS2230
Product Length/Depth
5.06 in
Product Height
5.875 in
Product Width
7.19 in
Product Weight
15.35 lb
UPC
782274763866
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With switch
Trade size
3/4"
Number Of Poles
Three-pole
Switch function
3-way
Number of gangs
Two-gang
Style
Dead end
Voltage rating
120-277 Vac
Amperage Rating
20A
Hub style
With one 3/4" hub
Number of devices
2
Number of pushbuttons
2
Primary voltage range
120-277V
Material
Feraloy iron alloy
EDS and EDSX Fully Assembled Snap Switches catalog page EDS and EFD Explosionproof Snap Switches UL certification - industrial control panels and assemblies EDS and EFD Explosionproof Snap Switches UL certification - industrial control panels and assemblies EDS and EFD Explosionproof Snap Switches UL certification - industrial control panels and assemblies EDS and EFD Explosionproof Snap Switches UL certification - industrial control panels and assemblies IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies Eaton Specification Sheet - EDS2230
Rugged enclosure materials deliver longer life in harsh environments. The Feraloy iron alloy enclosure resists impact, heat, and corrosion, reducing field repairs and downtime in continuous-operation lines. This is ideal for chemical plants, mining sites, and oil-and-gas facilities where rugged control stations keep critical processes running. Integrated enclosure design combines two gangs and three-pole functionality with a single 3/4\" hub. Business impact: simplifies wiring routes, lowers installation time, and improves fault isolation. Application: panel builders can pre-assemble and ship ready-to-install stations. The unit supports 120-277V and a 20A rating, delivering reliable power delivery and compatibility across common industrial systems. With dead-end style wiring and two pushbuttons, technicians benefit from straightforward maintenance and reduced commissioning time. Compliance and installation support, including NEC/CEC alignment and NEMA 3, 7, 9 compatibility, reduce risk during audits and upgrades. Installation resources like IF328 instruction sheets and Eaton’s specification sheets aid fast, correct deployments in two-gang device bodies.

Get a Quick Quote for a Eaton Crouse-Hinds EDS2230

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EDS2230? Enquire Now

FAQs

Yes. The EDS2230 is rated for 120-277V and supports up to 20A circuit current. It is designed as a two-gang, three-pole control station with one 3/4 inch hub for flexible wiring.
The EDS2230 carries NEC/CEC compliance and hazardous-location ratings including Class I, Division 1 and 2; Class II, Division 1 and 2; and Class III, with a protective NEMA rating of 3, 7, and 9 to suit hazardous environments.
The enclosure is a Feraloy iron alloy unit rated for rugged use. Dimensions are approximately 5.06 in (length) by 5.875 in (height) by 7.19 in (width), with a weight around 15.35 lb and a single 3/4" hub.
Installation and specification resources include the IF 328 instruction sheets for EDS/EDSX device bodies, the EDS2230 specification sheet, and the EDS/EDSX catalog page. These support correct wiring, mounting, and integration into panels.
The EDS2230 is ideal for hazardous-location control panels in industries like chemical processing, oil and gas, and mining. Its two-gang, three-pole configuration, 20A rating, and 120-277V operating range support robust control of critical equipment in harsh environments.
