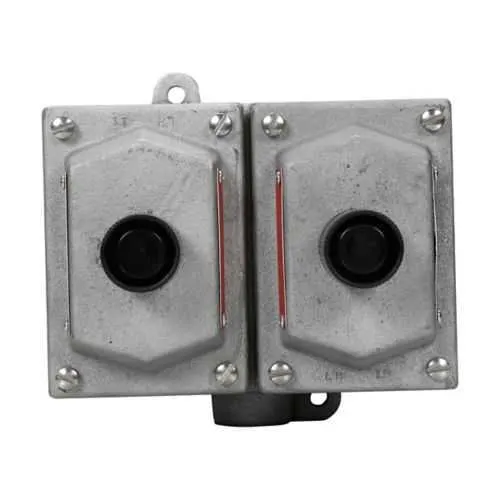

Eaton EDS2284 Pushbutton Control Station - 600 Vac
Part Number: EDS2284
Quick Summary
EDS2284 pushbutton control station delivers rugged hazardous-location control for industrial automation panels. Maintenance teams struggle with downtime in explosion-hazard areas; this unit reduces failures through a robust, field-serviceable design. It carries NEC/CEC compliance along with hazardous-location ratings Class I, Division 1; Class I, Division 2; Class II, Division 1; Class II, Division 2; and Class III, plus NEMA ratings 3, 7, 9. With its two-gang enclosure, 3/4 inch trade size, and universal single-circuit configuration, it integrates easily into existing panels while boosting safety and uptime.
Product Information
Extended Description
EDS2284 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Single circuit universal, 1, Two-gang, 1, Dead end, 3/4", 600 Vac
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDS2284
Product Length/Depth
7.19 in
Product Height
6.03 in
Product Width
5.81 in
Product Weight
15.98 lb
UPC
782274763880
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Two-gang
Number of pushbuttons
1
Number of devices
1
Normal position
Single circuit universal
Style
Dead end
Trade size
3/4"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EDS/EDSX Hazardous Area Control Stations catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
Eaton Specification Sheet - EDS2284
Hazardous-location enclosure resilience → Improves safety compliance and reduces risk of exposure in Class I/II/III environments. This translates to lower incident costs and smoother audits for manufacturers and end users installing explosion-proof control stations in oil, gas, and chemical facilities. Compatibility with standard installation practices ensures rapid retrofit and minimizes engineering changes. 600 Vac rating and a single pushbutton in a two-gang enclosure provide compact, reliable control for motor and process interlocks, improving line efficiency and uptime. Feraloy iron alloy construction delivers rugged resistance to impact and corrosion, extending service life in harsh environments and lowering total cost of ownership. The dead-end, 3/4" trade size design simplifies conduit and mounting, reducing installation time and labor costs. NEC/CEC and NEMA 3, 7, 9 certifications support compliance-driven procurement and streamlined maintenance planning. This design also supports field servicing and straightforward replacement of worn devices, mitigating downtime during maintenance windows.
Get a Quick Quote for a Eaton Crouse-Hinds EDS2284
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDS2284?
Enquire Now
FAQs
EDS2284 is a two-gang, 3/4 inch trade size control station with a single pushbutton. It fits standard explosion-proof mounting footprints and is compatible with common distribution panel configurations used in hazardous locations, enabling straightforward retrofits without extensive rework. Ensure enclosure rating matches the hazardous area class and that wiring methods conform to NEC/CEC guidelines for Class I Division 1/2 or Class II/III environments.
EDS2284 carries NEC/CEC compliance and hazardous-location ratings for Class I, Division 1 and Division 2, Class II, Division 1 and 2, and Class III. It is rated NEMA 3, 7, and 9, and is specified for Hazardous/Classified Locations. These certifications support safe operation in oil, gas, chemical, mining, and other demanding industrial settings.
Ideal for explosion-proof control in oil and gas facilities, chemical plants, mining operations, and other hazardous environments. The two-gang, 1-device configuration with a single pushbutton suits start/stop interlocks, pilot control, and general purpose control circuits in a compact, rugged package.
The rugged Feraloy iron alloy enclosure and 600 Vac rating resist wear, reducing unplanned maintenance. Its field-serviceable design enables quicker device replacement and fewer downtime events, delivering lower total cost of ownership and faster return on investment for facilities with frequent functional resets or interlocks.
You can download the SP3D design package, the EDS/EDSX control stations catalog page, and installation sheets from Eaton using the provided downloads. The Eaton specification sheet for EDS2284 and Canadian certification documents are also available to support design reviews, compliance checks, and maintenance planning.
