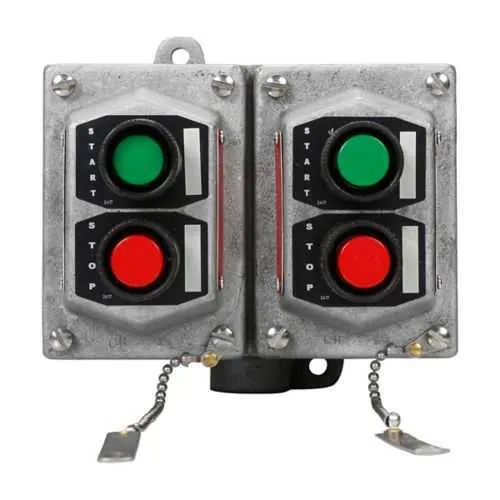

Eaton Crouse-Hinds EDS2290 Pushbutton Station - 600 Vac
Part Number: EDS2290
Quick Summary
EDS2290 is a pushbutton control station for hazardous locations, enabling reliable manual control in industrial settings. Designers often wrestle with compact, code-compliant solutions that withstand harsh environments without frequent maintenance. This unit carries NEC/CEC hazardous-location classifications, including Class I Division 1 and Division 2, Class II Division 1 and 2, and Class III, along with NEMA ratings 3, 7, and 9, enhancing safety and compliance across demanding sectors. With a two-gang, two-pushbutton footprint and a 600 Vac rating, it fits standard control panels while simplifying wiring and diagnostics. Built from a rugged feraloy iron alloy, it is prepared for rigorous service in oil, gas, chemical, and mining environments, delivering long-term reliability and operational cost savings.
Product Information
Extended Description
EDS2290 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Two circuit universal, 2, Two-gang, 2, Dead end, 3/4", 600 Vac
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDS2290
Product Length/Depth
7.19 in
Product Height
6.03 in
Product Width
5.81 in
Product Weight
15.98 lb
UPC
782274763903
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Two-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit universal
Style
Dead end
Trade size
3/4"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EDS/EDSX Hazardous Area Control Stations catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
IF 372 - EDS Notice
IF 372 - EDS Notice
IF 372 - EDS Notice
Eaton Specification Sheet - EDS2290
Two-gang, two-pushbutton configuration provides a compact control point that reduces panel width, simplifies wiring, and speeds installation. This consolidation translates into fewer interconnects and easier diagnostics, delivering improved maintenance efficiency in busy production facilities. The 600 Vac rating supports direct motor and control circuit switching for common industrial loads, while the standard 3/4" trade size keeps conduit connections aligned with industry norms. The Ferroloy iron alloy enclosure delivers explosion-proof performance and corrosion resistance, reducing equipment downtime and extending service life in harsh environments such as oil, gas, chemical, and mining operations. NEC/CEC hazardous-location classifications (Class I, Division 1 & 2; Class II, Division 1 & 2; Class III) and NEMA ratings 3, 7, 9 simplify regulatory compliance and permit approvals for hazardous-area installations. The device supports two devices and two circuits, enabling flexible control schemes and straightforward retrofits in existing panels. Documentation access, including SP3D design packages, catalog pages, and installation sheets, accelerates engineering workflows and ensures consistent installation practices.
