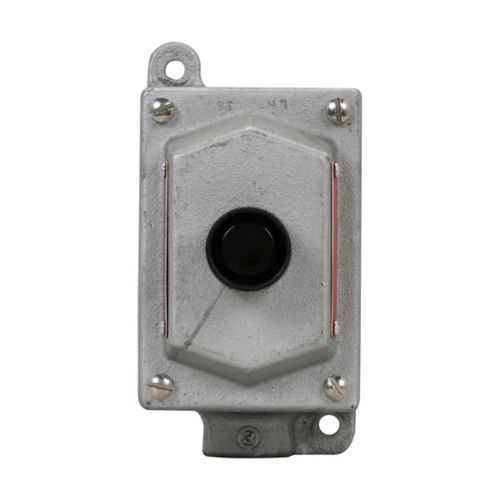

Eaton EDS3184 Pushbutton Control Station - Class I/II/III
Part Number: EDS3184
Quick Summary
EDS3184 pushbutton control station delivers local control for hazardous-location equipment in industrial facilities. Operators often face wiring complexity and unreliable performance in harsh environments, leading to costly downtime. This unit meets NEC/CEC standards and carries hazardous-location ratings across Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III, with NEMA 3, 7 and 9 enclosure protection. Built with Feraloy iron alloy, it combines rugged durability with a single-gang, one-pushbutton design for fast installation and safer operation. Its compact 5.81 in width and 5.91 in height simplify panel layouts, while 600 Vac handling supports universal control circuits. In practice, it boosts compliance confidence, reduces maintenance spans, and supports scalable hazardous-area control strategies.
Product Information
Extended Description
EDS3184 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Single circuit universal, 1, Single-gang, 1, Dead end, 1", 600 Vac
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDS3184
Product Length/Depth
3.5 in
Product Height
5.91 in
Product Width
5.81 in
Product Weight
8.3 lb
UPC
782274764054
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
1
Number of devices
1
Normal position
Single circuit universal
Style
Dead end
Trade size
1"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EDS/EDSX Hazardous Area Control Stations catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
Eaton Specification Sheet - EDS3184
Feature × Business Impact × Application: The EDS3184 uses a single-gang enclosure with one pushbutton, delivering a compact operator interface that reduces wiring errors and panel crowding in machine control panels for hazardous locations. This translates to faster commissioning, lower risk of misoperation, and easier operator training in process plants. The rugged Feraloy iron alloy construction provides exceptional durability in harsh environments, improving mean time between failures and reducing replacement costs in mining and chemical facilities. Enclosure protection with NEMA 3, 7, 9 ratings shields the control station from dust, water ingress, and explosive atmospheres, supporting reliable operation in refineries and offshore platforms. The 600 Vac rating enables flexible integration with universal control circuits, simplifying panel integration and spare-part compatibility across Eaton Crouse-Hinds control ecosystems. Compact dimensions—3.5 in depth and 1" trade size—facilitate retrofits and space-constrained installations, while maintaining compliance with NEC/CEC requirements and industry best practices.
Get a Quick Quote for a Eaton Crouse-Hinds EDS3184
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDS3184?
Enquire Now
FAQs
The EDS3184 is a single-gang, 1-pushbutton control station designed for hazardous locations. It fits standard 1" trade-size cutouts and measures 5.81 in wide by 5.91 in high, with a depth of 3.5 in. The unit weighs 8.3 lb and uses a rugged Feraloy iron alloy enclosure for reliable operation in tough environments.
Yes. The EDS3184 carries NEC hazardous-location ratings including Class I Division 1 and Division 2, and also covers Class II Division 1 and 2, plus Class III. It is engineered for hazardous-area control panels and adheres to NEC/CEC standards, providing safe operation in potentially explosive atmospheres.
The device is rated for 600 Vac operation and supports a single-gang, 1 pushbutton, 1 device configuration. Its normal position is universal for single-circuit control, and the dead-end style accommodates safe termination. This makes it compatible with universal control circuits and standard panel wiring in hazardous locations.
Eaton provides installation resources including instruction sheets and catalogs. Useful references include IF328 series installation sheets for EDS, EFS, EDSC, and EFSC single- and two-gang bodies, as well as the EDS/EDSX Hazardous Area Control Stations catalog page and the Eaton specification sheet for EDS3184.
The EDS3184’s rugged Feraloy construction and sealed NEMA-rated enclosure reduce downtime and maintenance intervals in harsh environments. Its simplified single-pushbutton interface minimizes operator error, supports faster resets after trips, and lowers long-term ownership costs by extending service life in hazardous-area applications.
