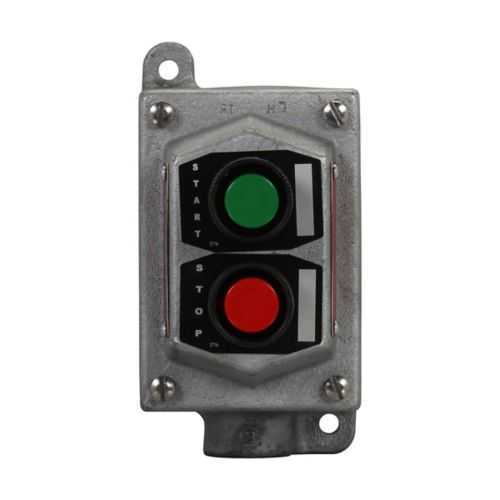

Eaton Crouse-Hinds EDS3190 Pushbutton - Hazardous Locations
Part Number: EDS3190
Quick Summary
EDS3190 pushbutton control station is a rugged, explosion-protected device for hazardous-location control in industrial plants. In harsh environments, equipment downtime from maintenance and wiring complexity is a frequent pain point; this unit’s robust enclosure and two-circuit universal design streamline installation and service. The assembly meets NEC/CEC standards and hazardous-location ratings, with UL certifications and a protective NEMA 3/7/9 enclosure suitable for Class I, II, and III locations. For maintenance teams and engineers, the two-pushbutton, single-gang design and 1" trade size deliver predictable wiring layouts, faster retrofits, and a lower total cost of ownership. This makes it a reliable choice for regulated facilities, energy-intensive processes, and high-demand automation environments.
Product Information
Extended Description
EDS3190 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Two circuit universal, 2, Single-gang, 2, Dead end, 1"
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDS3190
Product Length/Depth
3.5 in
Product Height
5.91 in
Product Width
5.81 in
Product Weight
7.96 lb
UPC
782274764061
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Number of gangs
Single-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit universal
Style
Dead end
Trade size
1"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EDS/EDSX Hazardous Area Control Stations catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
IF 372 - EDS Notice
IF 372 - EDS Notice
IF 372 - EDS Notice
Eaton Specification Sheet - EDS3190
Feraloy iron alloy enclosure provides rugged, explosion-protected housing that withstands corrosive environments and temperature fluctuations, reducing maintenance frequency and replacement costs while enhancing safety. Business impact: lower lifecycle costs and reduced downtime in chemical plants and oil & gas facilities. Application: hazardous-location control stations requiring durable materials and certified protection. Two pushbuttons across two devices enable dual-circuit control within a single-gang footprint, simplifying panel layouts and enabling faster commissioning. Business impact: reduced wiring complexity and faster startup for multi-function control loops in mining or refinery applications. Application: compact control solutions where space is at a premium. The single-gang, 1" trade size enclosure supports easy retrofit into existing panels, saving panel real estate and installation time. Business impact: improved installability and scalable modernization across distributed control systems. Application: upgrades in utilities and water treatment plants. NEC/CEC compliance plus hazardous-location ratings (Class I, Division 1 & 2; Class II, Division 1 & 2; Class III) with a NEMA 3/7/9 enclosure deliver conformance and protection that minimize permitting hurdles. Business impact: smoother regulatory approvals and safer operations in harsh environments. Application: multinational facilities with stringent safety and environmental requirements. Weight of 7.96 lb and two-pushbutton configuration support straightforward handling and modular integration into existing control schemes. Business impact: easier inventory management and predictable maintenance cycles. Application: field installable control stations in variable site conditions.
Get a Quick Quote for a Eaton Crouse-Hinds EDS3190
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDS3190?
Enquire Now
FAQs
For hazardous-location installations, mount the EDS3190 in a single-gang enclosure with 1" trade size, ensuring the enclosure is suitable for Class I and II environments. Use proper wiring practices for two-pushbutton, two-device configurations and verify that the enclosure remains weather- and explosion-protected per NEC/CEC guidelines. The rugged Feraloy iron alloy housing supports long-term service in demanding facilities.
EDS3190 provides two pushbuttons and supports two devices across two circuits in a universal configuration. The unit is designed as a dead-end, single-gang control station with a 1" trade size, enabling compact wiring footprints and simplified panel integration for dual-branch control schemes in hazardous areas.
Yes. The EDS3190 is rated for Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III locations, aligning with NEC hazardous location requirements. This, combined with its NEC/CEC compliance and UL certifications, makes it suitable for industries such as chemical processing, oil and gas, and mining.
EDS3190 carries NEC/CEC standards compliance and hazardous-location ratings, along with UL certifications for explosion-proof operation. It also features a NEMA rating of 3, 7, and 9, indicating suitability for indoor and outdoor environments, as well as a robust material and construction suitable for harsh industrial settings.
The rugged Feraloy iron alloy construction reduces corrosion and wear, lowering maintenance frequency. The two-pushbutton, two-device setup simplifies wiring, which can shorten commissioning and retrofit timelines. Its compact single-gang footprint saves panel space, easing inventory management and enabling quicker deployments across multiple stations, improving overall equipment effectiveness (OEE).
