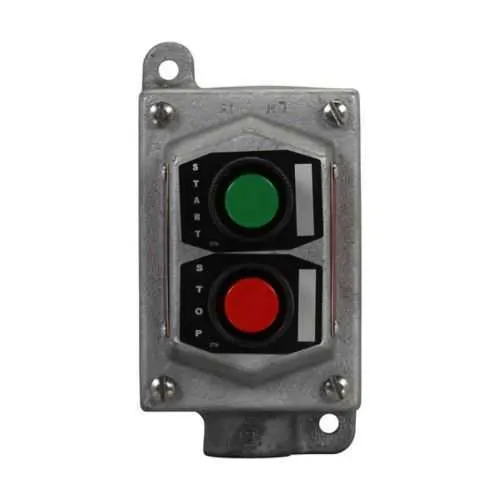

Eaton EDS3192 Pushbutton Control Station - Explosionproof
Part Number: EDS3192
Quick Summary
EDS3192 pushbutton control station is designed for hazardous-location installations, delivering reliable operator control for demanding environments. Maintenance teams often struggle with equipment that fails in explosive areas or lacks clear compliance documentation. This unit offers a compact single-gang enclosure with two pushbuttons rated for 600 Vac. It carries NEC/CEC standards and is certified for Hazardous/Classified Locations, including Class I Division 1 and 2, Class II Division 1 and 2, and Class III, with a NEMA 3, 7, 9 enclosure. Built around a durable Feraloy iron alloy body, the EDS3192 supports rugged operation while reducing downtime and maintenance costs in industrial plants. For engineers and procurement teams, it combines safety, reliability, and easier compliance tracking in one robust package.
Product Information
Extended Description
EDS3192 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Two circuit universal, 2, Single-gang, 2, Dead end, 1", 600 Vac
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDS3192
Product Length/Depth
3.5 in
Product Height
5.91 in
Product Width
5.81 in
Product Weight
8.4 lb
UPC
782274764078
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit universal
Style
Dead end
Trade size
1"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EDS/EDSX Hazardous Area Control Stations catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
IF 372 - EDS Notice
IF 372 - EDS Notice
IF 372 - EDS Notice
Eaton Specification Sheet - EDS3192
Feature: Explosionproof construction with Feraloy iron alloy → Business Impact: Delivers superior durability in harsh environments, protecting internal components from impact and corrosion while extending service life. Application: Ideal for oil & gas, chemical processing, and mining facilities where robust protection is required. Feature: Two pushbuttons in a single-gang enclosure → Business Impact: Simplifies operator interfaces and reduces panel real estate and wiring complexity, cutting installation time and potential miswiring. Application: Start/stop and shutdown circuits in hazardous locations across industrial automation setups. Feature: NEC/CEC certifications with Hazardous/Classified Location rating → Business Impact: Improves compliance and safety auditing, lowering regulatory risk and insurance costs. Application: Refineries, chemical plants, water treatment, and other hazardous-area operations. Feature: 600 Vac voltage rating → Business Impact: Supports common motor control and line-voltage circuits, reducing the need for multiple voltage adapters and devices. Application: 600 V control systems in external equipment cabinets and hazardous zones. Feature: 1" trade size, dead-end style, and 2 devices → Business Impact: Facilitates straightforward retrofits and universal compatibility with standard control station footprints. Application: Retrofit projects and new installations in process and utility automation environments. Feature: Durable packaging and installation resources (IF 372 notices, catalog pages, and datasheets) → Business Impact: Streamlines procurement and commissioning with readily available references, cutting project lead times. Application: System integrators and maintenance teams deploying explosionproof control stations in harsh locations.
Get a Quick Quote for a Eaton Crouse-Hinds EDS3192
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDS3192?
Enquire Now
FAQs
EDS3192 is a single-gang, 1 inch trade-size control station with two pushbuttons designed for hazardous/classified locations. It supports standard single-gang mounting in NEMA 3, 7, 9 environments and is suitable for 600 Vac circuits. For proper installation, consult Eaton IF 372 instruction sheets and use compatible mounting hardware.
The EDS3192 features a 600 Vac voltage rating, two pushbuttons, two devices, and two circuits. It is a single-gang, 1" trade-size enclosure with a dead end style. Designed for hazardous locations, it adheres to NEC/CEC standards and integrates with two-circuit universal operation for versatile control wiring.
Yes. The EDS3192 carries NEC/CEC standards with hazardous ratings including Class I Division 1 and 2, Class II Division 1 and 2, and Class III. It also features a NEMA rating of 3, 7, 9, and is intended for Hazardous/Classified Locations, providing regulatory compliance and safer operation in demanding environments.
Eaton provides a range of resources for EDS3192, including the EDS/EDSX Hazardous Area Control Stations catalog page, the EDS3192 specification sheet, and installation sheets like IF372 notices. Access to 3D design packages and relevant UL/Canada certification documentation is also available to streamline procurement and commissioning.
The EDS3192 delivers reliability in hazardous environments via explosionproof construction and NEC/CEC compliance, reducing downtime and maintenance costs. Its compact single-gang footprint and two-pushbutton interface simplify wiring and operation, while the robust Feraloy iron alloy body enhances longevity in harsh plants, delivering safer, compliant control in process automation.
