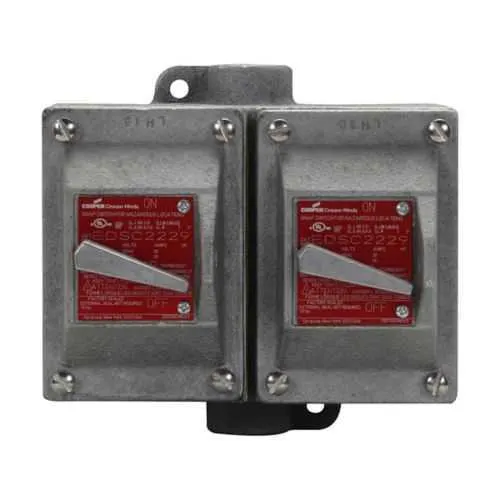

Eaton Crouse-Hinds EDS3229 Snap Switch Control Station - Hazardous Locations

Part Number: EDS3229
EDS3229
Manufacturer
Eaton Crouse-Hinds
Part number
EDS3229
Category

Quick Summary

EDS3229 snap switch control station from Eaton Crouse-Hinds delivers reliable control for hazardous-location enclosures in industrial facilities. Maintenance teams often struggle with equipment that combines safe operation, regulatory compliance, and quick installation in harsh environments. This unit carries NEC/CEC standards, a NEC hazardous rating for Class I Division 1 and 2, Class II Division 1 and 2, and Class III, plus a NEMA rating of 3, 7, and 9. Its 1" hub, two-gang design with two devices and 120–277V, 20A rating streamlines wiring and reduces field rework. For engineers and procurement teams, this combination translates to faster project timelines and lower lifecycle costs in control stations for process plants and heavy industries.

Product Information

Extended Description

EDS3229 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS snap switch control station, 20A, With switch, With one 1" hub, Feraloy iron alloy, 2, Two-gang, Single-pole, 1, 120-277V, Dead end, Single-pole, 1", 120-277 Vac
Product Name
Eaton Crouse-Hinds series EDS snap switch control station
Catalog Number
EDS3229
Product Length/Depth
5.06 in
Product Height
5.875 in
Product Width
7.19 in
Product Weight
15.35 lb
UPC
782274764108
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With switch
Trade size
1"
Number Of Poles
Single-pole
Switch function
Single-pole
Number of gangs
Two-gang
Style
Dead end
Voltage rating
120-277 Vac
Amperage Rating
20A
Hub style
With one 1" hub
Number of devices
2
Number of pushbuttons
1
Primary voltage range
120-277V
Material
Feraloy iron alloy
EDS and EDSX Fully Assembled Snap Switches catalog page EDS and EFD Explosionproof Snap Switches UL certification - industrial control panels and assemblies EDS and EFD Explosionproof Snap Switches UL certification - industrial control panels and assemblies EDS and EFD Explosionproof Snap Switches UL certification - industrial control panels and assemblies EDS and EFD Explosionproof Snap Switches UL certification - industrial control panels and assemblies IF 242 - EDS and EDSC Control Stations IF 242 - EDS and EDSC Control Stations Eaton Specification Sheet - EDS3229
Feature: Two-gang, single-pole control with one switch and two devices for compact two-device control. Business impact: Reduces panel footprint while consolidating control points, lowering installation time and wiring complexity. Application: Industrial automation panels needing compact two-device control in hazardous environments. Feature: 1" trade size hub and dead-end enclosure design. Business impact: Eases conduit entry and simplifies enclosure wiring, speeding field work and improving reliability under vibration and dust exposure. Application: Hazardous-location installations in oil, gas, or chemical processing where robust routing is essential. Feature: 120–277V AC, 20A rating. Business impact: Supports common motor and control loads with ample headroom, reducing the need for upsizing components. Application: Pumps, conveyors, and non-continuous loads in harsh environments. Feature: Feraloy iron alloy enclosure construction. Business impact: Delivers durability against heat, impact, and environmental contaminants, lowering maintenance costs and downtime. Application: Extreme industrial settings with frequent washdowns and temperature swings. Feature: NEC/CEC compliance and NEMA ratings 3, 7, 9. Business impact: Ensures regulatory alignment and insurance compatibility while delivering verified protection for hazardous locations. Application: Chemical plants, refineries, and mining sites requiring compliant, rugged control stations. Feature: With one 1" hub and integrated switch, two devices, 1 pushbutton. Business impact: Simplifies field wiring and reduces misconnection risk; supports straightforward upgrades or diagnostics. Application: Process-control panels where reliable manual control is essential.

Get a Quick Quote for a Eaton Crouse-Hinds EDS3229

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EDS3229? Enquire Now

FAQs

Install the EDS3229 in a suitable hazardous-location enclosure using the built-in 1" hub for conduit entry. Mount the two-gang assembly per the installation sheet, connect conductors to the switch and devices, and secure the enclosure to a stable surface. Follow NEC/CEC wiring practices and verify proper sealing and grounding to maintain Class I, II, and III ratings.
EDS3229 operates at 120–277V AC with a 20A amperage rating. It is designed for two devices in a two-gang configuration, featuring a single-pole switch, and a 1" hub for conduit entry. The enclosure accommodates standard wiring methods for reliable control in demanding environments.
Yes. The EDS3229 carries NEC hazardous ratings including Class I, Division 1 and Division 2, as well as Class II and Class III ratings. This ensures compliant operation in hazardous locations, aligning with strict industry regulations and safety requirements for oil, gas, mining, and chemical processing facilities.
The EDS3229 is certified for Hazardous/Classified Locations with NEC/CEC standards and a NEMA rating of 3, 7, and 9. This combination provides proven protection against dust, moisture, impact, and possible explosion hazards, supporting safe operation in demanding industrial environments.
The rugged Feraloy iron alloy enclosure offers durability in high-temperature and harsh environments, reducing maintenance frequency. The 1" hub and two-gang design simplify wiring and future upgrades, lowering total cost of ownership by shortening install time and minimizing field rework during outages or rewrites of control logic.
