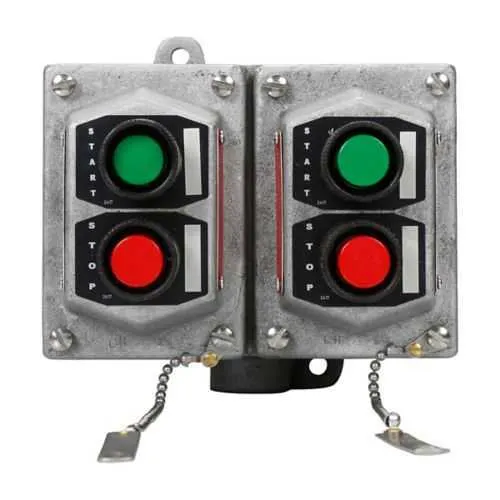

Eaton EDS325 Pushbutton Control Station - Explosionproof
Part Number: EDS325
Quick Summary
EDS325 is an explosionproof pushbutton control station for hazardous locations. It delivers reliable operator control in demanding industrial environments while minimizing panel footprint. This unit meets NEC/CEC requirements and hazardous-area classifications, including Class I Division 1 and 2, Class II Division 1 and 2, Class III, with a NEMA 3/7/9 rating. Designed for 600 Vac operation and a two-gang enclosure, it integrates two pushbuttons and two devices without sacrificing ease of installation. For engineers and maintenance teams, the EDS325 provides a robust, code-compliant interface that reduces wiring complexity and accelerates commissioning in harsh environments.
Product Information
Extended Description
EDS325 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Two circuit, 2, Two-gang, 2, Dead end, 1", 600 Vac
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDS325
Product Length/Depth
7.19 in
Product Height
6.03 in
Product Width
5.81 in
Product Weight
15.98 lb
UPC
782274763590
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Two-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit
Style
Dead end
Trade size
1"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EDS/EDSX Hazardous Area Control Stations catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
IF 372 - EDS Notice
IF 372 - EDS Notice
IF 372 - EDS Notice
Eaton Specification Sheet - EDS325
Feature: Explosionproof housing made from Feraloy iron alloy → Business Impact: Delivers superior durability and resistance to harsh chemicals and repeated operator contact, reducing maintenance costs over the life of the station → Application: Oil & gas, chemical processing, mining installations where equipment must withstand demanding conditions. Feature: Two pushbuttons and two devices in a two-gang, dead-end enclosure with 1" trade size → Business Impact: Compact footprint lowers panel complexity and wiring, enabling faster installations and easier future modifications → Application: Machine control panels and hazardous-area motor control stations with limited cabinet space. Feature: 600 Vac voltage rating with NEC/CEC compliance → Business Impact: Ensures safe operation and regulatory alignment across North American facilities, minimizing risk of noncompliance fines or downtime → Application: Control circuits for pumps, fans, and conveyors in hazardous environments. Feature: NEMA 3/7/9 ratings → Business Impact: Proven ingress and environmental protection translates to longer service life and reduced service calls → Application: Outdoor and indoor hazardous-location equipment exposed to dust, moisture, and corrosive atmospheres. Feature: Compatibility with SP3D design packages, installation instructions, and Eaton catalog pages → Business Impact: Streamlines design, procurement, and commissioning, reducing project lead times and errors → Application: Engineering design workflows for hazardous-area projects and controlled installations.
Get a Quick Quote for a Eaton Crouse-Hinds EDS325
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDS325?
Enquire Now
FAQs
The EDS325 requires a recognized explosionproof enclosure rated for Hazardous/Classified Locations and must be wired to a suitable 600 Vac control circuit. Verify Class I/II/III classifications and install per NEC/CEC and UL guidelines. Use proper termination practices, rugged connectors, and compatible EDS accessories to ensure a compliant, maintenance-friendly panel.
Key specs include a 600 Vac voltage rating, two pushbuttons, two devices, and a two-gang enclosure with a 1" trade size. Material is Feraloy iron alloy, and the unit supports two circuit paths in a dead-end configuration. It complies with NEC/CEC requirements and is suitable for hazardous-location installations per Class I, II, and III ratings.
Yes. The EDS325 carries NEC/CEC standards compliance and is rated for Class I, Division 1 and Division 2, along with Class II and III locations. This ensures code-compliant installation and safer operation in demanding environments such as oil, gas, and chemical processing facilities.
The EDS325 is designed for 600 Vac operation and controls two circuits via two pushbuttons and two devices. Its two-gang, dead-end enclosure keeps wiring organized while meeting space constraints in control panels and hazardous-area installations.
The EDS325 uses durable Feraloy iron alloy and explosionproof construction that reduces maintenance frequency in harsh environments. Its compact two-gang design lowers panel space and wiring costs, while NEC/CEC compliance minimizes regulatory risk. Long-term reliability translates to lower downtime and improved process availability.
