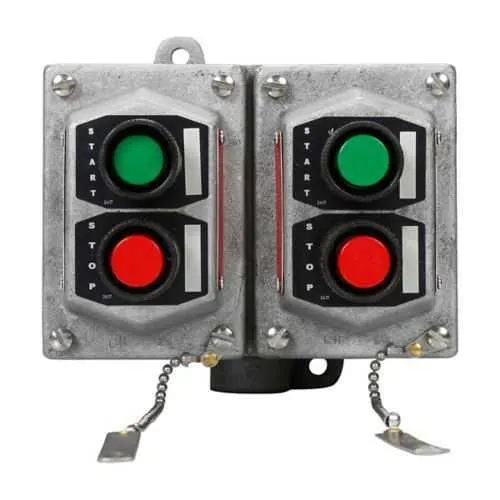

Eaton EDS3290 Pushbutton Control Station - Hazardous
Part Number: EDS3290
Quick Summary
EDS3290 pushbutton control station from Eaton Crouse-Hinds delivers rugged, two-gang control for hazardous locations. Operators and maintenance teams often struggle with reliability and safety in explosion-hazard environments, making robust control stations essential. This device carries NEC/CEC compliance and hazardous location ratings, including Class I Division 1 & 2, Class II Division 1 & 2, and Class III, along with a NEMA 3, 7, 9 enclosure. By combining a 1" trade size, a 600 Vac rating, and a ferrous Feraloy iron alloy body, it offers long life in tough conditions. The design supports easy retrofit with existing EDS/EDSX systems, delivering faster installation, safer operation, and lower lifecycle costs while reducing maintenance cycles in your plant.
Product Information
Extended Description
EDS3290 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Two circuit universal, 2, Two-gang, 2, Dead end, 1", 600 Vac
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDS3290
Product Length/Depth
7.19 in
Product Height
6.03 in
Product Width
5.81 in
Product Weight
7.96 lb
UPC
782274764160
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Two-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit universal
Style
Dead end
Trade size
1"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EDS/EDSX Hazardous Area Control Stations catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
IF 372 - EDS Notice
IF 372 - EDS Notice
IF 372 - EDS Notice
Eaton Specification Sheet - EDS3290
Feature – Two-gang, two-pushbutton enclosure with a 1 inch trade size provides compact, high-density control for hazard zones. Business Impact – Maximizes panel space and simplifies wiring, reducing commissioning time and installation costs in hazardous environments. Application – Ideal for explosion-proof stair-pump rooms, chemical plants, and mining facilities needing reliable local control. Feature – 600 Vac voltage rating supports standard industrial power circuits, enabling seamless integration with existing control logic and safety interlocks. Business Impact – Improves system safety margins and minimizes voltage mismatch risk, lowering commissioning risk. Application – Motor control centers and machine control panels in hazardous locations. Feature – Feraloy iron alloy enclosure delivers outstanding toughness and corrosion resistance. Business Impact – Extends service life in harsh plants, reducing maintenance frequency and replacement costs. Application – Offshore, chemical processing, and heavy manufacturing environments. Feature – NEC/CEC compliance plus Class I/II/III hazardous ratings and NEMA 3/7/9 protection. Business Impact – Ensures regulatory conformity and durable protection against dust, water ingress, and explosions. Application – Global rollout in hazardous locations with strict electrical standards. Feature – Two-circuit universal operation and dead-end, pushbutton control design. Business Impact – Simplifies wiring topology and maintenance while offering flexible operation modes. Application – Hazardous area control stations in process lines and safety interlocks.
Get a Quick Quote for a Eaton Crouse-Hinds EDS3290
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDS3290?
Enquire Now
FAQs
The EDS3290 is designed for installation in hazardous environments with a dead-end, two-gang enclosure made from Feraloy iron alloy. It uses a 1" trade size and mounts in standard control panels, supporting straightforward wiring and safer operation in Class I and II locations. Installation benefits include robust ingress protection and compatibility with existing explosion-proof station layouts.
The EDS3290 carries NEC/CEC compliance and hazardous location ratings including Class I Division 1 and 2, Class II Division 1 and 2, Class III. It also features a NEMA rating of 3, 7, 9, ensuring suitability for rugged, dust, water, and explosion-prone environments. These certifications support global regulatory acceptance in hazardous areas.
Yes. The EDS3290 is designed as a two-gang, universal pushbutton station that complements Eaton’s EDS/EDSX explosion-proof control stations. Its 1" trade size and 600 Vac rating enable seamless integration with existing EDS family systems, simplifying retrofit projects and reducing wiring changes while maintaining compliance in hazardous environments.
The device measures 7.19 inches in length, 6.03 inches in height, and 5.81 inches in width, weighing 7.96 pounds. It features two pushbuttons, two devices, and a two-gang configuration in a dead-end enclosure. These specs help planners confirm fitment in restricted panels and design safe, compliant layouts.
The EDS3290 delivers measurable value by improving safety in hazardous locations, reducing downtime through reliable explosion-proof operation, and lowering lifecycle costs via durable Feraloy construction. Its NEC/CEC compliance and NEMA protection streamline approvals and maintenance, enabling faster deployment in mining, chemical, and oil & gas facilities.
