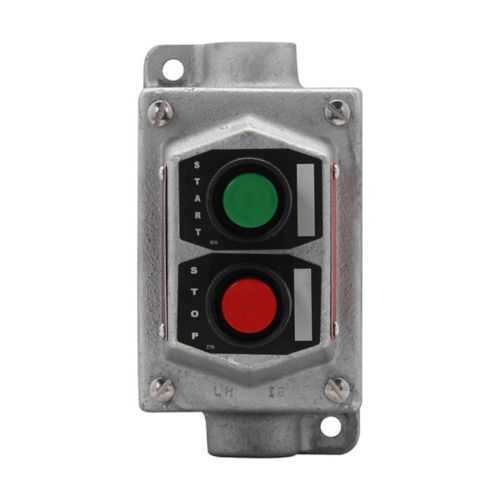

Eaton EDSC1155 Pushbutton Control Station - Hazardous
Part Number: EDSC1155
Quick Summary
EDS Pushbutton Control Station by Eaton Crouse-Hinds is a rugged solution for hazardous-area control of motors and instrumentation. This pushbutton station is designed to reduce downtime and ensure safe operation in Class I, II, and III environments. It meets NEC/CEC standards and offers explosionproof protection with Feraloy iron alloy construction and a NEMA 3, 7, 9 enclosure. For engineers and maintenance teams, it translates to faster installation, fewer spare parts, and easier compliance documentation. By leveraging a through-feed, 1/2" trade size format and a compact single-gang footprint, it streamlines panel design while delivering reliable performance in demanding industrial settings against harsh conditions.
Product Information
Extended Description
EDSC1155 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Two circuit, 2, Single-gang, 2, Through feed, 1/2", 600 Vac
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDSC1155
Product Length/Depth
3.5 in
Product Height
5.91 in
Product Width
5.81 in
Product Weight
6.63 lb
UPC
782274765402
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit
Style
Through feed
Trade size
1/2"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EDS/EDSX Hazardous Area Control Stations catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
Eaton Specification Sheet - EDSC1155
Feature explosionproof construction using Feraloy iron alloy → Business Impact enhances safety by minimizing ignition sources and reducing risk exposure in hazardous locations; Application ideal for Class I/II/III environments across Division 1 and 2. Feature two pushbuttons and two devices in a single-gang, through-feed enclosure → Business Impact simplifies control logic and wiring, reducing assembly time and inventory complexity; Application suits start/stop or pilot-control needs in hazardous-area panels. Feature 1/2" trade size through-feed design → Business Impact enables flexible daisy-chaining and compact panel layout, cutting installation hours and material costs; Application supports scalable control station networks. Feature 600 VAC voltage rating with NEC/CEC compliance → Business Impact ensures compatibility with standard industrial power and regulatory alignment, lowering integration risk; Application for motor control and line-voltage circuits in hazardous zones. Feature NEMA Rating 3, 7, 9 enclosure → Business Impact provides robust ingress protection and environmental resilience, reducing maintenance calls; Application for outdoor or severe-environment installations in hazardous locations. Feature Documentation and certifications (UL/Canada UL, installation sheets, catalog pages) → Business Impact accelerates procurement and audit readiness; Application supports seamless engineering reviews and compliance reporting.
Get a Quick Quote for a Eaton Crouse-Hinds EDSC1155
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDSC1155?
Enquire Now
FAQs
The EDSC1155 includes two pushbuttons and two devices within a single-gang, through-feed enclosure. It supports a 1/2 inch trade size and 600 VAC wiring, enabling straightforward wiring schemes, quicker installation, and easier panel integration in hazardous locations.
Yes. The EDSC1155 is designed for Class I, Division 1 and Division 2, as well as Class II Division 1 and 2, and Class III environments, with NEC/CEC compliance to support compliant control stations in hazardous locations.
It uses a through-feed, single-gang enclosure rated for 600 VAC operation. The enclosure is compatible with hazardous-location requirements and carries a NEMA rating of 3, 7, and 9, making it suitable for harsh environments and outdoor applications.
Support documents include UL and Canada UL certifications, IF 899 installation sheets, SP3D design package, and the EDS/EDSX control stations catalog page, facilitating design reviews, compliance checks, and installation planning.
The model delivers improved safety with explosionproof protection, faster installation through through-feed and compact single-gang design, reliable 600 VAC performance, and streamlined certification and documentation, all contributing to reduced downtime, lower maintenance costs, and smoother procurement in hazardous environments.
