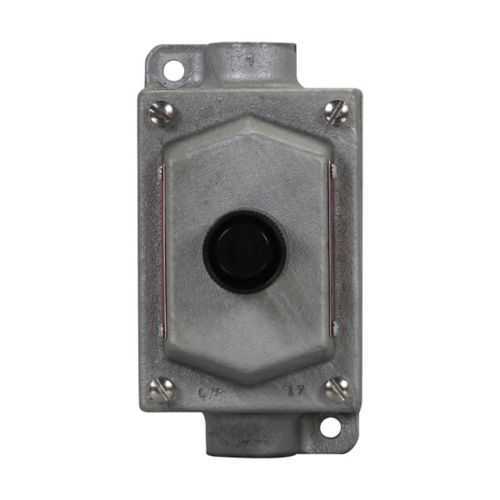

Eaton Crouse-Hinds EDSC1184 Pushbutton – NEC/CEC
Part Number: EDSC1184
Quick Summary
The Eaton Crouse-Hinds EDSC1184 Pushbutton control station provides reliable operator control for hazardous-location electrical systems. In plants where downtime costs real money and misrated enclosures slow response, selecting the right control station reduces maintenance delays and safety risk. This unit carries NEC/CEC compliance, Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III ratings, along with a NEMA 3, 7, 9 enclosure suitability. Through-feed design, 1/2" trade size, and single-gang construction support compact, field-serviceable installations, while Feraloy iron alloy housing resists harsh environments. Typical applications include hazardous-area control stations, pilot light configurations, and single-pushbutton operations in mining, chemical processing, and heavy manufacturing.
Product Information
Extended Description
EDSC1184 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Single circuit universal, 1, Single-gang, 1, Through feed, 1/2", 600 Vac
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDSC1184
Product Length/Depth
3.5 in
Product Height
5.91 in
Product Width
5.81 in
Product Weight
8.18 lb
UPC
782274765426
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
1
Number of devices
1
Normal position
Single circuit universal
Style
Through feed
Trade size
1/2"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EDS/EDSX Hazardous Area Control Stations catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
Eaton Specification Sheet - EDSC1184
Feature through-feed design provides streamlined wiring and compact panel footprint, leading to faster installations and lower labor costs. Business impact: reduced project schedule risk and easier future upgrades. Application: single-gang, 1/2 inch trade size pushbutton station suited for restricted spaces in hazardous locations. Feature Feraloy iron alloy housing delivers rugged durability, improving equipment uptime in abrasive, high-temperature environments. Business impact: lower replacement and maintenance costs over the asset life. Application: installations in mining, petrochemical, and heavy manufacturing facilities where corrosion resistance matters. Feature 600 Vac voltage rating supports high-energy control circuits, enabling direct integration with main power and motor controllers. Business impact: simplified wiring schemes and improved safety margins. Application: control stations for high-voltage switchgear and safety interlocks in hazardous zones. Feature NEC/CEC compliance and NEMA 3/7/9 enclosure compatibility provide regulatory confidence and performance in harsh environments. Business impact: mitigates compliance risk and expands usable operating environments. Application: hazardous area control stations and pushbutton configurations across oil, gas, and chemical processing sites.
Get a Quick Quote for a Eaton Crouse-Hinds EDSC1184
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDSC1184?
Enquire Now
FAQs
Yes. The EDSC1184 is explicitly designed for through-feed installations in hazardous locations with a 1/2 in trade size and single-gang enclosure. It supports 600 Vac control circuits and meets NEC/CEC requirements for Class I/II/III hazardous environments, making it a straightforward retrofit or new-build solution for compliant control stations.
Core specs include 1 pushbutton, 1 device, single-gang, 1/2" trade size, 600 Vac voltage rating, and through-feed style. The enclosure features a Feraloy iron alloy body, with dimensions around 3.5 in depth, 5.91 in height, and 5.81 in width, and a unit weight of 8.18 lb. It is rated for hazardous locations per NEC/CEC and carries a NEMA 3/7/9 enclosure compatibility.
The EDSC1184 carries NEC/CEC compliance and NEC hazardous ratings including Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III. It also aligns with NEMA ratings 3, 7, and 9, and is specified for Hazardous/Classified Locations, ensuring regulatory compatibility across many industrial sectors.
Ideal for hazardous-area control stations, pilot light configurations, and single pushbutton operations in mining, petrochemical, and heavy manufacturing. Its rugged housing and through-feed mounting simplify installation in tight spaces, while 600 Vac capability supports integration with main power circuits and safety interlocks in demanding environments.
By combining hazardous-location certification with a durable Feraloy housing and simplified installation, the EDSC1184 reduces Downtime, warranty claims, and maintenance cycles. Its compatibility with standard EDS equipment and its single-gang design help shorten commissioning times and lower total cost of ownership in critical process facilities.
