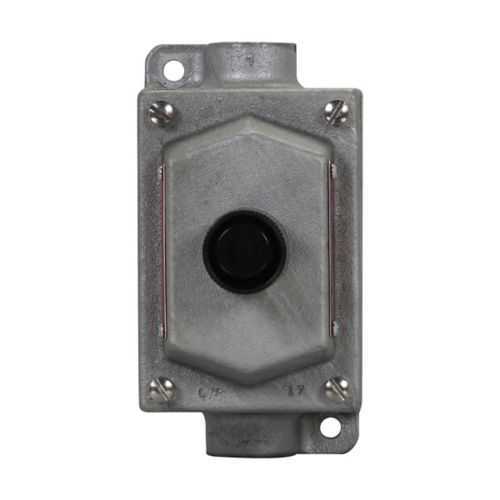

Eaton EDSC1184SA EDS Pushbutton Control Station - Hazardous
Part Number: EDSC1184SA
Quick Summary
EDS pushbutton control station delivers reliable operator input for hazardous-location control panels in industrial facilities. Operators often struggle with safety, compliance, and downtime when selecting rugged, certified stations. This model meets NEC/CEC standards, hazardous-location ratings, and NEMA 9, 7, 3 equivalents, helping you stay compliant. The 600 Vac rating and single-gang through-feed design streamline wiring and maintenance, while copper-free aluminum construction reduces corrosion concerns in tough environments. By choosing this solution, maintenance intervals can be extended and spare parts inventories simplified, supporting faster start-ups and improved overall equipment effectiveness. In addition, the unit’s compact footprint fits into standard enclosures without sacrificing visibility or accessibility for quick operator checks.
Product Information
Extended Description
EDSC1184SA Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Copper-free aluminum, Single circuit universal, 1, Single-gang, 1, Through feed, 1/2", 600 Vac
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDSC1184SA
Product Length/Depth
3.5 in
Product Height
6.72 in
Product Width
5.81 in
Product Weight
4 lb
UPC
662276932043
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 2 Class II, Division 1 Class I, Division 2 Class I, Division 1 Class III
NEMA Rating
9 7 3
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
1
Number of devices
1
Normal position
Single circuit universal
Style
Through feed
Trade size
1/2"
Material
Copper-free aluminum
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EDS/EDSX Hazardous Area Control Stations catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
IF 372 - EDS Notice
IF 372 - EDS Notice
IF 372 - EDS Notice
Eaton Specification Sheet - EDSC1184SA
Feature: 600 Vac rating with a 1/2 inch trade size through-feed single-gang enclosure enables direct, high-power control in demanding machines. Business impact: simplifies wiring, reduces voltage drop, and shortens commissioning time, improving overall line efficiency. Application: ideal for motor starters, conveyors, and hydraulic pumps in hazardous locations. Feature: Copper-free aluminum enclosure affords superior corrosion resistance in tough environments. Business impact: lowers maintenance costs and extends service life in chemical plants and offshore facilities. Application: outdoor or wet/humid installations where enclosure integrity matters. Feature: NEC/CEC compliance and hazardous-location ratings with NEMA 9, 7, 3 alignment. Business impact: reduces compliance risk and accelerates approvals for regulated industries. Application: oil and gas, mining, and chemical processing control panels. Feature: Through-feed design and 1/2" trade size support fast, clean installations and scalable wiring layouts. Business impact: minimizes panel clutter and allows easy future expansion. Application: retrofit projects and new-build systems with tight enclosure spaces. Feature: 1 pushbutton, single-gang, with copper-free aluminum construction ensures reliability and straightforward maintenance. Business impact: improves uptime and lowers spare-parts inventory. Application: general-purpose control stations in hazardous locations, where quick access matters.
Get a Quick Quote for a Eaton Crouse-Hinds EDSC1184SA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDSC1184SA?
Enquire Now
FAQs
The EDSC1184SA is designed for hazardous/classified locations with NEC/CEC compliance and a 600 Vac rating. It uses a single-gang, through-feed enclosure and a 1/2" trade size, enabling straightforward wiring in existing control panels and new installations alike. Ensure proper enclosure seating and gasket integrity per installation instructions to maintain UL/IEC certifications.
This control station carries NEC/CEC standards with NEC hazardous ratings for Class I, II, and III divisions, and Class I, II, III locations as applicable. It is assessed for hazardous area classifications and aligns with NEMA ratings 9, 7, and 3, ensuring suitability for oil, gas, mining, and chemical environments.
EDSC1184SA is a single-gang enclosure with one pushbutton and one device. The normal position is described as a single circuit universal pushbutton configuration, with a through-feed style for streamlined wiring and panel integration in standard or retrofit installations.
Copper-free aluminum provides excellent corrosion resistance and lower maintenance needs in challenging environments. Its lighter weight eases handling during installation, and its durability supports longer service life in chemical, offshore, and outdoor locations while maintaining electrical integrity under 600 Vac operation.
The EDSC1184SA reduces downtime by offering robust, certified performance for critical control points, lowers refurbishment frequency due to corrosion resistance, and simplifies spares inventories with a standardized 1-pushbutton, 1-device configuration. Combined with through-feed wiring, it streamlines retrofits and new builds, speeding commissioning and improving overall equipment effectiveness (OEE).
