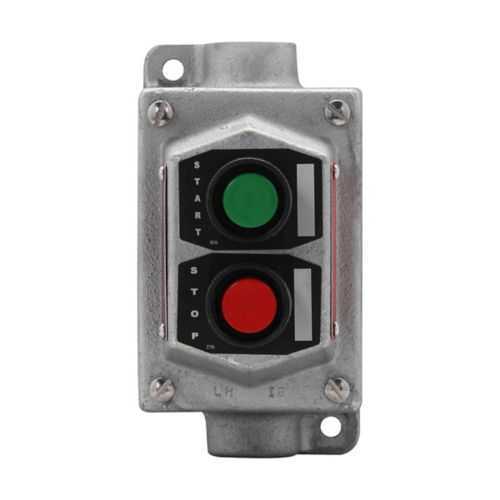

Eaton EDSC1190 Pushbutton Control Station - Hazardous
Part Number: EDSC1190
Quick Summary
The Eaton Crouse-Hinds EDSC1190 pushbutton control station is a rugged two-pushbutton unit designed for hazardous locations in industrial settings. Operators often struggle with uptime in demanding environments while navigating strict certification requirements for equipment in classified areas. This device supports NEC/CEC compliance with Class I, II, and III hazardous ratings and protective NEMA enclosures, delivering reliable operation in safety-critical panels. By combining a compact single-gang footprint with through-feed wiring and a 1/2" trade size, it offers installation efficiency and safer maintenance. For engineers and procurement teams, the EDSC1190 represents a practical balance between rugged durability, regulatory alignment, and long-term operating cost reduction.
Product Information
Extended Description
EDSC1190 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Two circuit universal, 2, Single-gang, 2, Through feed, 1/2"
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDSC1190
Product Length/Depth
3.5 in
Product Height
5.91 in
Product Width
5.81 in
Product Weight
9.08 lb
UPC
782274765433
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Number of gangs
Single-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit universal
Style
Through feed
Trade size
1/2"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EDS/EDSX Hazardous Area Control Stations catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
Eaton Specification Sheet - EDSC1190
Feature → Business Impact → Application: Two pushbuttons on a single-gang enclosure deliver local control with compact panel real estate usage, reducing panel size and wiring complexity while maintaining operator visibility in hazardous environments. This translates to faster commissioning and lower enclosure footprint in control rooms and field cabinets. Feature → Business Impact → Application: Through-feed wiring and a 1/2" trade size simplify field connections, enabling quicker installations, easier fault isolation, and straightforward future expansion in process automation cabinets. Feature → Business Impact → Application: Feraloy iron alloy construction provides rugged, corrosion-resistant protection for equipment in harsh industrial environments, increasing mean time between failures and reducing maintenance cycles in chemical plants and oil & gas facilities. Feature → Business Impact → Application: NEC/CEC compliance with Class I, II, and III ratings and NEMA 3/7/9 enclosures ensure safe operation in hazardous locations, lowering risk and ensuring regulatory alignment during audits and plant expansions. Feature → Business Impact → Application: UL certifications and compatibility with EDS/EFS families support faster procurement and streamlined spare-part strategies, reducing total cost of ownership and improving project timelines. This through-feed two-gang design also supports retrofit projects, enabling upgrades without wholesale panel replacement, a valuable consideration for aging facilities undergoing safety upgrades.
Get a Quick Quote for a Eaton Crouse-Hinds EDSC1190
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDSC1190?
Enquire Now
FAQs
The EDSC1190 is a single-gang, through-feed pushbutton control station with two pushbuttons and 1/2 in trade size. It fits standard EDS/EDSX/EFS control-station ecosystems and supports hazardous-location installations per NEC/CEC, with available UL certifications for compliance.
It offers NEC/CEC compliance with Class I, Division 1 and Division 2, Class II Division 1 and 2, and Class III ratings, along with NEMA ratings 3, 7, and 9, making it suitable for explosion-protected environments and a wide range of hazardous locations.
Yes. The device uses a Feraloy iron alloy enclosure designed for rugged, explosion-protected applications. Its classification supports hazardous-area control stations and through-feed wiring, reducing risk and enabling safer operation in hazardous zones.
Although the model is described as single-gang with two devices, its through-feed design and compact 3.5 in depth facilitate field wiring in retrofit scenarios, enabling easier replacement in existing panels without large enclosures and minimizing downtime.
The rugged Feralo y alloy construction and certified ratings reduce maintenance frequency and risk of failure in hazardous locations, lowering lifecycle costs. While initial procurement may be higher, the improved uptime and safer operation contribute to favorable ROI over the asset’s life.
