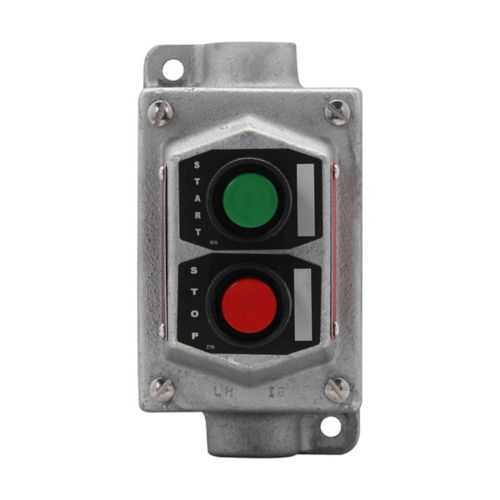

Eaton EDSC1192 Pushbutton Control Station - Hazardous Locations
Part Number: EDSC1192
Quick Summary
Eaton EDSC1192 pushbutton control station enables local control for hazardous-area machinery. In harsh industrial environments, unreliable start and stop controls slow lines and raise safety risk. It complies with NEC/CEC standards and hazardous-location approvals, including Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III, plus a rugged NEMA 3, 7, 9 enclosure for demanding facilities. The through-feed design with a 1/2 in trade size and two pushbuttons delivers straightforward installation and durable operation, enabling scalable control in hazardous facilities and reducing downtime in mission-critical applications.
Product Information
Extended Description
EDSC1192 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Two circuit universal, 2, Single-gang, 2, Through feed, 1/2", 600 Vac
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDSC1192
Product Length/Depth
3.5 in
Product Height
5.91 in
Product Width
5.81 in
Product Weight
6.58 lb
UPC
782274765440
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit universal
Style
Through feed
Trade size
1/2"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EDS/EDSX Hazardous Area Control Stations catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
Eaton Specification Sheet - EDSC1192
Feature: Through-feed single-gang enclosure simplifies wiring and panel integration → Business Impact: Reduces installation time and field wiring errors, lowering labor costs and commissioning risk → Application: Ideal for new installations or retrofits in hazardous-area panels. Feature: Two pushbuttons and two-device arrangement in a 600 Vac rated unit → Business Impact: Smooth, reliable start/stop control with high voltage handling, improving process safety and uptime → Application: Rock-solid local control for motors and related equipment in explosion-protected environments. Feature: Feraloy iron alloy construction provides rugged, corrosion-resistant housing → Business Impact: Extended service life in demanding plants, lowering replacement and maintenance costs → Application: Offshore, chemical, and mining facilities where harsh conditions prevail. Feature: NEC/CEC compliance with Hazardous/Classified Locations ratings and UL certifications → Business Impact: Simplifies regulatory audits and ensures safer operation, reducing compliance risk → Application: Critical for facilities requiring formal hazardous-location approvals. Feature: NEMA 3, 7, 9 enclosure compatibility and through-feed design → Business Impact: Enhanced environmental protection and easier field wiring → Application: Hazardous-area control stations in outdoor or harsh indoor environments. Feature: Single-gang, 1/2" trade size, two circuits universal for flexible installation → Business Impact: Enables compact control assemblies and scalable configurations while preserving wiring efficiency → Application: retrofit or new builds where space is at a premium and future expansion is anticipated.
Get a Quick Quote for a Eaton Crouse-Hinds EDSC1192
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDSC1192?
Enquire Now
FAQs
To install the EDSC1192, mount the device in a compatible single-gang enclosure designed for through-feed wiring. Run the 600 Vac supply and control wiring through the 1/2" trade-size knockout, secure the two pushbuttons and devices, and attach the faceplate. Ensure gaskets and seals are in place for hazardous locations and follow Eaton’s IF328 instructions for device bodies to complete a compliant setup.
The EDSC1192 is rated for 600 Vac, with two pushbuttons and two devices inside the enclosure. It uses a two-circuit universal normal position and a through-feed style. The combination supports reliable operator control in hazardous locations while maintaining compatibility with standard control circuits and safety interlocks typical in industrial motor control applications.
Yes. The EDSC1192 carries NEC/CEC compliance with hazardous-location ratings that cover Class I Division 1 and Division 2, Class II Division 1 and 2, and Class III. It is designed for area classifications in hazardous/classified locations and is compatible with explosion-proof control-station requirements, supported by UL certifications for hazardous environments.
The EDSC1192 meets NEC/CEC standards and hazardous-location approvals, including UL certification references for explosion-proof components. It also carries NEMA ratings of 3, 7, and 9, which indicate suitability for weather exposure, arcing, and high-level protection in hazardous environments, helping with regulatory audits and project approvals.
Durable Feraloy iron alloy construction and a robust enclosure minimize corrosion and wear, reducing replacement cycles. The through-feed design simplifies wiring and future expansions, lowering commissioning and maintenance costs. Compatibility with the EDS/EFS explosion-proof family enables standardized spares and services, delivering improved uptime and a faster return on investment for hazardous-location control systems.
