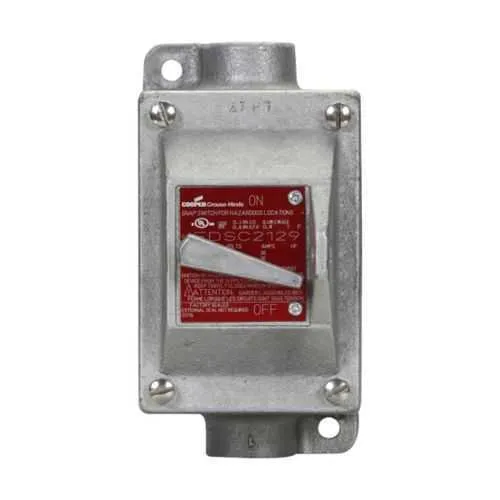

Eaton EDSC2140 Snap Switch Control Station - HazLoc

Part Number: EDSC2140
EDSC2140
Manufacturer
Eaton Crouse-Hinds
Part number
EDSC2140
Category

Quick Summary

Eaton EDSC2140 Snap Switch control station provides rugged 20A control for hazardous locations in industrial equipment. Engineers often wrestle with sealed enclosures and wiring integrity in Class I/Division 1 environments, risking unplanned downtime. This model delivers NEC/CEC compliance and hazardous/classified location ratings, plus NEMA 3, 7, and 9 enclosure protection for safety-critical applications. Its through-feed, factory-sealed design with two 3/4" hubs supports fast, scalable wiring, reducing install time and error potential. For OEMs and panel builders, the result is improved reliability, easier maintenance, and long-term cost savings through safer, compliant control stations.

Product Information

Extended Description

EDSC2140 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS snap switch control station, 20A, With switch, With two 3/4" hubs, Feraloy iron alloy, 1, Single-gang, Four-pole, 120-277V, Factory sealed, Through feed, 4-way, 3/4", 120-277 Vac
Product Name
Eaton Crouse-Hinds series EDS snap switch control station
Catalog Number
EDSC2140
Product Length/Depth
5.06 in
Product Height
5.875 in
Product Width
3.5 in
Product Weight
8.7 lb
UPC
782274765648
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With switch
Trade size
3/4"
Number Of Poles
Four-pole
Switch function
4-way
Number of gangs
Single-gang
Style
Through feed
Voltage rating
120-277 Vac
Amperage Rating
20A
Hub style
With two 3/4" hubs
Number of devices
1
Primary voltage range
120-277V
Material
Feraloy iron alloy
Special features
Factory sealed
EDS and EDSX Fully Assembled Snap Switches catalog page EDS and EFD Explosionproof Snap Switches Canadian certification - snap switches EDS and EFD Explosionproof Snap Switches Canadian certification - snap switches EDS and EFD Explosionproof Snap Switches Canadian certification - snap switches EDS and EFD Explosionproof Snap Switches Canadian certification - snap switches IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies Eaton Specification Sheet - EDSC2140
Through-feed wiring and hub-enabled access are core efficiency drivers for control stations. The EDSC2140 offers two 3/4" hubs and a through-feed design that streamlines field connections, reduces ingress risk, and speeds installation in panel boards. With a single-gang, four-pole, 4-way configuration, technicians can route power and control lines cleanly, supporting complex machine logic without crowding the enclosure. The robust enclosure and factory sealing deliver reliable operation in even harsh environments, minimizing maintenance cycles and safeguarding personnel. Feraloy iron alloy construction adds ruggedness suitable for demanding plants, while the 120-277V, 20A rating supports widespread equipment compatibility across industrial floors. Compatibility with the EDS family simplifies spares, and the clear NEC/CEC and NEMA ratings ensure regulatory alignment and lower total cost of ownership for integrators.

Get a Quick Quote for a Eaton Crouse-Hinds EDSC2140

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EDSC2140? Enquire Now

FAQs

The EDSC2140 is designed to integrate with Eaton’s snap switch family, featuring a single-gang, four-pole, four-way configuration and two 3/4" hubs for through-feed wiring. It supports through-feed field connections and aligns with EDS/EDSX installation practices, enabling straightforward panel upgrades or replacements with minimal wiring changes.
EDSC2140 carries NEC/CEC standards compliance and Hazardous/Classified Locations ratings, including Class I Division 1 and 2, Class II Division 1 and 2, and Class III. It also features NEMA ratings 3, 7, and 9. These certifications matter because they govern safe operation in hazardous environments, ensuring regulatory alignment and reducing compliance risk for installation in oil, chemical, and other high-hazard facilities.
Factory sealing and the rugged Feraloy iron alloy construction protect internal switching components from dust, moisture, and explosive atmospheres. The through-feed design simplifies wiring, reducing field connections that could fail, while the compact single-gang footprint minimizes enclosure space usage. Together, these features lower maintenance needs, extend service life, and improve operator safety in demanding plants.
EDSC2140 supports 20A current with a voltage rating of 120-277 Vac. It is a four-pole, four-way switch in a single-gang enclosure, with two 3/4" hubs for through-feed wiring. This combination enables flexible, robust control configurations across a wide range of industrial equipment and downstream safety circuits.
Installation guidance includes IF328 instruction sheets and the Eaton specification sheet for EDSC2140. Additional resources cover catalog pages for EDS/EDSX snap switches and Canadian certifications. Access to these documents helps ensure correct installation, compliance verification, and streamlined maintenance planning for hazardous-location applications.
