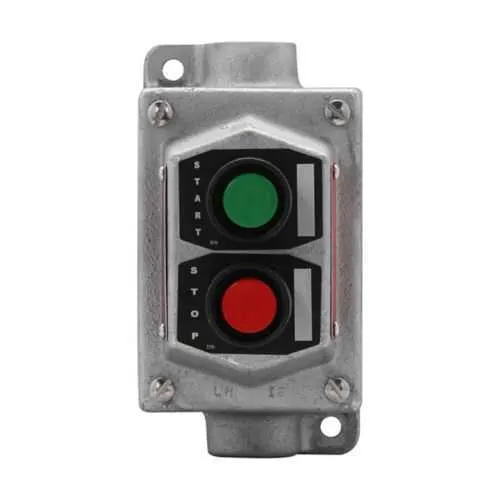

Eaton EDSC2155 Pushbutton Control Station - Hazardous
Part Number: EDSC2155
Quick Summary
EDSC2155 pushbutton control station by Eaton Crouse-Hinds enables safe, reliable control in hazardous locations. In demanding industrial settings, operators struggle with downtime during maintenance and fault isolation. This unit carries NEC/CEC compliance, hazardous-location ratings for Class I and II divisions, and a robust NEMA enclosure to protect critical operations. With through-feed wiring, 3/4 in trade size and 600 Vac rating, it integrates easily with existing systems, delivering uptime, safety, and scalable control for your plant's safety-critical circuits.
Product Information
Extended Description
EDSC2155 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Two circuit, 2, Single-gang, 2, Through feed, 3/4", 600 Vac
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDSC2155
Product Length/Depth
3.5 in
Product Height
5.91 in
Product Width
5.81 in
Product Weight
8 lb
UPC
782274765655
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit
Style
Through feed
Trade size
3/4"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EDS/EDSX Hazardous Area Control Stations catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
Eaton Specification Sheet - EDSC2155
Rugged construction using a Ferrolay iron alloy (Feraloy iron alloy) delivers outstanding durability in tough environments, reducing maintenance costs and downtime in explosion-prone areas. The result is longer service life and lower replacement expense for critical control hardware used in motors, valves, and process interlocks. Two pushbuttons and two devices are housed in a single-gang, through-feed enclosure, saving panel space while simplifying wiring and installation for faster commissioning. With a 3/4 inch trade size and 600 Vac rating, this unit supports high-power loads and easy retrofits into existing systems, minimizing design changes and conduit runs. NEC/CEC compliance plus Class I, II, and III hazardous location ratings and NEMA 3, 7, 9 protection provide regulatory assurance and durable enclosure protection against dust, moisture, and blasts. Comprehensive documentation, including catalogs, 3D design packages, and installation sheets, accelerates procurement, reduces errors, and shortens time to operation in plant environments.
Get a Quick Quote for a Eaton Crouse-Hinds EDSC2155
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDSC2155?
Enquire Now
FAQs
The EDSC2155 is designed for single-gang, through-feed installations with a 3/4 inch trade size. Verify NEC/CEC compliance and Class I/II/III ratings for your specific location. Use installation sheets and catalog pages to select compatible enclosures and conduit fittings, and follow UL/CSA guidelines during wiring and sealing to maintain explosion-protection integrity.
This control station features two pushbuttons and two devices in a single-gang enclosure, for a total of two circuits. It is rated at 600 Vac and uses a through-feed wiring arrangement. The high-power rating supports motor and actuator control, while the compact form factor simplifies panel coil layouts and improves wiring efficiency in hazardous environments.
Yes. The EDSC2155 is explicitly designed for single-gang, through-feed configurations with a 3/4" trade size. This makes retrofits and new installations easier, reduces wiring complexity, and helps maintain a clean, compliant enclosure suitable for hazardous locations with limited space.
The device carries NEC/CEC standards for hazardous locations, with Class I, Division 1 and 2, Class II Division 1 and 2, and Class III ratings. It also aligns with NEMA ratings 3, 7, and 9, ensuring enclosure protection against environmental factors and blast hazards in industrial settings.
The rugged Ferroloy iron alloy construction and explosion-proof design minimize downtime and replacement costs in hazardous areas. Regulatory compliance (NEC/CEC) reduces inspection risk, while documented installation resources shorten commissioning time. Overall, users typically see lower maintenance labor hours, safer operations, and faster project delivery when deploying these pushbutton control stations.
