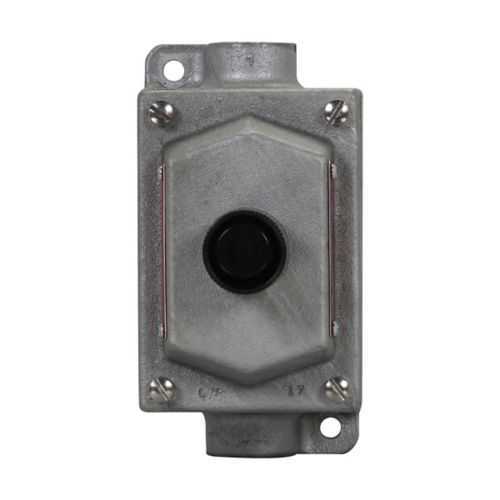

Eaton EDSC2184 EDS Pushbutton Control Station - Hazardous Locations
Part Number: EDSC2184
Quick Summary
EDS pushbutton control station is a rugged solution for local control of equipment in hazardous locations. It helps operators quickly reset, isolate, or start machines in demanding environments without compromising safety or reliability. This unit carries NEC/CEC compliance and hazardous-location ratings including Class I, Division 1 and Division 2, Class II, Division 1 and 2, Class III, along with NEMA 3, 7, and 9 enclosure protection. By combining a single-gang footprint with a 600 Vac rating and a through-feed design, it simplifies installation and reduces wiring time. The result is lower lifecycle costs, improved maintenance predictability, and safer operations in chemical plants, oil and gas facilities, and mining operations.
Product Information
Extended Description
EDSC2184 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Single circuit universal, 1, Single-gang, 1, Through feed, 3/4"
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDSC2184
Product Length/Depth
6.72 in
Product Height
5.81 in
Product Width
3.5 in
Product Weight
8.5 lb
UPC
782274765679
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
1
Number of devices
1
Normal position
Single circuit universal
Style
Through feed
Trade size
3/4"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EDS/EDSX Hazardous Area Control Stations catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
IF 372 - EDS Notice
IF 372 - EDS Notice
IF 372 - EDS Notice
Eaton Specification Sheet - EDSC2184
Hazardous-location readiness → NEC/CEC compliance and hazard ratings—including Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III—translate into safer, auditable installations. The integrated protection ensures ignition control and enclosure integrity under demanding conditions, reducing regulatory risk and avoiding costly non-conformance events. Application breadth spans chemical plants, oil refineries, mining sites, and other industrial environments where reliable control stations protect personnel and equipment. Dur able enclosure and materials → Feraloy iron alloy enclosure delivers rugged arc resistance and corrosion protection, safeguarding internal components. This material choice extends service life, lowers maintenance cycles, and reduces unexpected downtime. Applications include offshore platforms, refineries, and underground facilities where exposure to dust, moisture, and heat is constant. Electrical specification and footprint → 600 Vac rating covers many industrial power systems; single-gang, 3/4" trade size; 1 pushbutton, 1 device; through-feed design simplifies wiring and conduit connections, speeding panel integration. By consolidating functions into a compact footprint, it minimizes panel space and simplifies spare parts inventory. Applications: new builds, upgrades, and retrofit projects in hazardous locations that demand space efficiency and reliable operation. Installation and compatibility → Through-feed format and standard dimensions support quick wiring and panel compatibility with Eaton’s EDS/EDSX control-station family. The design simplifies mounting and field wiring, reducing installation errors and training requirements. This station integrates with existing control systems in hazardous-area projects with minimal modification. Documentation and support → Full suite of downloads including SP3D design packages, catalog pages, UL certification reports, IF notices, and the Eaton specification sheet. Accelerates design reviews, ensures regulatory traceability, and improves maintenance planning for long-term serviceability.
Get a Quick Quote for a Eaton Crouse-Hinds EDSC2184
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDSC2184?
Enquire Now
FAQs
For safe, compliant installation in hazardous areas, confirm classification (Class I/II/III), Division 1 or 2, and ensure the enclosure meets NEMA 3/7/9. Use through-feed wiring and a 3/4" trade size to simplify conduit routing. The unit's single-gang footprint fits standard panels while maintaining robust protection and arc resistance.
Yes. The EDSC2184 is rated for 600 Vac, single-gang installation with one pushbutton. Its through-feed design and compact form factor enable straightforward integration into high-voltage control schemes while maintaining compliance with NEC/CEC in hazardous locations.
The EDSC2184 carries NEC/CEC compliance, Hazardous/Classified Locations ratings including Class I Division 1 and 2, Class II Division 1 and 2, Class III, and NEMA protection ratings 3, 7, and 9. UL certification is documented for explosion-proof use in hazardous environments.
Through-feed wiring simplifies conduit connections and reduces field modification. The 3/4" trade size and single-gang footprint streamline panel design, minimize wiring complexity, and speed up commissioning, especially in retrofit projects or busy chemical and refining facilities.
A full documentation suite is available, including SP3D design packages, catalog pages, UL certification reports, installation instructions, and the Eaton specification sheet. Access to datasheets and notices supports accurate sourcing, regulatory traceability, and proactive maintenance planning.
