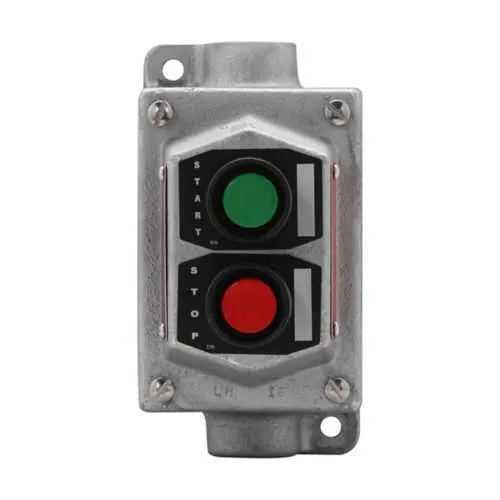

Eaton EDSC2192 Pushbutton Control Station - 600 Vac
Part Number: EDSC2192
Quick Summary
Eaton EDSC2192 pushbutton control station is designed to provide rugged start/stop control in hazardous-area installations. Operators and maintenance teams often grapple with unreliable, non-compliant enclosures that fail under harsh conditions or frequent use. This device carries NEC/CEC compliance and hazardous-location ratings, including Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III, plus NEMA 3, 7, 9 protection — delivering safer, more maintainable control. The combination of through-feed wiring, 3/4" trade size, and a two-pushbutton, two-device configuration supports efficient panel design, reduced downtime, and smoother procurement for oil & gas, chemical processing, and mining facilities. In short, it adds reliability, safety, and long-term value to critical control circuits.
Product Information
Extended Description
EDSC2192 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Two circuit universal, 2, Single-gang, 2, Through feed, 3/4", 600 Vac
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDSC2192
Product Length/Depth
3.5 in
Product Height
5.91 in
Product Width
5.81 in
Product Weight
8.92 lb
UPC
782274765693
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit universal
Style
Through feed
Trade size
3/4"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EDS/EDSX Hazardous Area Control Stations catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
IF 372 - EDS Notice
IF 372 - EDS Notice
IF 372 - EDS Notice
Eaton Specification Sheet - EDSC2192
Feature: Feraloy iron alloy enclosure provides explosionproof integrity in hazardous locations. Business Impact: Enhances operator safety and minimizes enclosure wear in tough environments. Application: Ideal for heavy-duty control stations in petrochemical plants and mining sites. The rugged material supports long service life and reduces maintenance costs while meeting stringent safety standards. Feature: Through-feed, single-gang enclosure with 3/4" trade size. Business Impact: Simplifies wiring and installation, enabling quicker panel assembly and easier field retrofits. Application: Suitable for compact control panels where space and routing efficiency matter. This design lowers installation labor and potential wiring errors. Feature: Two pushbuttons, two devices, normal position set to two circuit universal. Business Impact: Increases control flexibility and reduces the need for additional devices, cutting spares and commissioning time. Application: Frequently used in start/stop and circuit-selection scenarios in process lines and conveyors. Feature: 600 Vac voltage rating with hazardous-location ratings (NEC/CEC). Business Impact: Ensures compatibility with high-voltage circuits while maintaining compliance with safety regulations. Application: Supports critical motors, actuators, and interlocks in hazardous environments, reducing risk and downtime. Feature: NEMA ratings 3, 7, 9 and comprehensive certifications. Business Impact: Streamlines procurement and certification processes, lowering project risk and approval time. Application: Suitable for offshore platforms, chemical plants, refineries, and mining facilities where robust protection is required. Feature: Catalog pages and design resources provided by Eaton (SP3D packs, EDS/EDSX catalog pages, installation sheets). Business Impact: Accelerates design validation and project handoffs with readily available documentation. Application: Helps engineering teams verify compatibility and compliance during procurement and integration.
Get a Quick Quote for a Eaton Crouse-Hinds EDSC2192
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDSC2192?
Enquire Now
FAQs
EDSC2192 uses a single-gang enclosure with a 3/4" trade size and through-feed wiring, featuring two pushbuttons and two devices. The Feraloy iron alloy enclosure resists harsh environments, enabling safe operation in Class I/II/III locations and reducing field modification needs. This design supports quick installation and reliable long-term performance in hazardous-area control stations.
The EDSC2192 carries NEC/CEC standards with NEC hazardous ratings across Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III, along with NEMA ratings 3, 7, and 9. It is designed for Hazardous/Classified Locations and verified for explosionproof operation, aiding compliance in oil, gas, and chemical processing facilities.
This pushbutton control station is suitable for hazardous locations such as petrochemical plants, oil and gas facilities, chemical processing sites, and mining operations. Its explosionproof construction and 600 Vac rating enable safe control of high-energy equipment in demanding environments while meeting regulatory requirements.
Key features include a two-pushbutton, two-device configuration in a single-gang, 3/4" trade-size enclosure cast in Feraloy iron alloy, and a 600 Vac rating. Benefits include enhanced safety and reliability, easier installation with through-feed wiring, reduced spare parts, and improved project timelines due to comprehensive NEC/CEC compliance and readily available documentation.
Eaton provides multiple resources for EDSC2192, including 3D design packages, hazardous-area control station catalogs, installation instruction sheets, and a dedicated specification sheet. These documents support design validation, procurement, and field installation, helping engineers confirm compatibility and maintain regulatory compliance during project execution.
